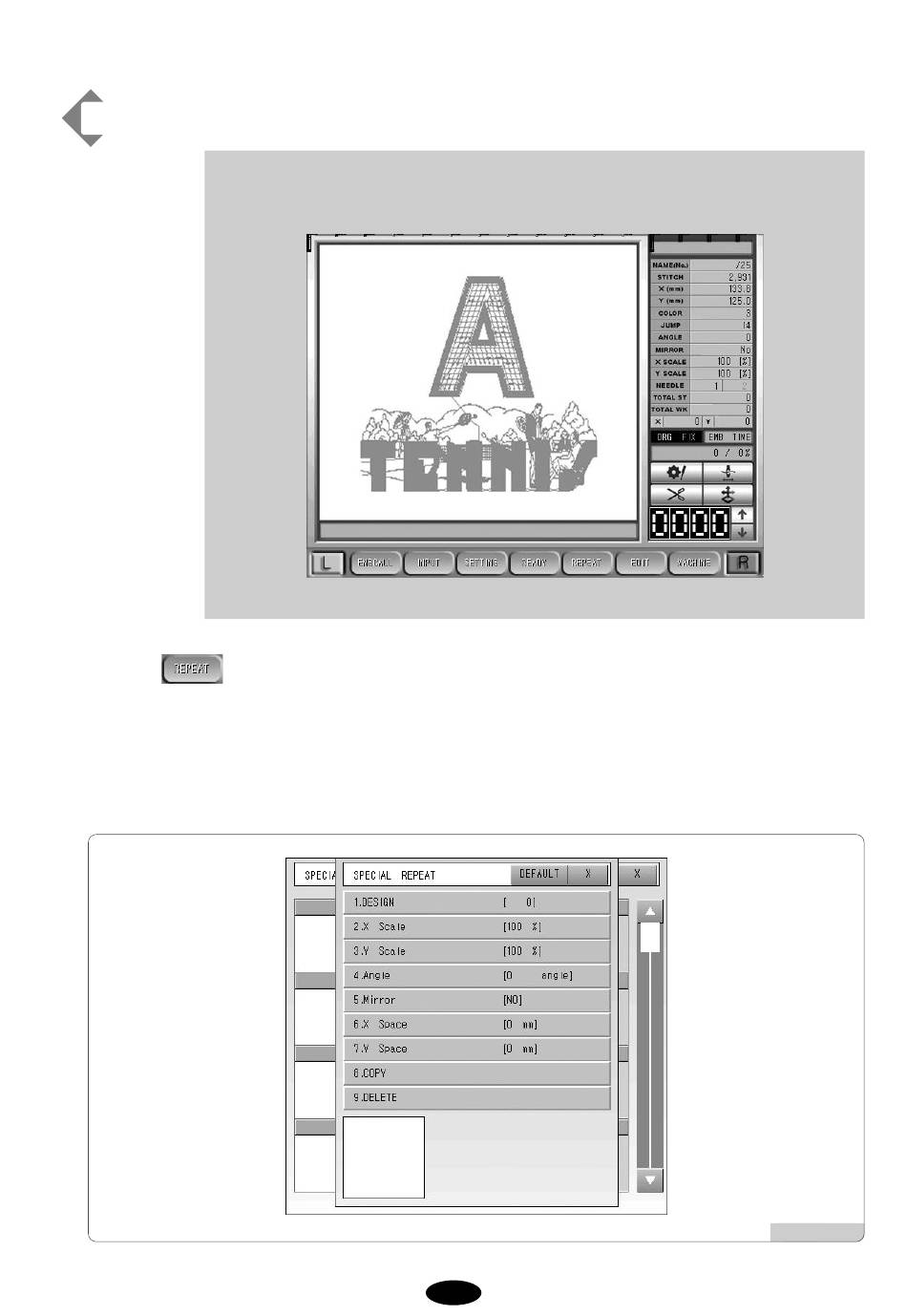

[Ex.5.11.2-1] Performing special repeat on designs #47 and #48 to make [Fig.5.11.2-2]
Design #47: X_Scale 150%, Y_Scale 150%
Design #48: X_Scale 200%, Y_Scale 200%
1⃞ Press
in the main function menu and select Special Repeat.
You will see screen like [Fig.5.11.2-1].
2⃞ Select 1 and you will see setting menu as in [Fig.5.11.2-1].
As in [Figure 5.11.2-3], the setup screen appears.
[Fig.5.11.2-2]
5 5 - - 8 8 1 1
[Fig.5.11.2-3]
