SWF Dual Function E Series User Manual page 114

3⃞ Select "1. Design" in [Fig.5.11.2-3].
EMB CALL will appear.
4⃞ Move to design #47 using the scroll bar.

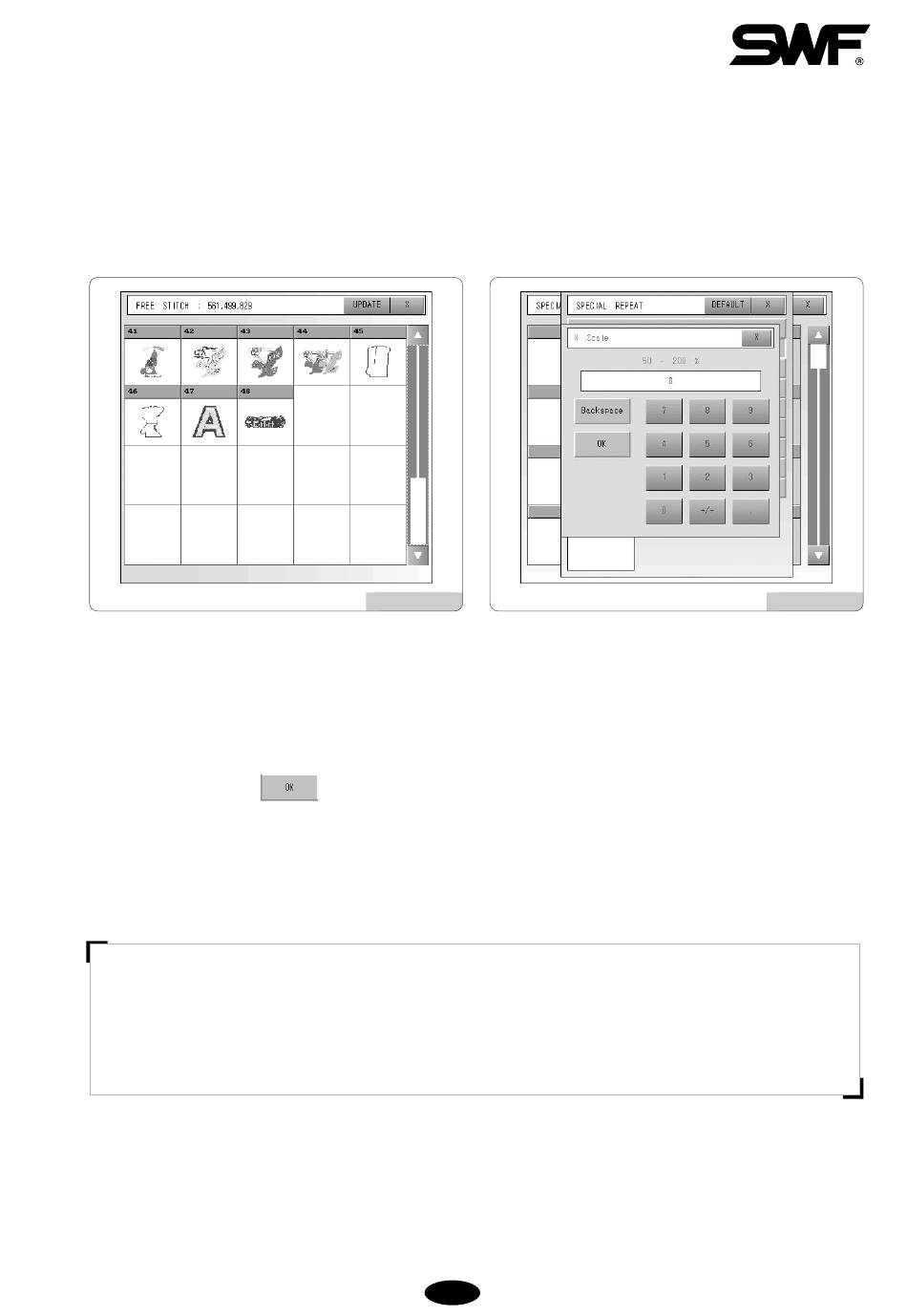

You will see [Fig.5.11.2-4].
5⃞ Select design #47 in [Fig.5.11.2-4]
6⃞ Select "2. X Scale" in [Fig.5.11.2-3] and you will see a screen like [Fig.5.11.2-5].
7⃞ Input 150 and press
8⃞ Select "3. Y Scale" in [Fig.5.11.2-3] and input 150
(Do not set 4. Angle or 5. Mirror).
[NOTE]
When merging the designs, you don't set 6. X Space or 7. Y Space for the first design. The first design is of
reference, relative to which the position changes by X Space and Y Space of the second design. It is difficult
to capture X Space and Y Space of the second design at once. You will have to adjust a number of times to
get the desired position.
[Fig.5.11.2-4]
.
5 5 - - 8 8 2 2
[Fig.5.11.2-5]
