※Power-on of 2×2 Embroidery Machine or Above
① Lift the NFB switch in the middle as in <Fig. 2.1-2>.
② Press the green power switch on the NFB switch.
③ If the left and right emergency switches are on, the power is supplied to the left and right sides as well. If the
emergency switch is off, the LCD on the side where the emergency switch is off will not be turned on.
④ Use the frame move key to check the frame motion or check the basic motion of the frame with reference to
"5.11.3 Motion Test."
MC with OFF-status (unpressed status by spinning clockwise) of right/left emergency switches is only
operating. The MC with ON-status (pressed status) is not working.
[REFERENCE]
How to turn on the power when you turn off the MC1 or MC2 power by pressing emergency switch during or
before stitching (Refer to <figure 2. 1-2>)
①The power is off when you press the emergency switch of MC1 or MC2 during or before stitching.
② To turn on the MC1 or MC2 again, set the ON-status emergency switch (pressed status) to the OFF-status (unpressed
status by spinning clockwise).
③ The power of MC1 or MC2 is on and then the exiting stitch work appears on the LCD.
④ Restart stitching after check out the readiness of stitch work.
[WARNING]
Make sure to turn off the NFB switch or pull out the power plug during A/S service. If only one side is turned
on and the other side is turned off, it is still required that the both sides shall be turned off for A/S service.
OP Box
emergency green power
switch switch
2 2 - - 2 2
NFB emergency
switch switch

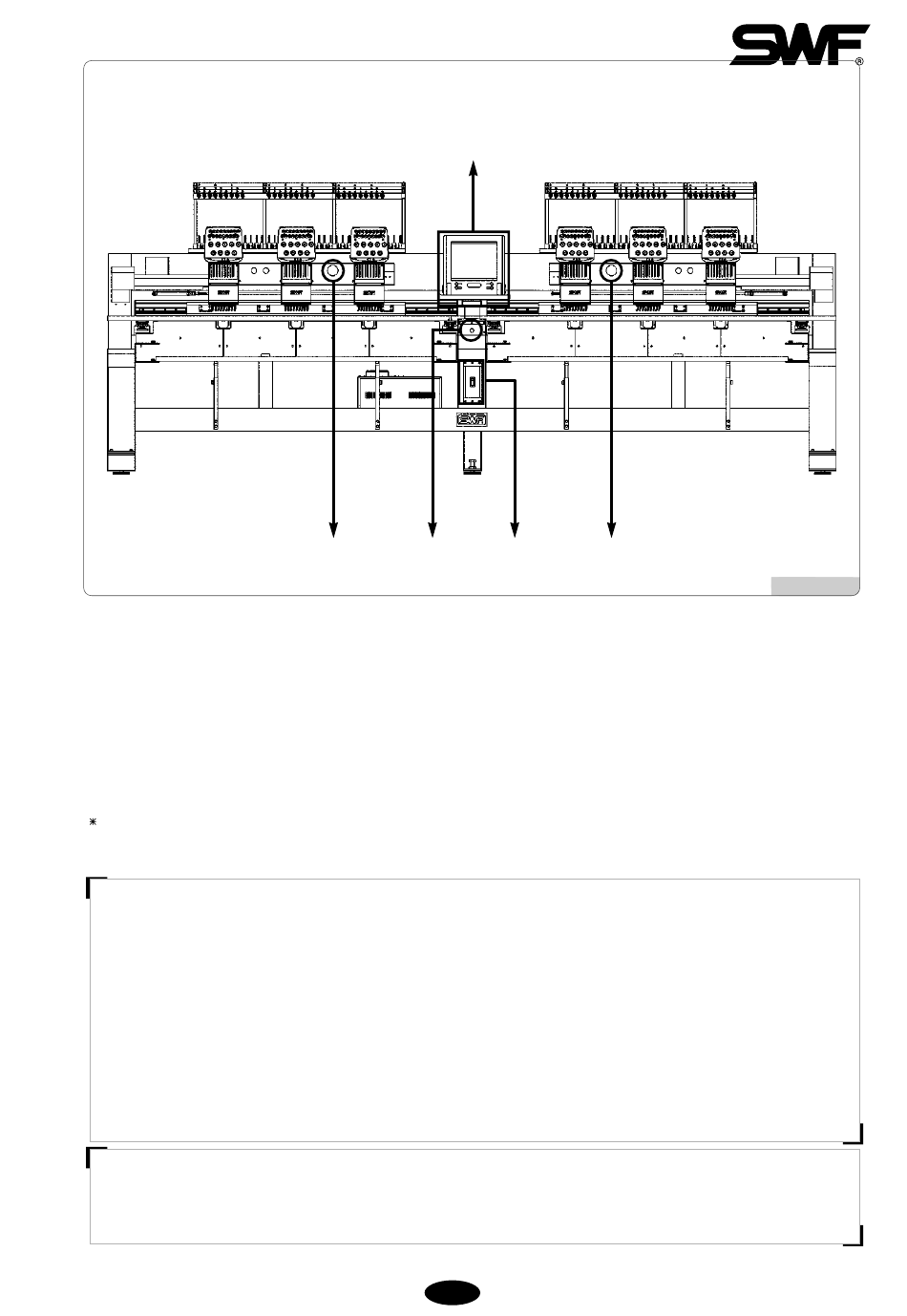

[Fig.2.1-2]
