(3) NEEDLE COLOR
It shows information related to needle bar (color) change on the design by distinguishing each needle bar with a
color. The colors displayed on the screen are not the colors used in the embroidery. As illustrated in [Fig.5.9.4-14]
the colors will turn on when you press the needle bar.

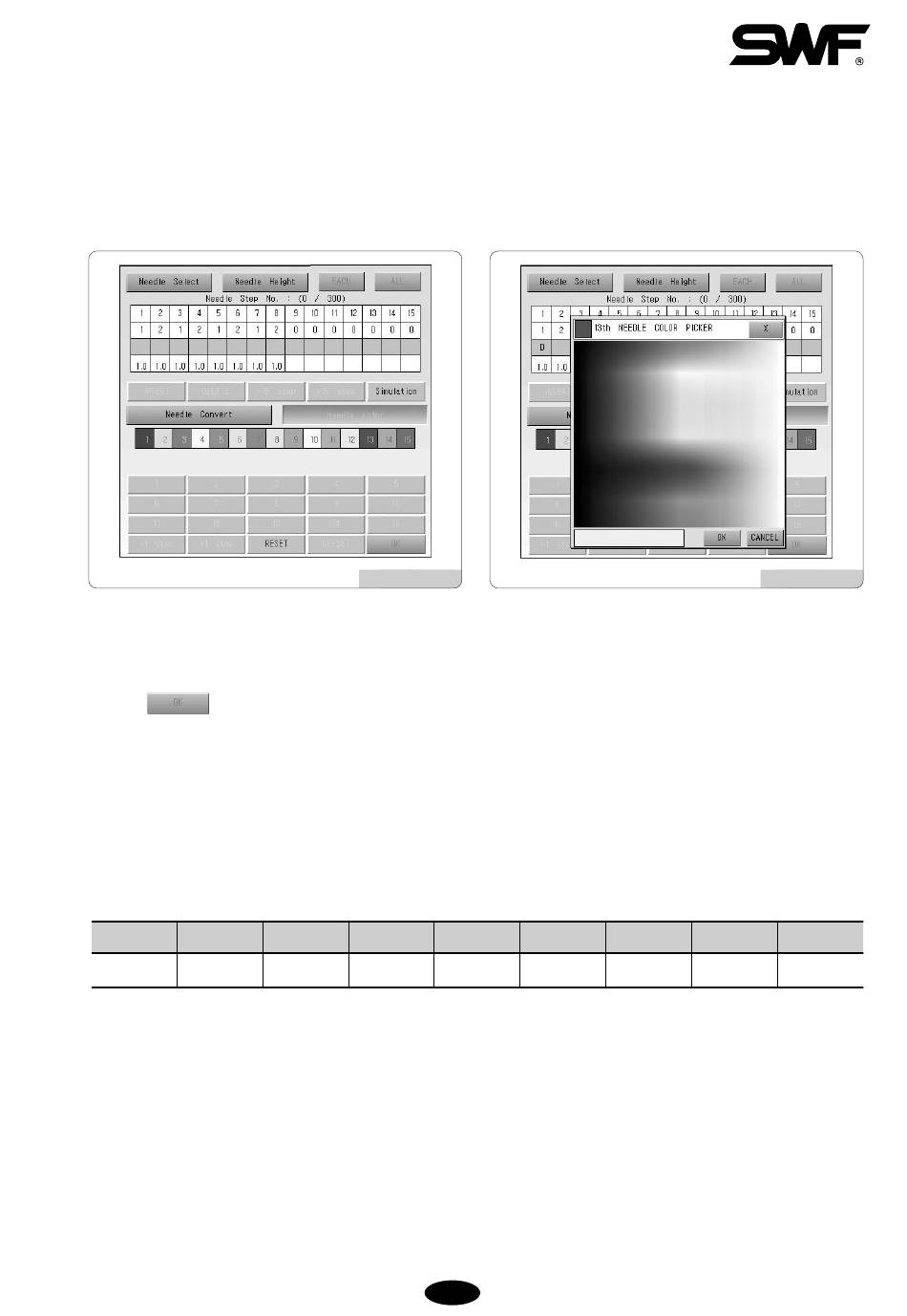

Select the desired needle bar and you will see a screen where you can select a color as shown in [Fig.5.9.4-15].
Select the desired color and the color bar below will show the color of your selection. If you like the color selection,
press .
(4) CHANGING NEEDLE BAR PF HEIGHT
Changing needle bar PF height is the function of adjusting the PF height at the selected needle bar (applicable to
Dual DM series only).
Default value of a selected needle bar height is 1.0mm, and it can be adjusted in the range of 0.5mm~4.5mm.
No.1 key No.2 key
0.5mm 1.0mm
Refer to the example below for details.
[Fig.5.9.4-14]
No.3 key No.4 key
1.5mm 2.0mm
5 5 - - 4 4 7 7
No.5 key No.6 key No.7 key
2.5mm 3.0mm
[Fig.5.9.4-15]
No.8 key No.9 key
3.5mm 4.0mm 4.5mm
