7.2.2 I/O Board, X/Y Driver Board Dip Switch Setting

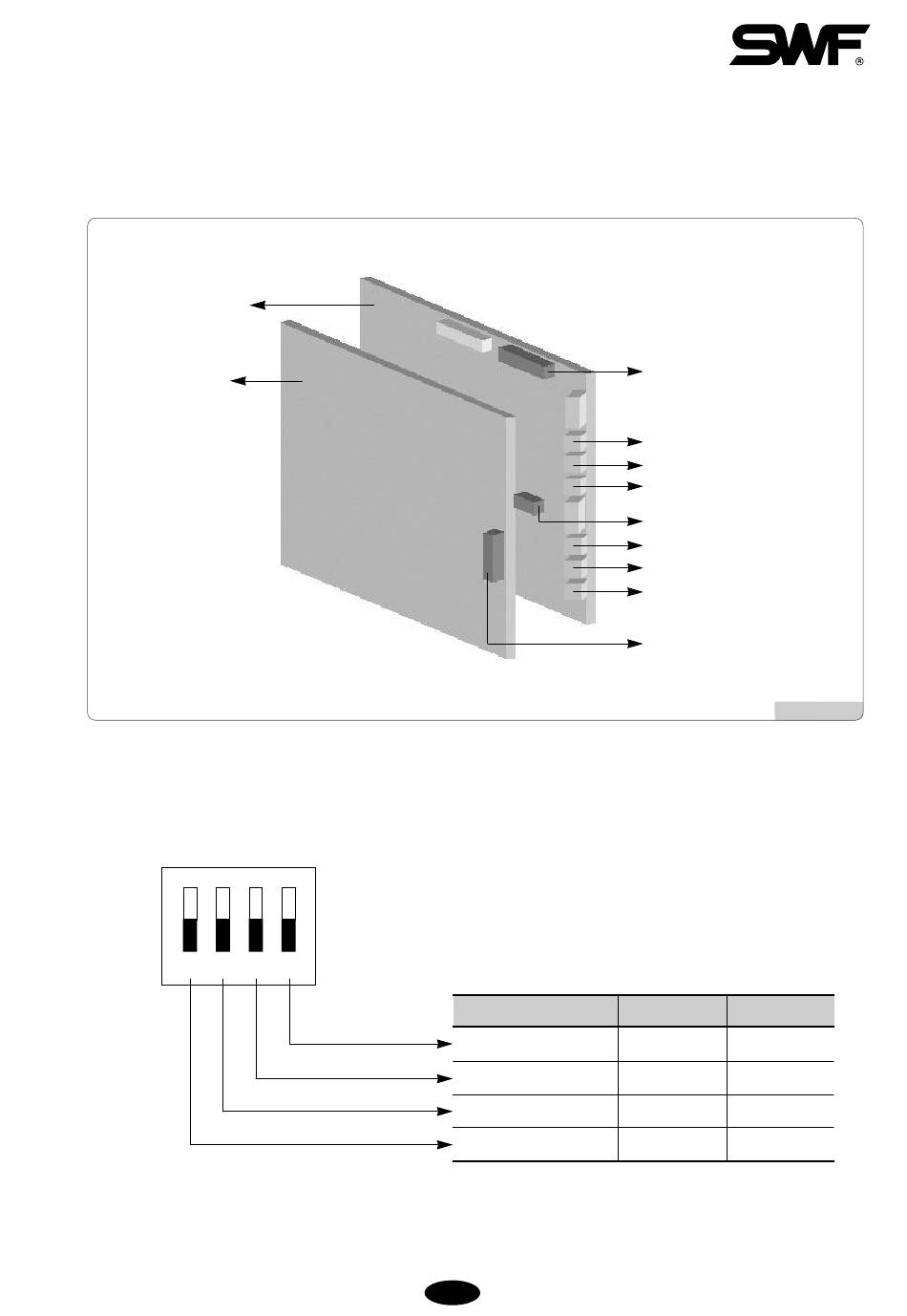

<Fig. 7.2.2-1> shows the I/O, XY Driver Board of MC1 and MC2. For more information on the location of the board,
see "7.2.1 Rear Side of Control Box".
① XY Driver Board
② I/O Board
① XY Driver Board
② I/O Board
③ I/O Board Dip Switch
ON
OFF
1 2 3 4
7 7 - - 7 7
Functions
CAN I/D Setting
Reserved
Reserved
Reserved
④ X Driver Board Dip SW
⑥ X Driver Board Rotary SW1
⑦ X Driver Board Rotary SW2
⑧ X Driver Board Rotary SW3
⑤ Y Driver Board Dip SW
⑨ Y Driver Board Rotary SW4
⑩ Y Driver Board Rotary SW5
⑪ Y Driver Board Rotary SW6
③ I/O Board Dip SW
[Fig.7.2.2-1]
OFF ON
MC1 MC2
– –
– –
– –
