5.12.4 Design zoom in

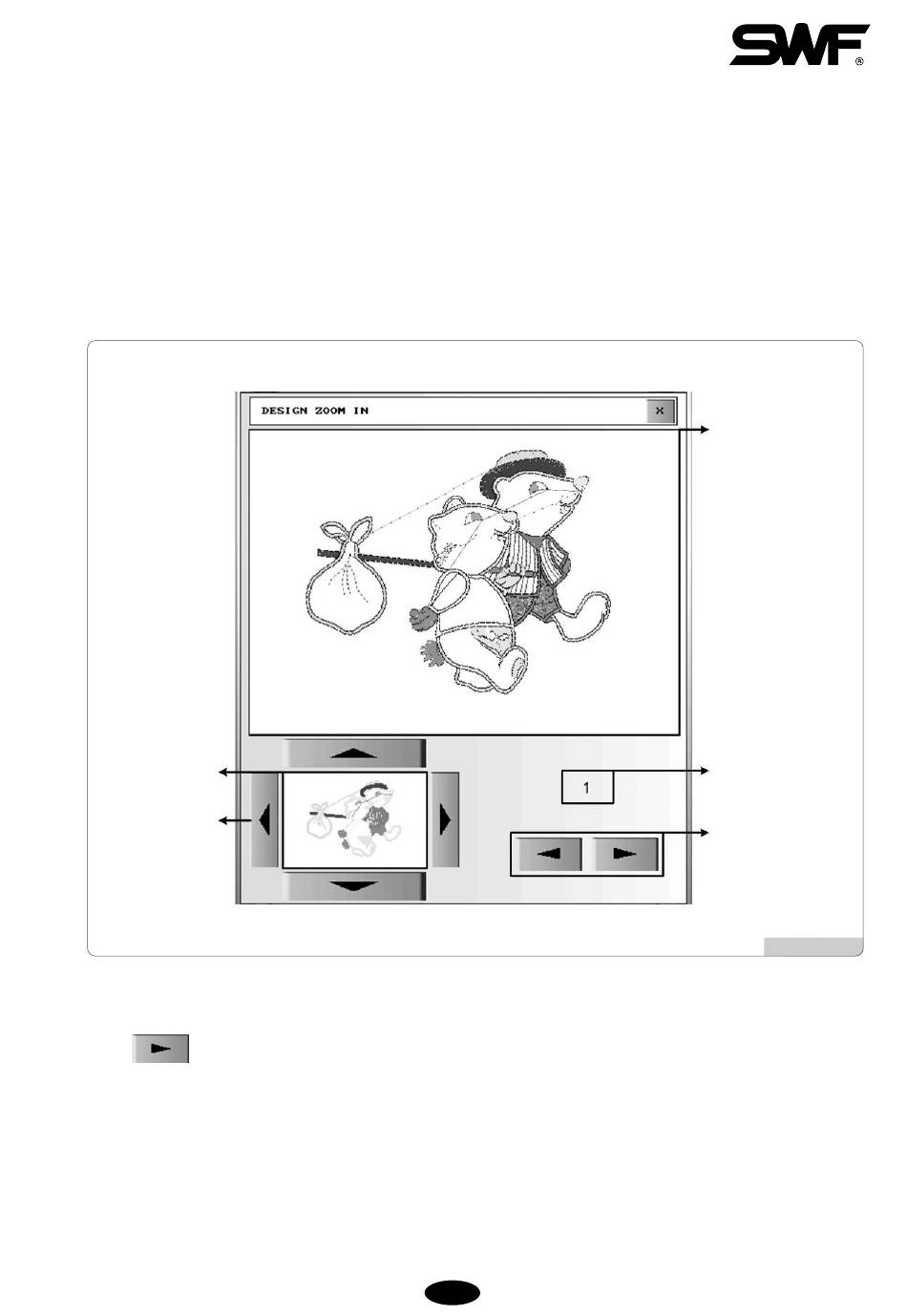

[Fig.5.12.4-1] shows selection of Design Zoom In.
There are two screens: design zoom and position adjustment. Design zoom screen shows you the enlarged version of
the design. In the position adjustment screen, you can press anywhere on the screen and that part will be zoomed in.
You can also use a key to select the desired part.
You can zoom in up to 100 times in the unit of 1 time.
Adjustment
Position Screen
Adjustment
Position Button
The screens below are *2, *3, *5, *10, *20, *30, and *50 times zoom in of the design in [Fig.5.12.4-1].
Press on the Magnification Increase/Decrease Button, and you will see the design enlarged.
5 5 - - 1 1 0 0 0 0
Design
Enlargement
Screen
Magnification Indication
Magnification
Increase/Decrease Button
[Fig.5.12.4-1]
