Design Filtering - SWF Dual Function E Series User Manual

5.12.3 Design filtering

Thread breaks can occur frequently if the distance between two stitches is too short (0.1-0.3mm). By Design Filtering,
stitches shorter than the pre-set length are merged with the immediately next stitches. This function makes all stitches in
the design longer than the pre-set length and thereby prevents thread break.

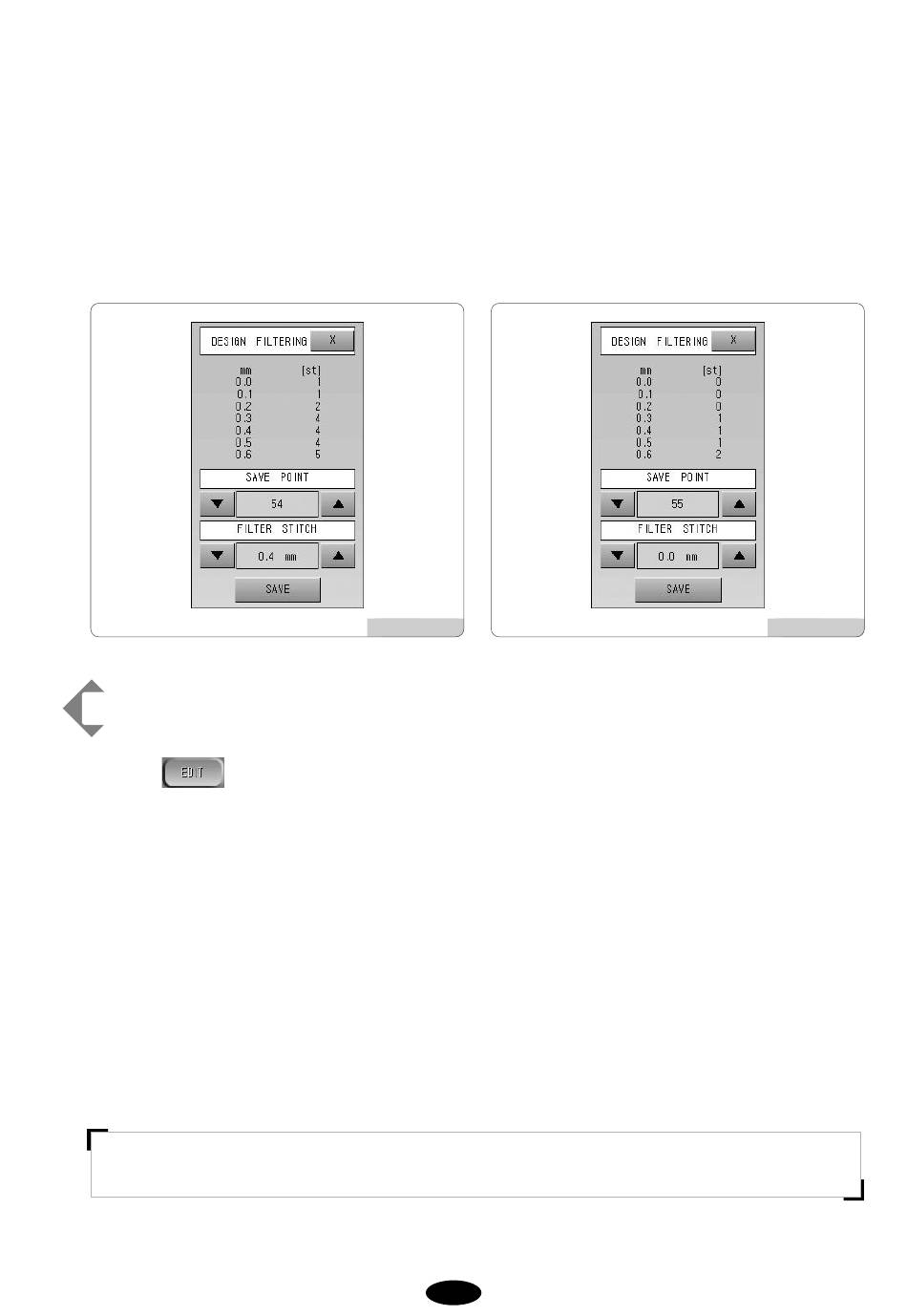

[Fig.5.12.3-1] shows selection of Design Filtering.
[Ex.5.12.3-1] Setting parameters so that stitches under 0.3mm are not made
1⃞ Select in the main function menu.
2⃞ Select Design Filtering in the sub menus.
3⃞ Check if there are any stitches under 0.3mm.
4⃞ If there is, select 0.4mm.
5⃞ Select memory room and press SAVE.
[Fig.5.12.3-2] shows checking the filtered design by calling it from the memory.
[NOTE]
Not all stitches were filtered in the example [Fig.5.12.3-2]. Design filtering is not applied to all stitches.
