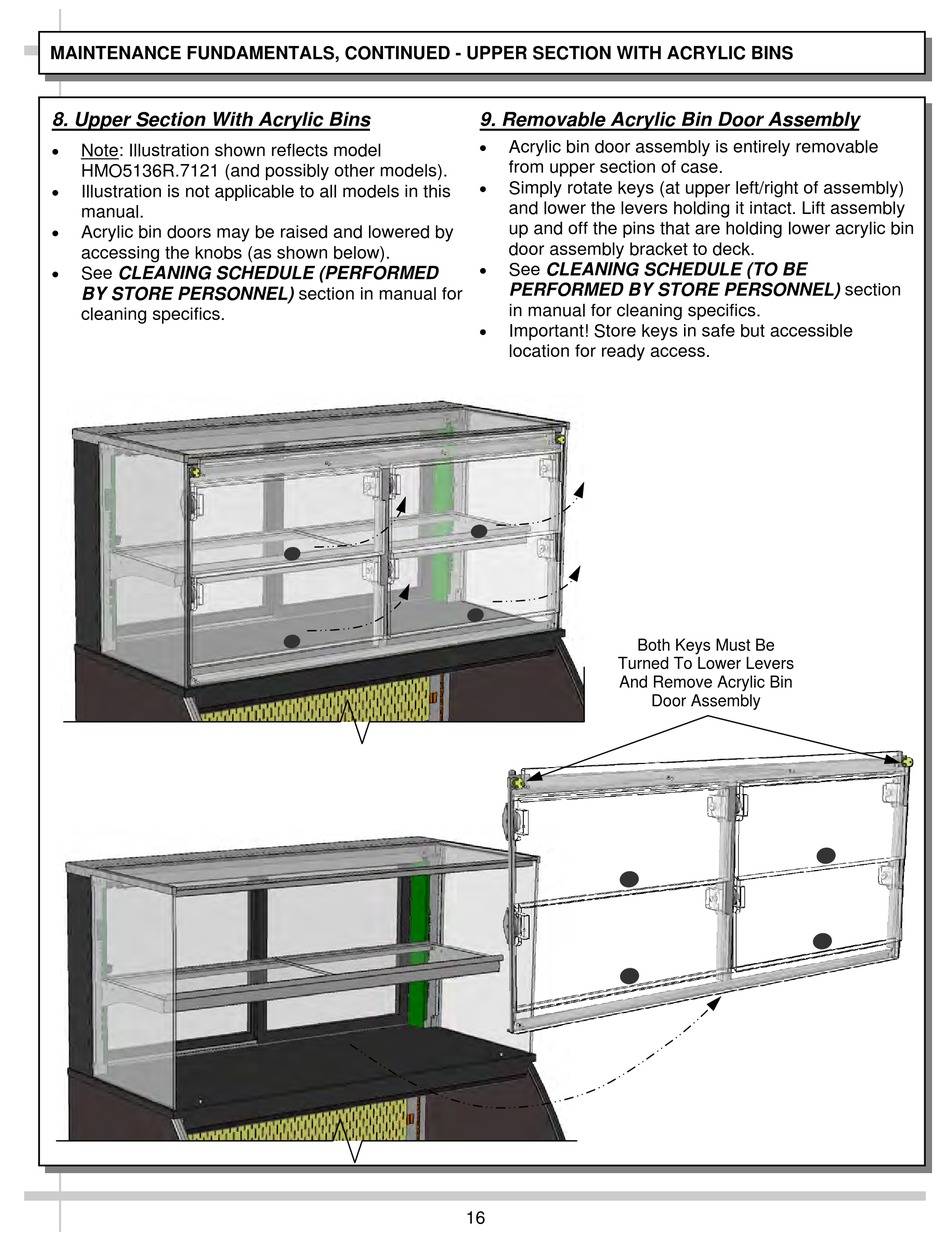

MAINTENANCE FUNDAMENTALS, CONTINUED - UPPER SECTION WITH ACRYLIC BINS
8. Upper Section With Acrylic Bins

Note: Illustration shown reflects model
HMO5136R.7121 (and possibly other models).

Illustration is not applicable to all models in this
manual.

Acrylic bin doors may be raised and lowered by
accessing the knobs (as shown below).

See CLEANING SCHEDULE (PERFORMED
BY STORE PERSONNEL) section in manual for
cleaning specifics.
9. Removable Acrylic Bin Door Assembly

Acrylic bin door assembly is entirely removable
from upper section of case.

Simply rotate keys (at upper left/right of assembly)
and lower the levers holding it intact. Lift assembly
up and off the pins that are holding lower acrylic bin
door assembly bracket to deck.

See CLEANING SCHEDULE (TO BE
PERFORMED BY STORE PERSONNEL) section
in manual for cleaning specifics.

Important! Store keys in safe but accessible
location for ready access.
Both Keys Must Be
Turned To Lower Levers
And Remove Acrylic Bin
16
Door Assembly
