TROUBLESHOOTING: CONDENSER PACKAGE OVERVIEW

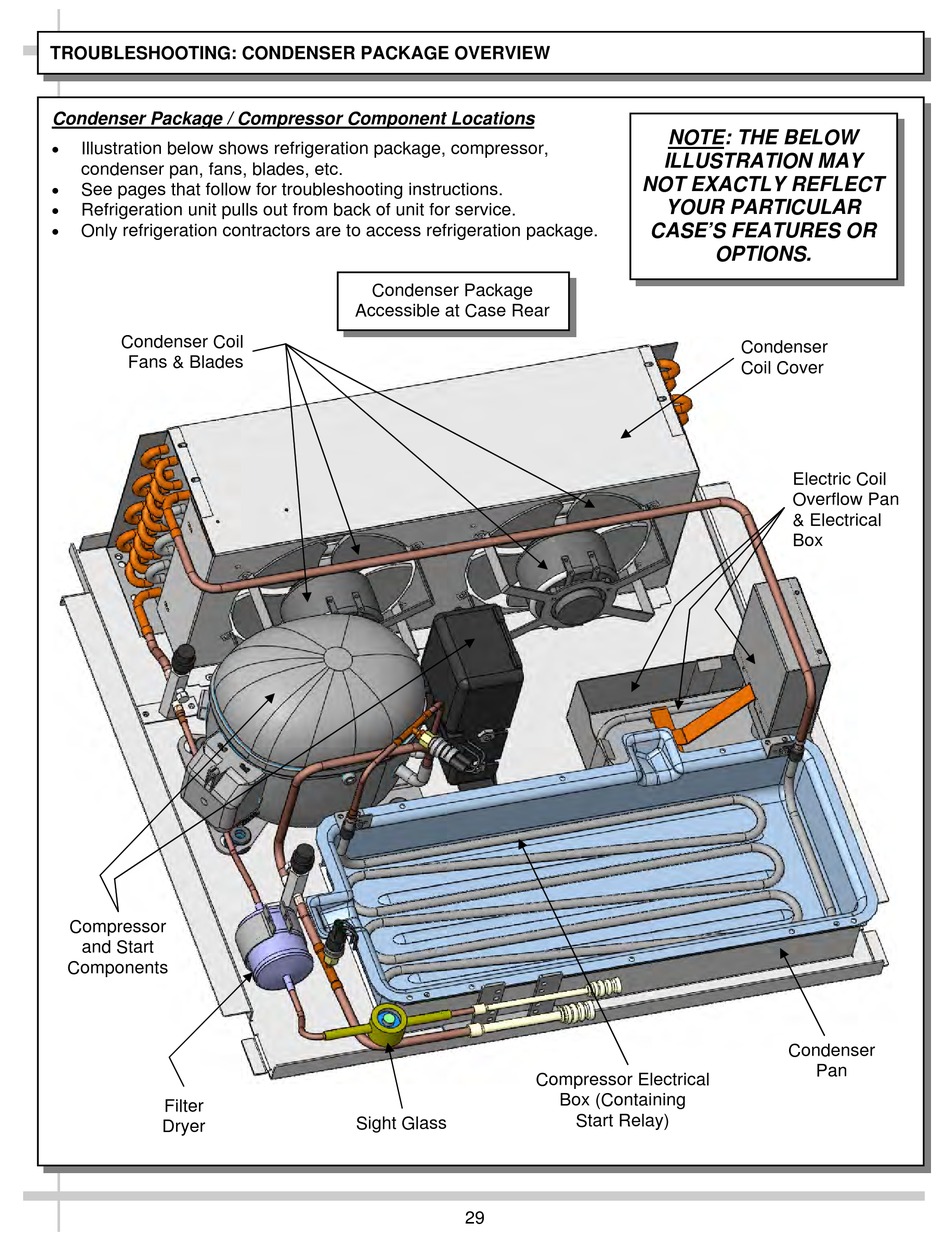

Condenser Package / Compressor Component Locations

Illustration below shows refrigeration package, compressor,
condenser pan, fans, blades, etc.

See pages that follow for troubleshooting instructions.

Refrigeration unit pulls out from back of unit for service.

Only refrigeration contractors are to access refrigeration package.
Condenser Coil
Fans & Blades
Compressor
and Start
Components
Filter
Dryer
Condenser Package
Accessible at Case Rear
Sight Glass
29
NOTE: THE BELOW
ILLUSTRATION MAY
NOT EXACTLY REFLECT
YOUR PARTICULAR
CASE'S FEATURES OR
OPTIONS.
Compressor Electrical
Box (Containing
Start Relay)
Condenser
Coil Cover
Electric Coil
Overflow Pan
& Electrical
Box
Condenser
Pan
