CAREFULLY FOLLOW THESE INSTRUCTIONS
HARMONY
USER
SCC P/N
54190
MANUAL
SELF-SERVICE REFRIGERATED BAKERY MERCHANDISER

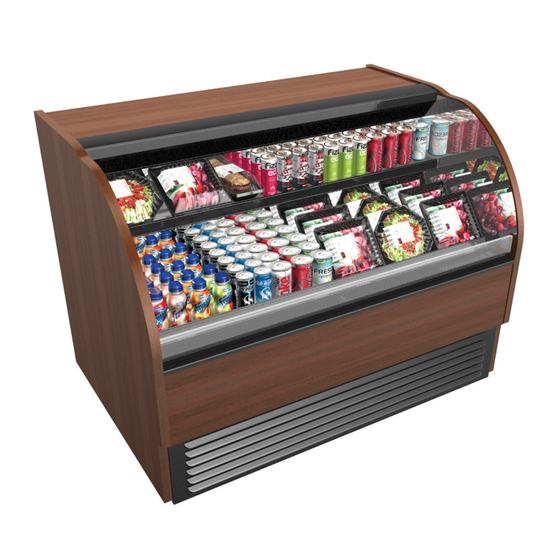

HMO7536R
HMO7536R (Shown With
Optional Security Grid)
Models To Which This Manual Is Applicable*
HMO3936R
HMO3936R and HMO7536R
* Note: This Manual May Also Be Applicable To Models Not Listed Herein.
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
USER MANUAL/54190_HARMONY_USER MANUAL_HMO(L)36R_REF_SELF-SVC_CASE
REV R DATE: 11/01/2022
