MAINTENANCE FUNDAMENTALS, CONTINUED - HONEYCOMB AIR DIFFUSER
10. Honeycomb Air Diffuser
Removable
Preventive maintenance should be performed
Honeycomb
every 30 days unless conditions warrant a
more frequent replacement cycle.

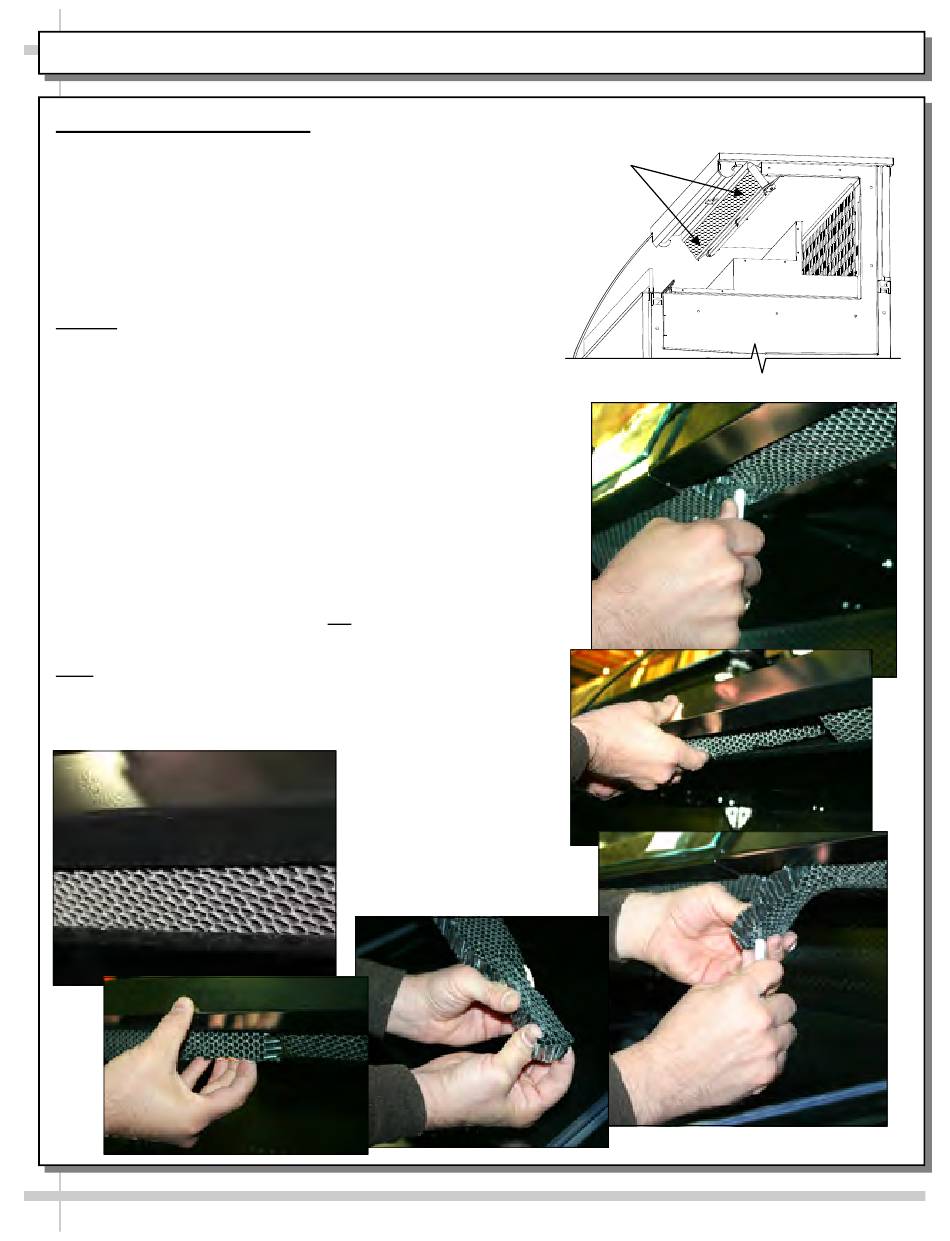

Honeycomb Air Diffuser Removal
A. Wedge non-metallic device of suitable strength
(such as a ballpoint pen) between honeycomb and end
panel.
Caution! Use care not to dislodge the heating wire (that
prevents condensation on the lamp assembly).
B. Apply pressure to collapse the honeycomb to
allow it to be pulled out of honeycomb retainer.
C. Pry downward and away from honeycomb
retainer.
Clean honeycomb with warm water and soap
solution. Submerse if necessary. Use brush to
dislodge stubborn or sticky residue. Dry by using
A
vacuum's 'blow mode'.
Honeycomb Air Diffuser Installation
D. Squeeze honeycomb into the honeycomb retainer.
E. Carefully slide honeycomb into place.
F. Adjust honeycomb so that it fits flat against retainer.
It must not be wavy or out of position.
Note: For honeycomb air diffusers in other locations,
B
these same general instructions apply.
F
D
C
E
