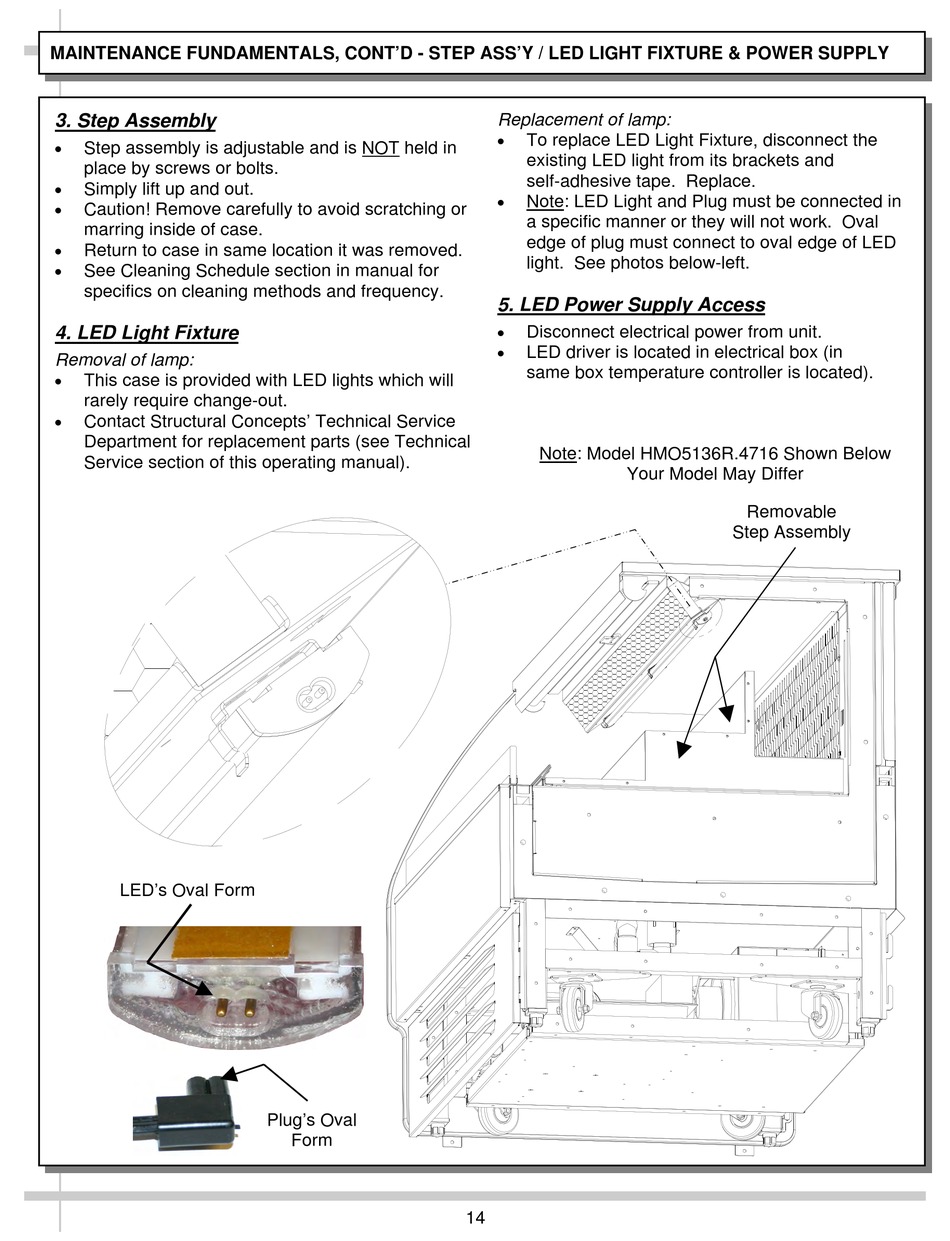

MAINTENANCE FUNDAMENTALS, CONT'D - STEP ASS'Y / LED LIGHT FIXTURE & POWER SUPPLY
3. Step Assembly

Step assembly is adjustable and is NOT held in
place by screws or bolts.

Simply lift up and out.

Caution! Remove carefully to avoid scratching or
marring inside of case.

Return to case in same location it was removed.

See Cleaning Schedule section in manual for
specifics on cleaning methods and frequency.
4. LED Light Fixture
Removal of lamp:

This case is provided with LED lights which will
rarely require change-out.

Contact Structural Concepts' Technical Service
Department for replacement parts (see Technical
Service section of this operating manual).
LED's Oval Form
Plug's Oval
Form
Replacement of lamp:

To replace LED Light Fixture, disconnect the
existing LED light from its brackets and
self-adhesive tape. Replace.

Note: LED Light and Plug must be connected in
a specific manner or they will not work. Oval
edge of plug must connect to oval edge of LED
light. See photos below-left.
5. LED Power Supply Access

Disconnect electrical power from unit.

LED driver is located in electrical box (in
same box temperature controller is located).
Note: Model HMO5136R.4716 Shown Below
Your Model May Differ
14
Removable
Step Assembly
