Privacy Wall (with 1" flange)

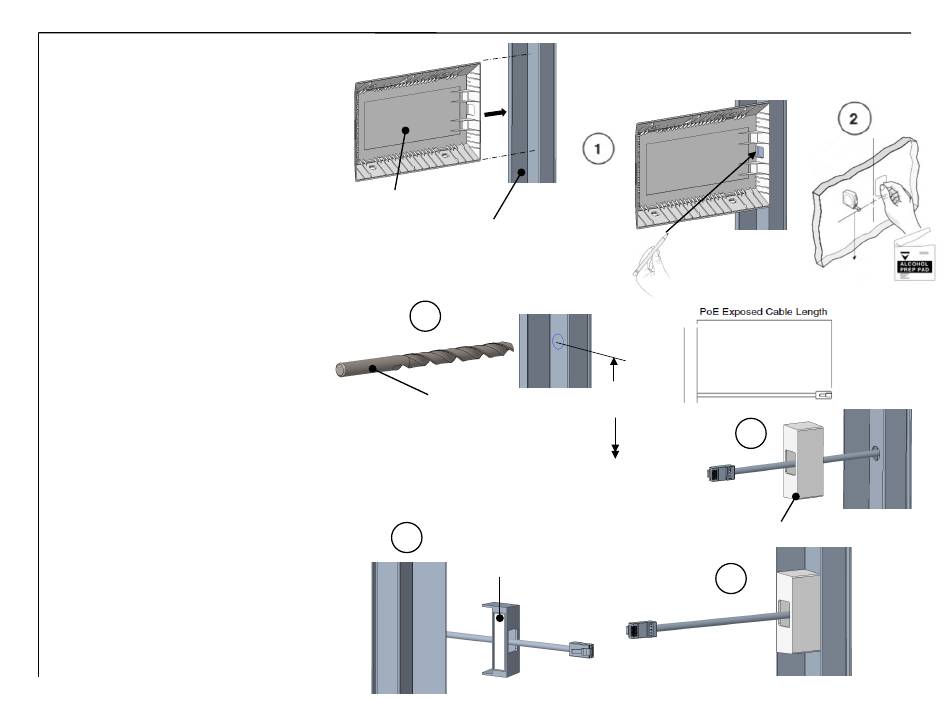

1. Temporarily locate the glass mount bracket
onto extrusion and mark (1) ½" or 5/8"
hole for PoE cable. The glass mounting
bracket should be centered 52" (132cm)
from the floor
2. Thoroughly clean an area at least as large
as the mounting bracket using the alcohol
wipe provided. Allow to completely dry
(approximately 20 seconds) before
attaching mount bracket. Removal of any
vinyl applique is required, vinyl must be cut
to a 3-3/8" x 7-1/4" (8.5cm x 18.5cm)
rectangle. Glass must be clean, free of any
residue and dry from any previous
application used.
3. Remove mount bracket from extrusion and
½
drill one (1) " (12mm) or 5/8" (16mm)
hole for the PoE cable.
4. Route the PoE cable through the hole in
the extrusion and through the PoE Cable
Cover. See Table 1 for correct exposed
length.
5. Remove backing film from the adhesive
strip on the back of the PoE cable cover.
6. Center the PoE cable cover with the hole in
the extrusion and attach to the 1" flange.
Be sure the PoE cover is all the way against
the extrusion.
GLASS MOUNT
BRACKET
EXTRUSION
3
1/2" (12mm)
or 5/8" (16mm)
DRILL BIT
5
REMOVE BACKING FILM
FROM ADHESIVE STRIP
RoomWizard
©
Installation Instructions
7-1/2" (19cm)
52" (132cm)
TO FLOOR
4
PoE Cable Cover
6
Mounting Kits
52"
(132cm) TO FLOOR
