6
1

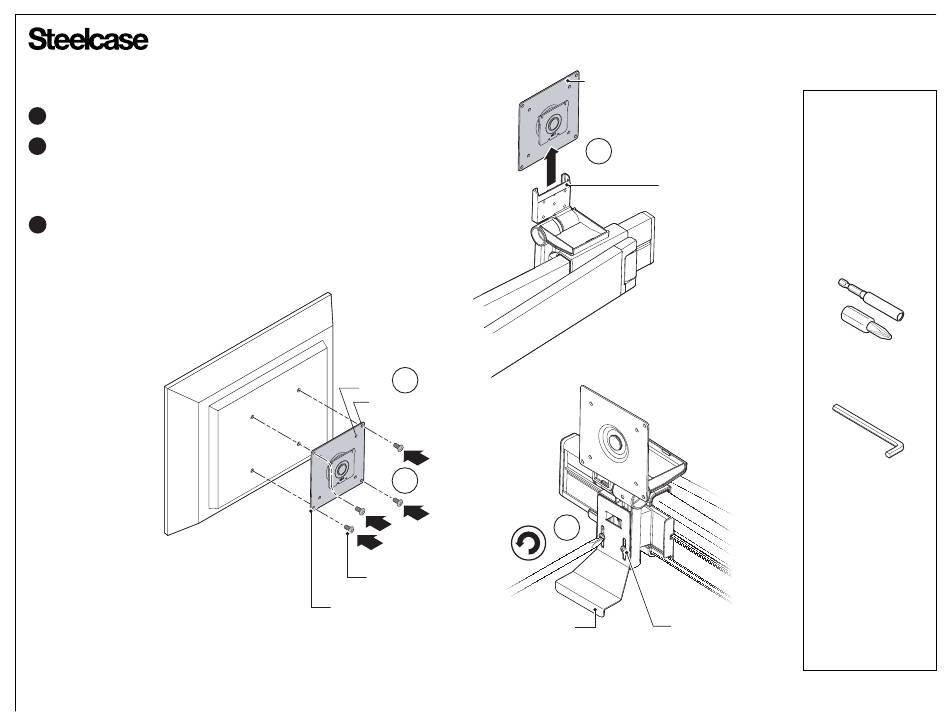

Lift each vesa plate from each monitor mount rail assembly (1a).
7
2
Place vesa plate onto the back of monitor (2a) and secure using four
(4) screws. The holes to be used are determined by the monitor choice.
Use the outer four (4) holes for 100mm and the inner four (4) holes
for 75mm (2b).
3
The focal adjustment handle may need to be moved downward
depending on your monitor size. Locate the two (2) adjustment
screws located on the monitor tilt bracket and loosen (3a). Adjust
location of handle to be just below the bottom of the monitor (3b).
Repeat this procedure for other monitor tilt bracket.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
OR MOUNT
ASSSEMBLY
7a
2b
75 mm
100 mm
7a
2a
SCREW
MONITOR MOUNT
ASSEMBLY
ADJUSTMENT
eyesite Monitor / Laptop Mounting
™
VESA PLATE
6b
1a
MONITOR MOUNT
RAIL ASSSEMBLY
PIVOT OR
NON-PIVOT VERSION
5a
FOCAL
ADJUSTMENT
SCREW
HANDLE
and Exchange
#2 Phillips
Screwdriver
5/32" Allen Wrench
(provided)
Page 1 of 4
23125201 Rev B
