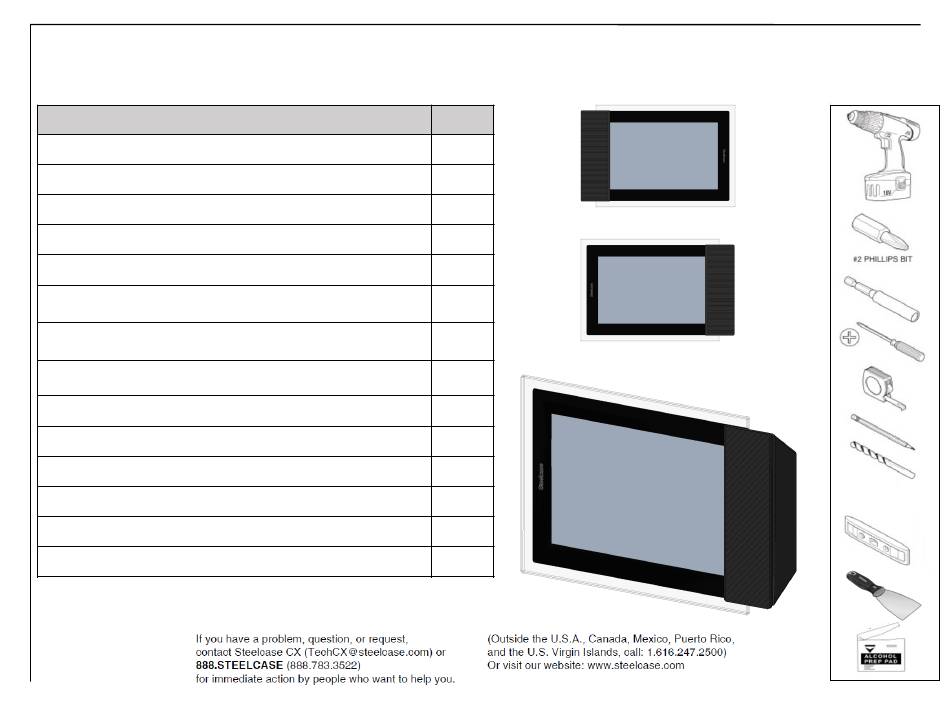

Page 1: Table Of Contents
FrameOne, Post & Beam, Others (Campfire, Big Table, etc.) VIA Glass Wall Systems media:scape Wall Tilt Bracket ½”, Glass Tilt Bracket 3/16”, 5/8”, #32 Single Gang Junction Box FCC Statement ®2020 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Printed in U.S.A. Page 1 of 22...
Page 2: Mounting Selection Guide And Install Notes
RoomWizard device. Notice Leave the protective cover on the RoomWizard until secured in the mount bracket. Steelcase has tested this protective insert so the RoomWizard can survive a 54” drop onto concrete. Protective Cover Table 1 Page 2 of 22...
Page 3: Poe Cable Drops
PoE Cable Drops RoomWizard Mounting Kits © Retrofit Installation Instructions • PoE Cable drops should be located 52” (1325cm) from the floor. • If running PoE cable without connector, minimum hole size ½” should be Ø (12mm). • If running PoE cable with connector, the minimum hole size should be Ø...
Page 4: Removal Of Existing Rw20
Removal of Existing RW20 for non-glass mounts RoomWizard Mounting Kits © Retrofit Installation Instructions 1. Remove the two (2) attachment screws on the back of the RW20 with a #1 Phillips screwdriver. 2. Remove the RW20 from the mount bracket.
Page 5 7. Remove all remnants of the adhesive and SCRAPER BETWEEN COSMETIC COVER AND thoroughly clean surfaces with isopropyl GLASS alcohol or alcohol prep pad until surfaces are completely clean. 8. Go the appropriate install section to install the new RoomWizard. Page 5 of 22...
Page 6: Hard Surfaces (Wood, Drywall, Etc.)
Make sure the mount bracket is level before Screw final tightening. 3. Plug the PoE cable into the back of the RoomWizard. 4. Install the RoomWizard module into the mount bracket. 5. Peel or cut the tabs on the protective cover, then slide to remove the protective cover.
Page 7 RoomWizard Mounting Kits Hard Surfaces (continued) - Retrofit © Retrofit Installation Instructions 6. Position mount bracket onto wall avoiding existing holes, mark a 5/8”(16mm) hole for PoE cable and four (4) 3/16” (5mm) for new wall anchors ensuring the mount bracket is level.
Page 8: Standard Glass Without Existing Rw20 Universal Mount
The PoE cable shroud should extend no more than a ½” (12mm) into the mount. 6. Plug the PoE cable into the back of the RoomWizard. 7. Install the RoomWizard module into the glass mount bracket.
Page 9: Privacy Wall Glass Without 1" Flange And Without Existing
Hold even pressure for at least 15 seconds. 4. Plug the PoE cable into the back of the RoomWizard. 5. Attach the RoomWizard to the glass mount bracket. 6. Peel or cut the tabs on the protective cover, then slide to remove the protective cover.
Page 10 Privacy Wall (with 1” flange) – Retrofit RoomWizard Mounting Kits © Retrofit Installation Instructions 1. See page 5 to remove existing RW20. Thoroughly clean an area at least as large as the mounting bracket using the alcohol wipe provided. Allow to completely dry (approximately 20 seconds) before attaching mount bracket.
Page 11 PoE cable cover then press the glass mounting bracket onto glass. Hold even pressure for at least 15 seconds. 7. Plug the PoE cable into the back of the RoomWizard. 8. Install the RoomWizard module into the glass mount bracket.
Page 12: Systems With Existing Rw20 Universal Mounts - Privacy Walls
(4) M3.5 x 10 screws provided with the mount kit using a #2 Phillips screwdriver. Make sure the mount bracket is level before final tightening. Note: The RoomWizard can be mounted to pre-existing RW20 Universal Mounts in the orientations shown below. RW20 Mount Bracket Page 12 of 22...
Page 13: Rw20 Universal Mount
Mounting Kits © Retrofit Installation Instructions 4. Plug the PoE cable into the back of the RoomWizard. 5. Attach the RoomWizard to the wall mount bracket. 6. Peel or cut the tabs on the protective cover, then slide to remove the protective cover.
Page 14: Via Glass Wall Systems
RoomWizard Mounting Kits VIA Glass – Retrofit © Retrofit Installation Instructions 1. Remove the existing RW20 mount bracket from the existing VIA Mount. See Page 4 for details. 2. Route the PoE cable through the mounting Existing VIA Mount Bracket wall mount bracket and VIA mount adapter.
Page 15 © Retrofit Installation Instructions 4. Plug the PoE cable into the back of the RoomWizard. 5. Install the RoomWizard module into the mount bracket. 6. Peel or cut the tabs on the protective cover, then slide to remove the protective cover.
Page 16: Media:scape
2. Screw the wall mounting bracket onto the shroud using four (4) screws, four (4) washers and four (4) nuts. Ensure the mount is level before final tightening. 3. Plug the PoE cable into the back of the RoomWizard. 4. Install the RoomWizard module into the mount bracket.
Page 17 RoomWizard Mounting Kits media:scape – Retrofit Instructions © Retrofit Installation Instructions 6. Position wall mount bracket onto shroud avoiding existing holes. Ensuring wall mount bracket is level, mark a 5/8” hole for PoE cable and four (4) 5/16” (8mm) for mounting holes.
Page 18: Wall Tilt Bracket
Ensuring wall mount is level, tighten screws. Screws 4. Plug the PoE cable into the RoomWizard. Tilt Bracket 5. Attach the RoomWizard to the mount bracket. Mount Bracket 6. Peel or cut the tabs on the protective cover, then slide to remove the protective cover.
Page 19: Glass Tilt Bracket
Glass Tilt Bracket - Retrofit RoomWizard Mounting Kits © Retrofit Installation Instructions 1. See page 5 to remove existing RW20. Temporarily locate GLASS TILT BRACKET the glass tilt bracket onto glass wall. The glass tilt bracket should be centered 52” (132cm) from the floor to the center of the PoE cable hole.
Page 20 Ensuring the wall mount bracket is level, tighten screws with Phillips screwdriver. 7. Plug the PoE cable into the back of the RoomWizard. SCREWS 8. Attach the RoomWizard to the wall mount bracket.
Page 21: Single Gang Junction Box
(4) #6-32 screws and four (4) #6- 32 nuts. 4. Plug the PoE cable into the back of the RoomWizard. 5. Attach RoomWizard to the wall mount bracket. 6. Peel or cut tabs on the protective cover, then slide to remove the protective cover.
Page 22: Fcc Statement
2. This device must accept any interference received, including interference that may cause undesired operation. FCC Warning Changes or modifications to this product not authorized by Steelcase Inc. could void the electromagnetic compatibility (EMC) and wireless compliance and negate the user’s authority to operate the product.
