Steelcase FYI Manual

®
Wall Mount

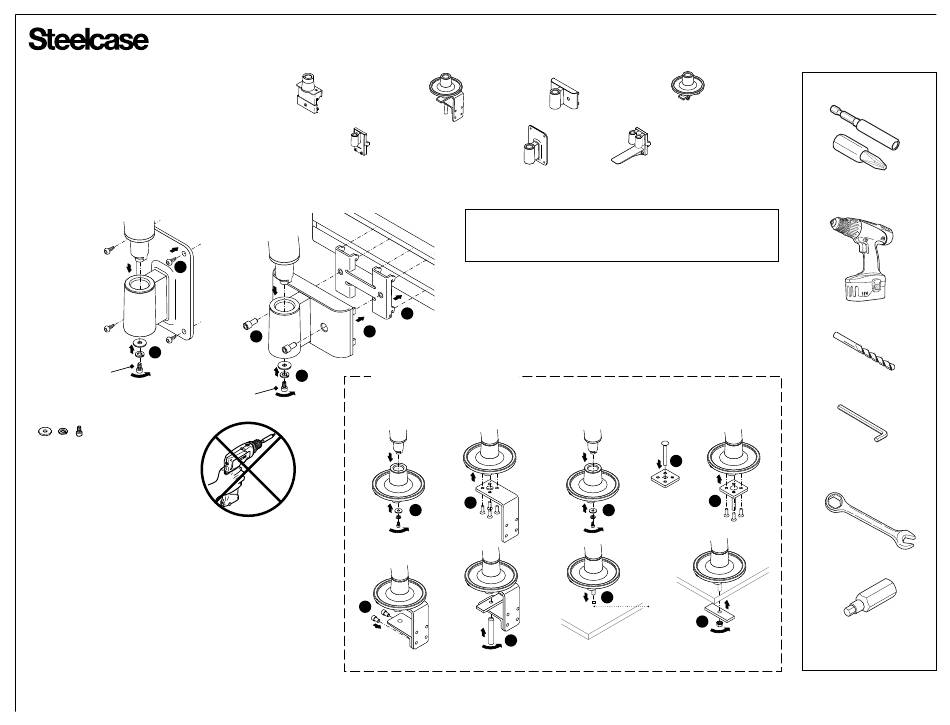

Attach assembly to wall with (4)
fasteners (not included) appropriate
to the construction of the wall.
Use #10 wood
screws when
1
attaching to a
stud.
Use #10 toggle
bolts when
attaching directly
to drywall.
2
45 - 50 in-lbs
(5.1 - 5.7 Nm)
45 - 50 in-lbs
(5.1 - 5.7 Nm)
NOTE: Located in Monitor
Arm Hardware Pack.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2019 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
FYI Single Monitor
Arm with Frame
One Bracket
FPASINGLEFO
FYI Single Flat Panel Monitor
Arm with c:scape Bracket
DFPASINGLECS
Slatwall/SlatRail
on architectural wall
and freestanding stanchions
1
2
3
Service Part Instruction
4
Desk Clamp / Grommet
(Service Part)
1
45 - 50 in-lbs
(5.1 - 5.7 Nm)
3
®
FYI Single & Dual Flat Panel Monitor Arm
Desk Clamp/
Slatwall/SlatRail
Grommet
Bracket
Bracket FPASWR
(Service Part)
Wall Mount
Bracket
FPAWALL
NOTE: DO NOT install C-Clamp mount in a scallop
cut-out on the worksurface. Failure to follow these
instructions could reduce the stability of the arm.
Through Mount
(Service Part)
2
1
45 - 50 in-lbs
(5.1 - 5.7 Nm)
4
4
Through Mount
Bracket
(Service Part)
FYI Dual Flat Panel Monitor
Arm with c:scape Bracket
DFPADUALCS
11/32" Dia. Drill Bit
1/16", 5/32", 3/16" & 1/4"
2
3
5/16 & 1/2 Wrench
Drill
11/32"
5
hole
#2 Phillips
Screwdriver
Power Drill
Allen Wrench
5/32"
HEX DRIVE
