NOTE: DO NOT install C-Clamp mount in a scallop
cut-out on the worksurface. Failure to follow these
instructions could reduce the stability of the arm.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2019 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

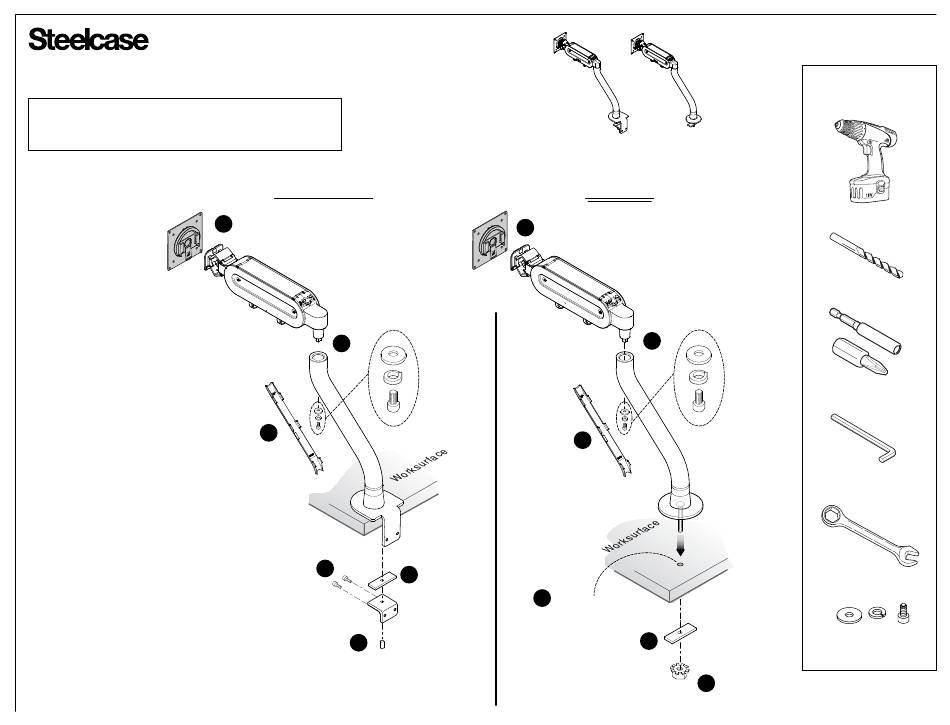

Desk Clamp / Grommet
FPASINGLECC
5
4
6
1
2
FPASINGLETM
5
100 - 105 in-lbs
(11.3 - 11.9 Nm)
6
3
1
Drill 11/32" hole
through worksurface
®
FYI
Single Monitor Arm
FPASINGLECC
FPASINGLETM
Through Mount
4
100 - 105 in-lbs
(11.3 - 11.9 Nm)
2
3
(Not all tools required for
each mounting option)
Power Drill
11/32" Drill Bit
#2 Phillips
Screwdriver
1/16", 5/32" & 1/4"
Allen Wrench
1/2" Wrench
Note: Located in Monitor
Arm Hardware Pack.
Page 1 of 2
004679D Rev K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase FYI FPASINGLECC
Summary of Contents for Steelcase FYI FPASINGLECC
- Page 1 1/16", 5/32" & 1/4" Allen Wrench If you have a problem, question, or request, call 1/2” Wrench your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. Drill 11/32" hole (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
- Page 2 ® Slide monitor mount assembly onto end of arm until audible “click” is heard. Tighten set screw to prevent removal of monitor. RELEASE Attach VESA Bracket to MECHANISM backside of monitor. SET SCREW To remove, loosen set screw, depress and hold release mechanism while lifting monitor up and off arm.
