Steelcase Answer Manual

Steelcase Answer Manual

Recessed frameless glass screens - fence mount
Hide thumbs Also See for Answer:

Advertisement

Quick Links

Download this manual See also: Manual
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2018 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

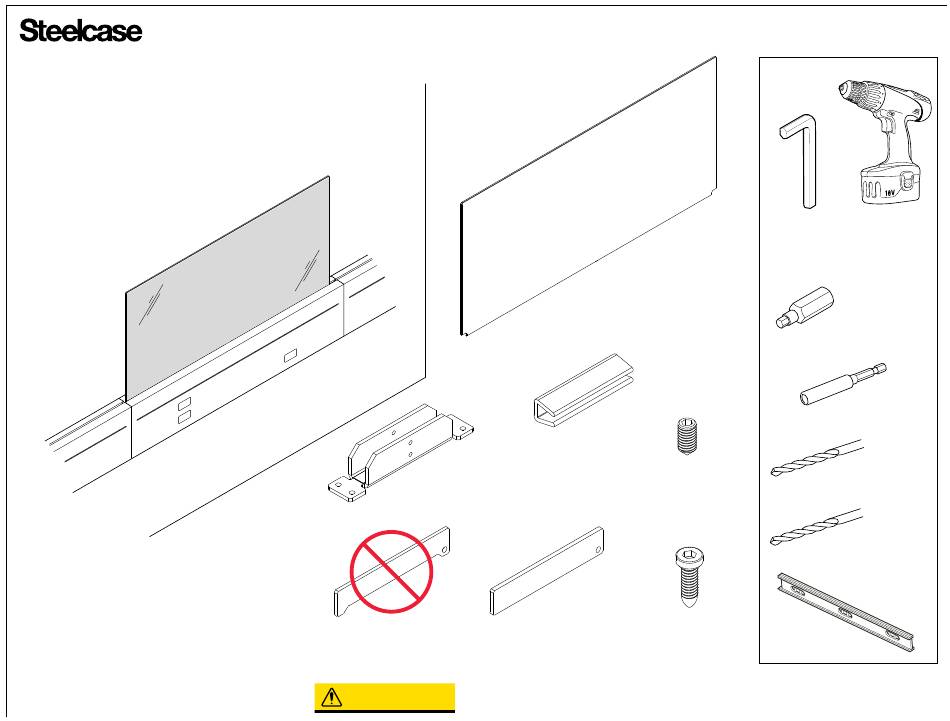

Recessed Frameless Glass Screens - Answer
(Manufactured after July 2019)
2 for 24"-48"
3 for 60" & 72"
Do not use the notched
pressure plate after
July 2019.
CAUTION
1 Glass
1 Vidrio
1 vitre
1 Vidro
2 Grommets
2 Ojales
2 passe-fils
8 for 24"-48"
2 Ilhós
12 for 60" & 72"
8 for 24"-48"
Only use the rectangular
12 for 60" & 72"
pressure plate after
July 2019.
4 for 24"-48"
6 for 60" & 72"
®
Fence Mount
18v
1/8" hex
Hexagonal
Embout hexagonal
sextavada
3/16" hex
Hexagonal
Embout hexagonal
sextavada
1/16" Drill
Broca
Mèche
3/16" Drill
Broca
Mèche
Page 1 of 10
137658 Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Answer and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase Answer

Summary of Contents for Steelcase Answer

  • Page 1 3/16” Drill Broca Mèche If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, 8 for 24”-48”...
  • Page 2 Open this side Abra de este lado Ouvrir de ce côté READ DIRECTIONS AND MANUAL FIRST LEA PRIMERO LAS INSTRUCCIONES Y EL MANUAL RISK OF SERIOUS INJURY LISEZ D’ABORD LES RIESGO DE LESIONES GRAVES DIRECTIVES ET LE GUIDE RISQUE DE GRAVES BLESSURES! >5º...
  • Page 3 TIP: A straight blade screwdriver or a putty knife can be used to move installed covers laterally if needed for adjacent cover installation. NOTE: The glass screen must be no wider than the Fence segment, and cannot span over any junction. Clevis Cover To remove...
  • Page 4 ® SUGERENCIA: Se puede usar un destornillador plano o una espátula para mover lateralmente las tapas instaladas si es necesario para la instalación de la NOTA: La pantalla de vidrio no debe ser tapa adyacente. más ancha que el segmento de la valla y no puede extenderse por encima ninguna unión.
  • Page 5 ® ASTUCE: Utilisez une tournevis à lame ou un couteau à mastic pour déplacer latéralement les couvercles installés, au besoin, pour l'installation des couvercles adjacents. REMARQUE: L'écran de verre ne doit pas être plus large que le segment de cloison et ne peut chevaucher une jonction.
  • Page 6 ® DICA: Uma chave de fenda de ponta reta ou uma espátula podem ser usadas para mover as tampas instaladas lateralmente se necessárias para instalação da tampa adjacente. OBSERVAÇÃO: A tela de vidro não deve ser maior do que o segmento da cerca e não pode se expandir acima de nenhuma junta.
  • Page 7 NOTE: Nominal glass to glass gap is .100” IGUAL EN AMBOS TIP: If adjacent pieces of glass are not sufficiently ® EXTREMOS (1/4”) NOTA: El espacio nominal de vidrio a vidrio BOTH ENDS vertically aligned, check to make sure the ÉGAL AUX DEUX es de 0,100 de pulgada (1/4”)
  • Page 8 ® .100” nominal gap Espacio nominal de 0,100 de pulgada Écart nominal de 0,100 po Folga nominal de 0,100” Lower Screws: Tornillos inferiores: Vis inférieures: Parafusos inferiores: 25 +/- 5 in-lbs. First hand tighten lower set screws with a hex key to center glass between blue Top Screws: screw heads.
  • Page 9 ® TIP: A straight blade screwdriver or a putty knife can be used to move installed covers laterally if needed for adjacent cover installation. SUGERENCIA: Se puede usar un destornillador plano o una espátula para mover lateralmente las tapas instaladas si es necesario para la instalación de la tapa adyacente.
  • Page 10 ® 1-1/4" Mounting Clevis to Older Horizontal Beam NOTE: The holes for mounting the clevis may not be pre-drilled on the older horizontal beams. When this occurs, use the clevis as a template to locate the hole locations and follow steps below to drill mounting holes. Place the clevis onto the top horizontal beam 1-1/4"...
