Steelcase 9000 Series Manual

Conventional panel stabilizer foot

Download this manual

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2001 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

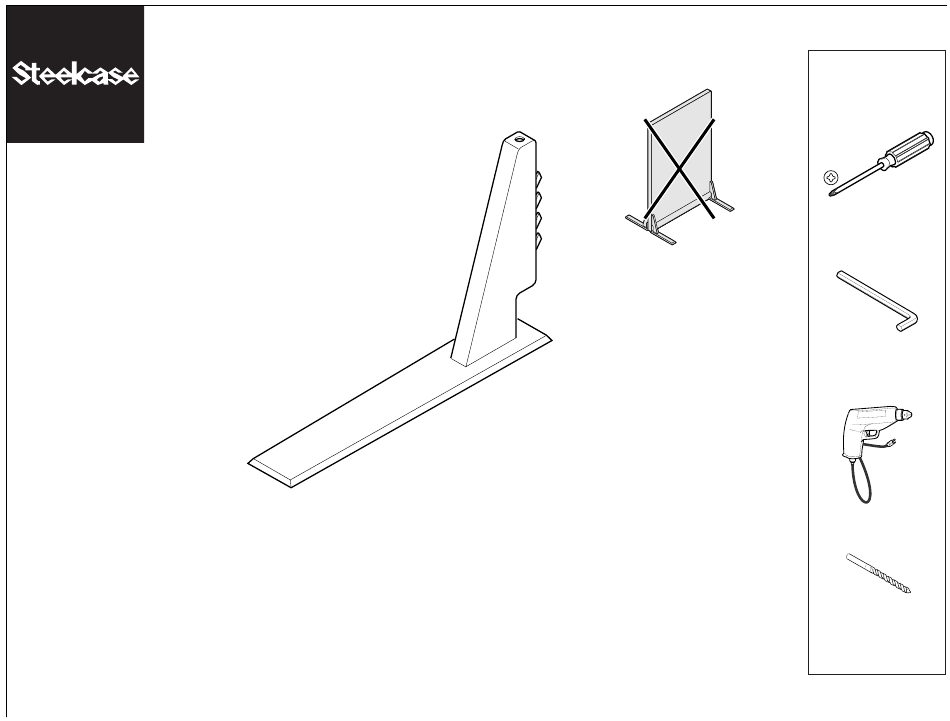

Series 9000 Conventional Panel Stabilizer Foot

For Use On Convention Panels Only.

Caution: The stabilizer foot is used to stabilize a run of

panels only and is not to be used to support a run of

panels with over hung loads from hang-on components.

Failure to do so may result in personal injury.

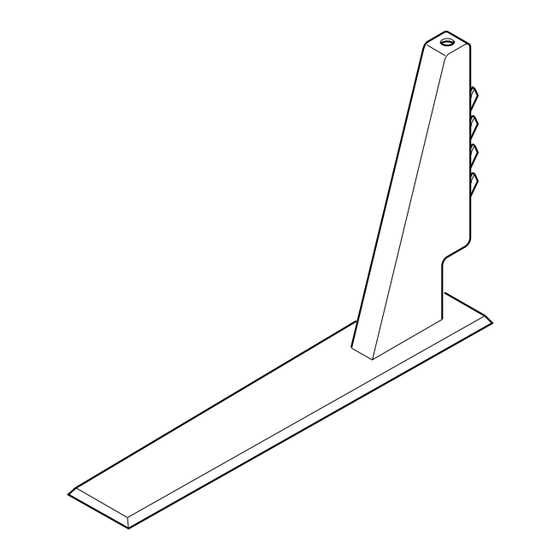

Panel stabilizer foot

must not be used as the sole

source of support for panels.

3/16"

1/4" BIT

Page 1 of 3

939500917 Rev B

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Page 1 3/16” If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at Caution: The stabilizer foot is used to stabilize a run of 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
Page 2 Remove base trim by pushing down on spring tabs and lifting up and out. Locate and drill a 1/4" dia. hole thru both flanges of the bottom pan. NOTE: Use a protective pad under bottom pan before drilling. 9 1/4” 1/2”...
Page 3 #10 Phillips Head Screw Install foot bracket under bottom pan using #10 phillips head screw. Note: Over tightening adjusting screw will raise the panel Replace base trim. Rotate stabilizer foot from the floor and result in unstable conditions. into position and engage hooks of the stabilizer foot into panel upright.
