Privacy Wall (without 1" flange)

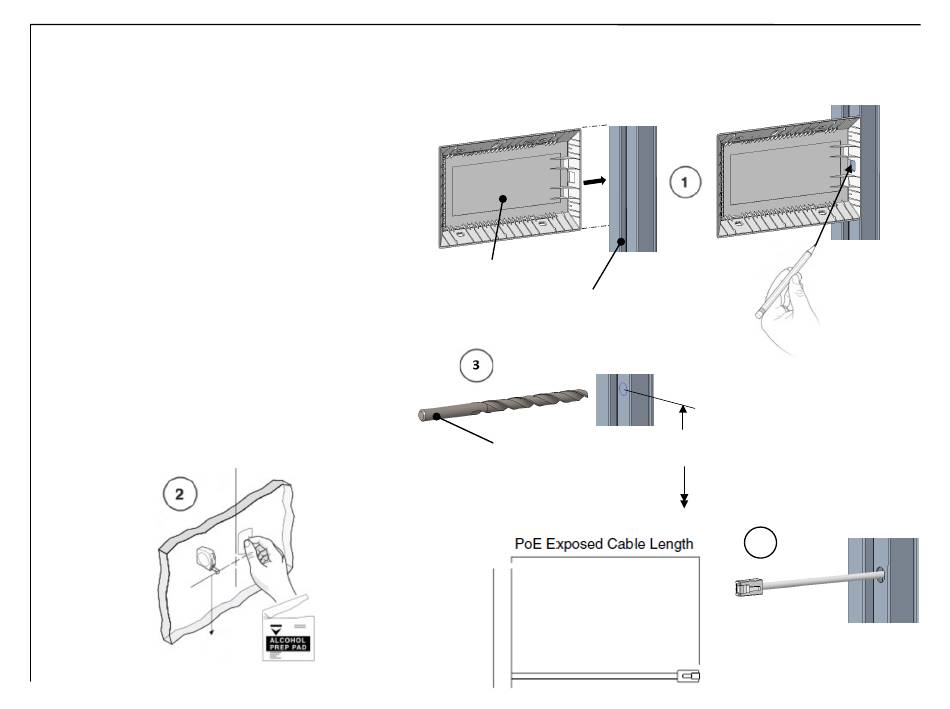

1. Temporarily locate the glass mount bracket onto
extrusion and mark (1) ½" or 5/8" hole for PoE
cable. The glass mounting bracket should be
centered 52" (132cm) from the floor
2. Thoroughly clean an area at least as large as the
mounting bracket using the alcohol wipe provided.
Allow to completely dry (approximately 20
seconds) before attaching mount bracket. Removal
of any vinyl applique is required, vinyl must be cut
to a 3-3/8" x 7-1/4" (8.5cm x 18.5cm) rectangle.
Glass must be clean, free of any residue and dry
from any previous application used.
3. Remove mount bracket from extrusion and drill
½
one (1) " (12mm) or 5/8" (16mm) hole for the
PoE cable.
4. Route the PoE cable through the hole in the
extrusion. See Table 1 for correct exposed length.
52"
(132cm)
TO FLOOR
RoomWizard
GLASS MOUNT
BRACKET
EXTRUSION
1/2" (12mm)
or 5/8" (16mm)
DRILL BIT
6-1/2" (16.5cm)
Mounting Kits
©
Installation Instructions
52" (132cm)
TO FLOOR
