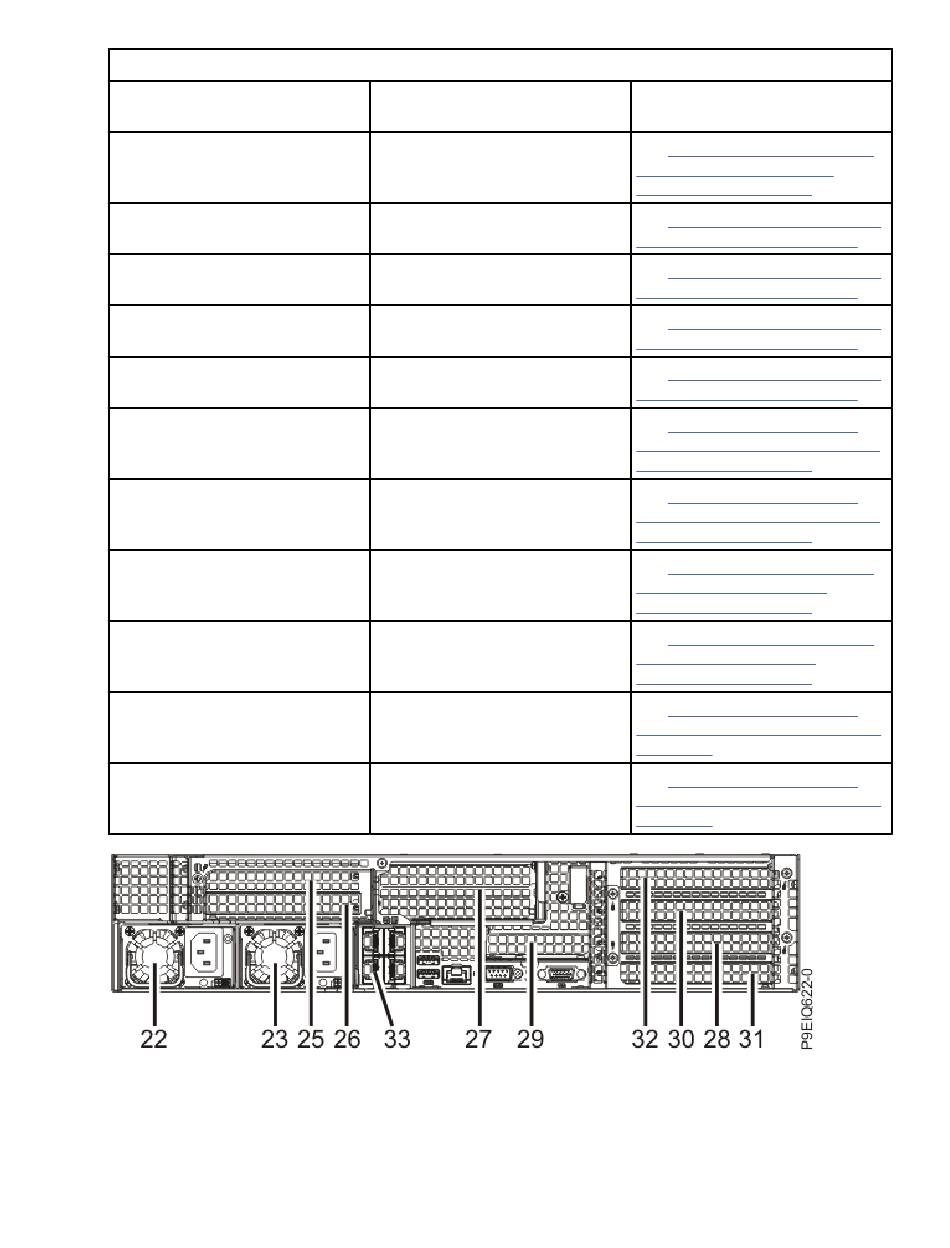

Table 20. Top view locations
Index number
13
14
15
16
17
18
19
20
21
22
23
Figure 3. Rear view
FRU description
Disk drive backplane
Fan 2
Fan 3
Fan 6
Fan 7
CPU 1
CPU 2
Time-of-day battery
System backplane
PSU 1
PSU 2
FRU removal and replacement
procedures
See Removing and replacing the
disk drive backplane in the
5104-22C or 9006-22C.
See Removing and replacing fans
in the 5104-22C or 9006-22C.
See Removing and replacing fans
in the 5104-22C or 9006-22C.
See Removing and replacing fans
in the 5104-22C or 9006-22C.
See Removing and replacing fans
in the 5104-22C or 9006-22C.
See Removing and replacing a
system processor module for the
5104-22C or 9006-22C.
See Removing and replacing a
system processor module for the
5104-22C or 9006-22C.
See Removing and replacing the
time-of-day battery in the
5104-22C or 9006-22C.
See Removing and replacing the
system backplane in the
5104-22C or 9006-22C.
See Removing and replacing a
power supply in the 5104-22C or
9006-22C.
See Removing and replacing a
power supply in the 5104-22C or
9006-22C.
Finding parts and locations 65
