Chapter 1: Product Introduction

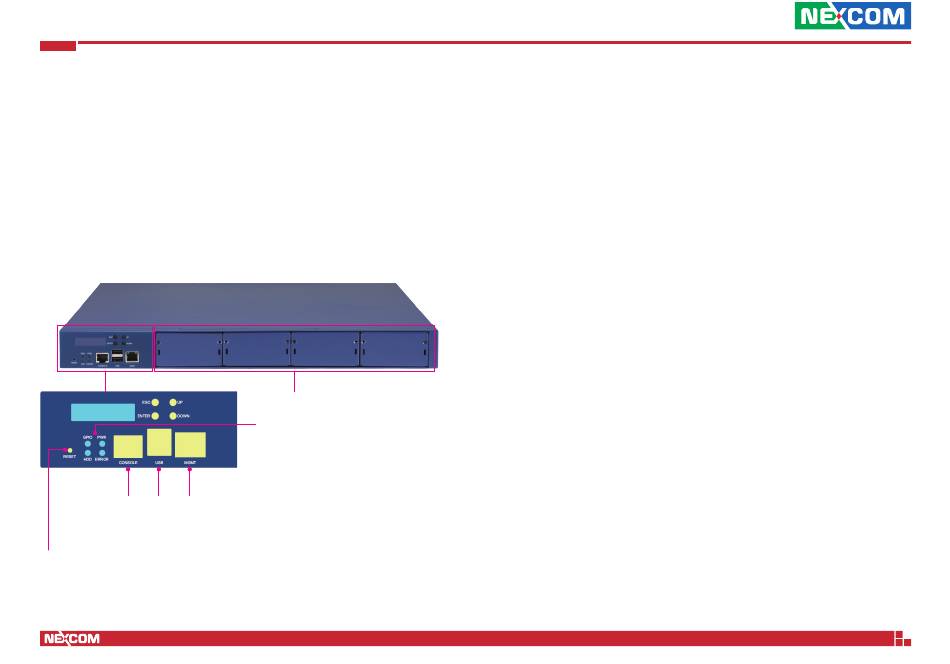

Knowing Your NSA 5170C
Front Panel
RJ45 Type
USB
Management
Console Port
Ports
LAN
Reset
Button
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
LAN Modules
LED Indicators
Reset Button
Press to restart the system.
LED Indicators
Indicates the power, storage drive and GPIO activity of the system.
RJ45 Type Console Serial Port
Used to connect RJ45 type console devices.
USB Ports
Used to connect USB 2.0 devices.
Management LAN Port
Management LAN port used for managing the system.
LAN Modules
Four LAN module bays to install add-on network modules.
