Chapter 3: System Setup

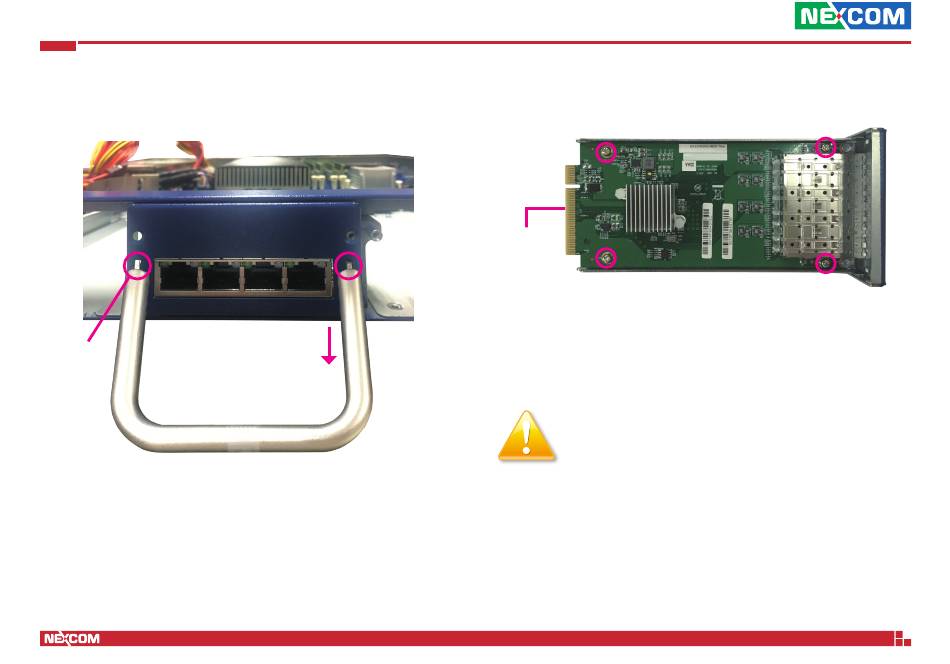

3. Once the handle is firmly secured in position, pull the handle outwards
to remove the LAN module tray.
Insert here
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
4. Place the LAN module into the tray making sure the connector side of
the module is at the rear side of the tray.
Connector
side
5. Secure the module in place with screws, and slide the tray back into the
bay.
Important:
Before using Optical fiber for transferring data, make sure
you have connected an approved Optical Transceiver Module.
User needs to install appropriate and UL approved Laser Class I
Transceivers, rated 3.3Vdc, max. 1W.
23
NSA 5170C User Manual
