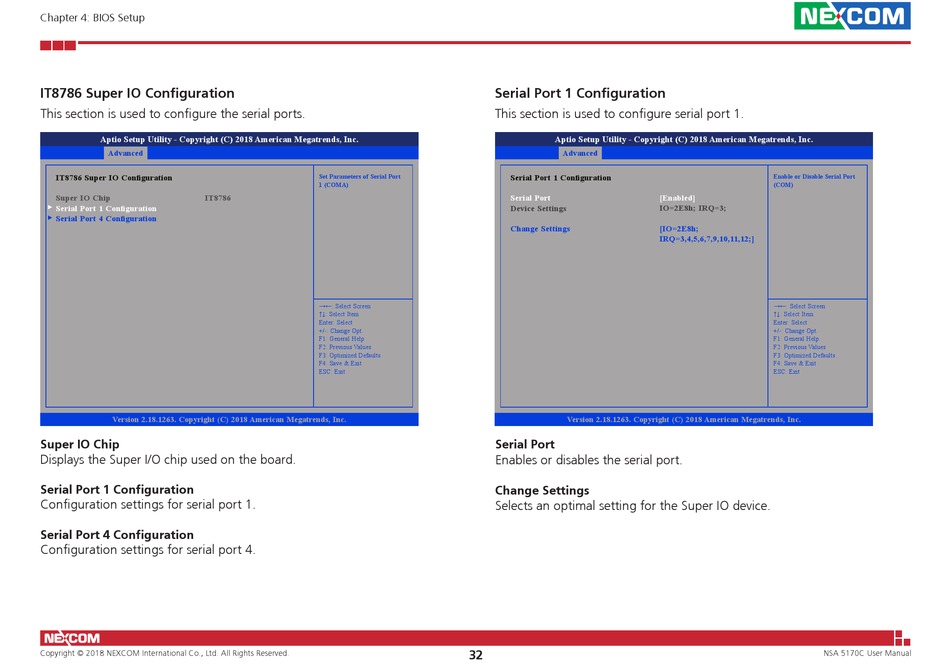

Nexcom NSA 5170C User Manual page 46

Chapter 4: BIOS Setup
IT8786 Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Advanced
IT8786 Super IO Configuration
Super IO Chip IT8786
Serial Port 1 Configuration

Serial Port 4 Configuration

Version 2.18.1263. Copyright (C) 2018 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Serial Port 1 Configuration
Configuration settings for serial port 1.
Serial Port 4 Configuration
Configuration settings for serial port 4.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
32
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=2E8h; IRQ=3;
Change Settings [IO=2E8h;
IRQ=3,4,5,6,7,9,10,11,12;]
Version 2.18.1263. Copyright (C) 2018 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
NSA 5170C User Manual
