Chapter 2: Jumpers and Connectors

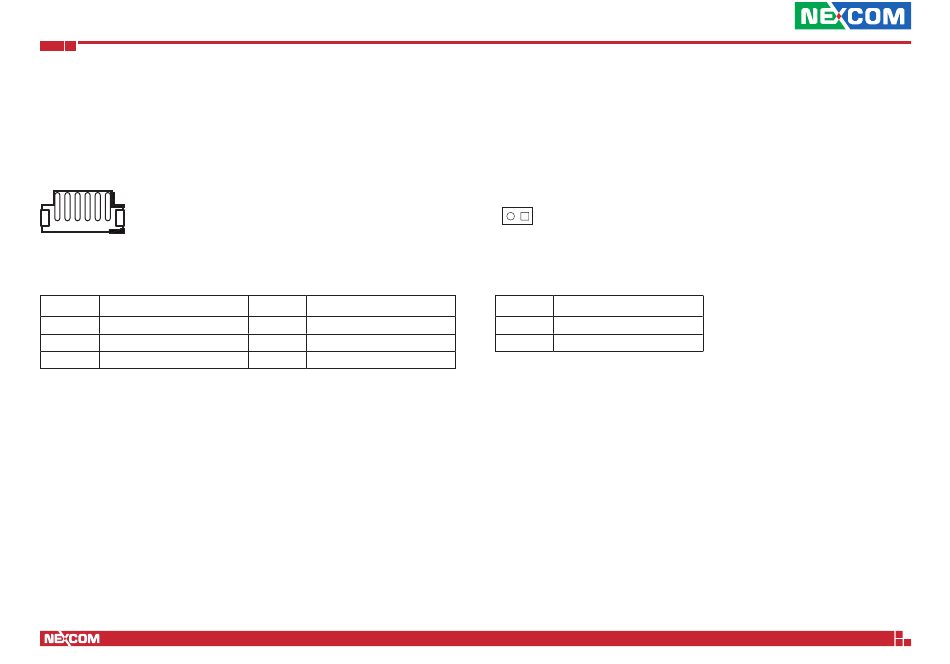

Rear USB 2.0 Connector
Connector type: 1x6 6-pin header, 2.0mm pitch
Connector location: J1
6
1
Pin
Definition
1
P5V_USB_P01
3
USB2P0_C
5
USB2P1_C
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
USB2N0_C
4
USB2N1_C
6
GND
Power Button
Connector type: 1x2 2-pin header, 2.54mm pitch
Connector location: J2
2
1
Pin
Definition
1
GND
2
FP_PWR_BTN_N
12
NSA 5170C User Manual
