Chapter 3: System Setup

Installing a 2.5" SATA Hard Drive

Please correctly follow the below instructions and

CAUTION!

noted items to avoid making unnecessary damages.

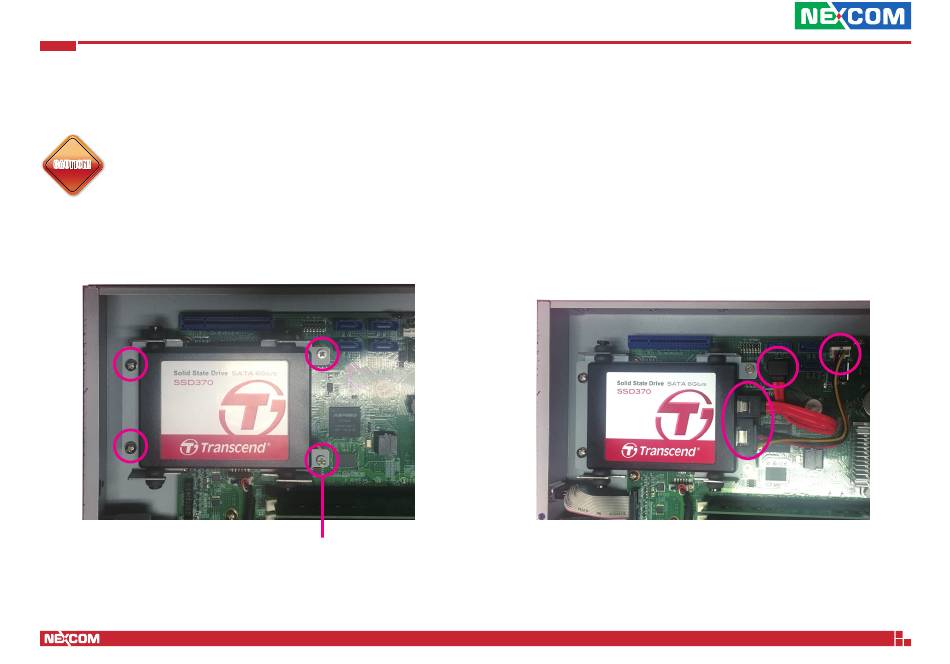

1. Install the SATA storage drive onto the storage drive bracket and secure

it to the chassis with mounting screws.

Mounting Screw

2. Connect the SATA data and power cables to the respective connectors

on the board and the other ends of the cables to the connectors on the

storage drive.
