4.

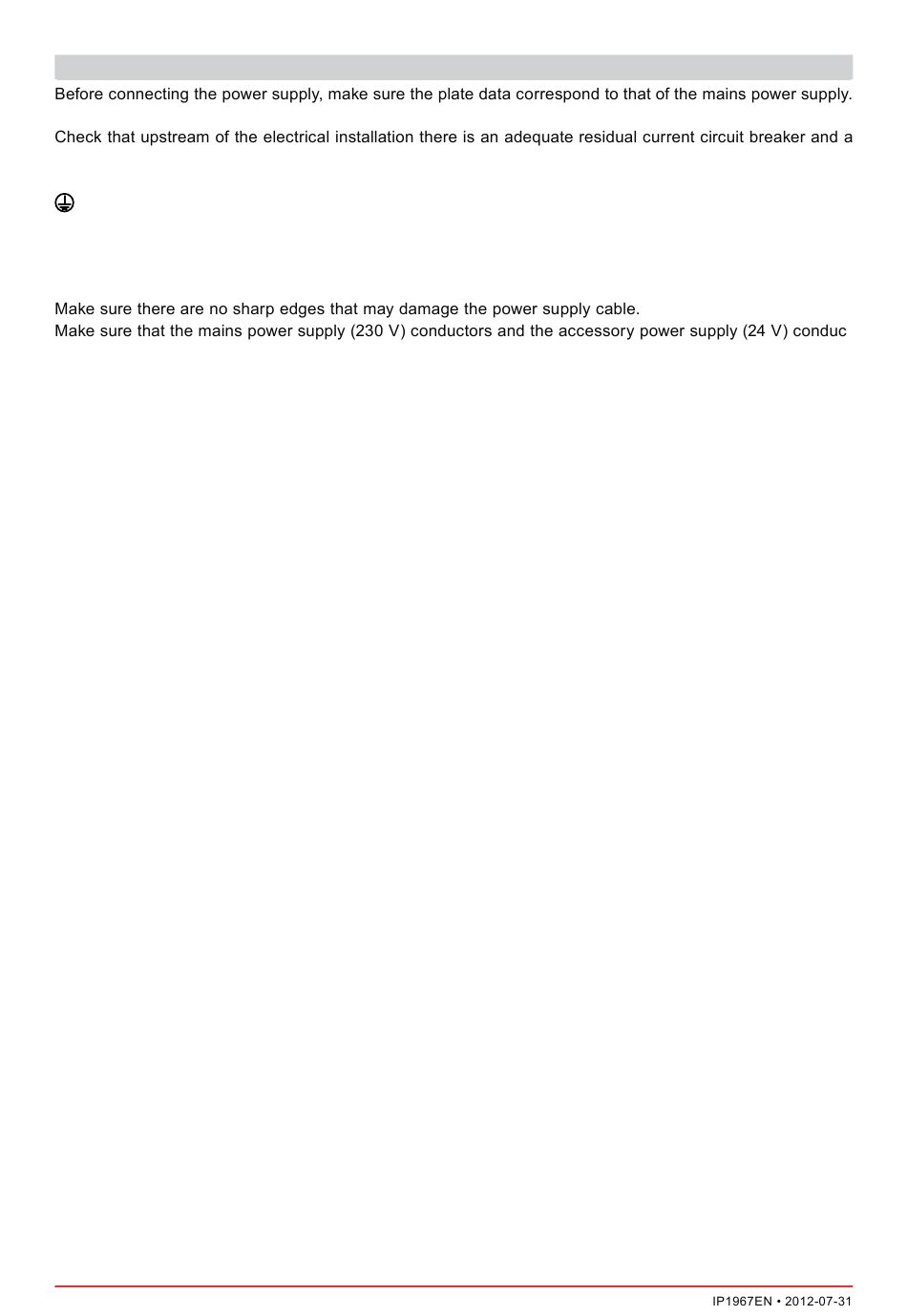

CONNECTION OF POWER SUPPLY

An omnipolar disconnection switch with minimum contact gaps of 3 mm must be included in the mains supply.
suitable overcurrent cutout.
Use a H05RN-F 3G1,5 or H05RR-F 3G1,5 type electric cable and connect to the terminals L (brown), N (blue),
(yellow/green) in the automation.
Secure the cable using the special cable clamp and remove the outer sheath near the terminal only.
Connection to the mains power supply, in the section outside the automation, is made with independent chan-
nels and separated from the connections to the control and safety devices.
The channels must penetrate a few centimetres inside the automation thorough a hole maximum Ø16 mm.
-
tors are separate.
5
