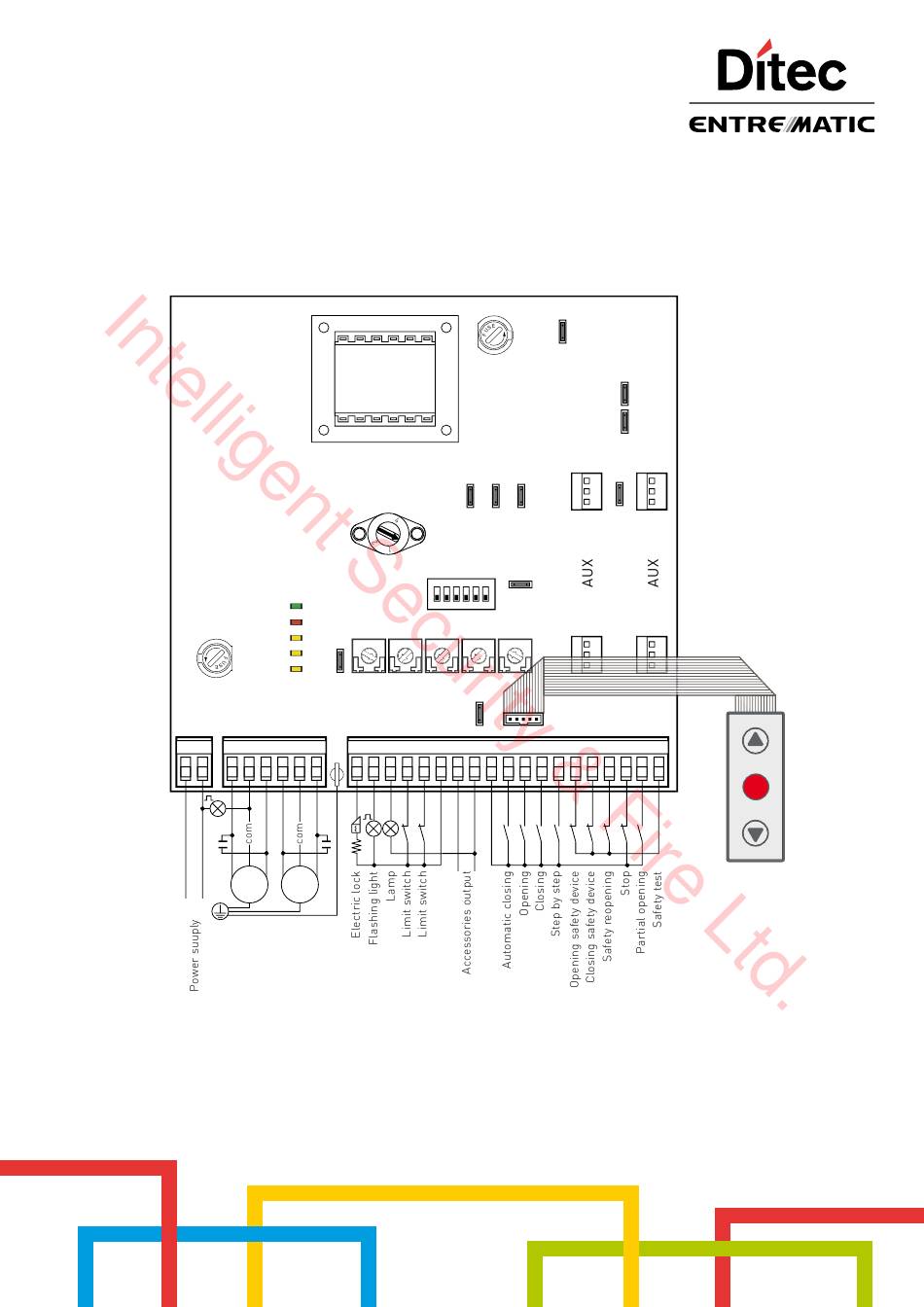

Ditec LOGICM
Control panel installation manual for 230 V~ automation with one or two motors.
LOGICM
POWER
F1
L N
U W V X Z Y
M1
1~
L N
RF
ON
1
SA
TM
TC
RP
IN
JR6
11
12
15 14 13 12 11 0 0 1 1 2 3 4 5 6 7 8 9 20 41
M2
1~
www.ditecentrematic.com
F2
JR4
D5 S5 JT
NIO
EO
2 3 4 5 6
TR
R1
OM
J7
IP1854EN
JR10
SO
Advertisement
Table of Contents
Related Manuals for DITEC Entrematic LOGICM
Summary of Contents for DITEC Entrematic LOGICM
- Page 1 Ditec LOGICM IP1854EN Control panel installation manual for 230 V~ automation with one or two motors. LOGICM JR10 D5 S5 JT POWER 2 3 4 5 6 U W V X Z Y 15 14 13 12 11 0 0 1 1 2 3 4 5 6 7 8 9 20 41...
- Page 3 Index Subject Page General safety precautions EC declaration of conformity Technical data Applications Commands Self-controlled safety edge Outputs and accessories Adjustments Trimmer Dip-switch Jumper Signals Start-up Troubleshooting Example application for two-motors swing gates Example application for one-motor swing gate Example application for sliding gate Example application for barrier Example of parallel Caption...
-
Page 4: General Safety Precautions
2. EC Declaration of conformity The manufacturer Entrematic Group AB with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden declares that the control panel Ditec LOGICM is in conformity with the provisions of the following EC directives: EMC Directive 2004/108/CE;... - Page 5 4. Commands Command Function Description N.O. AUTOMATIC CLOSING Permanently closing the contact enables automatic closing. N.O. OPENING The opening operation starts when the contact is closed. N.O. CLOSING The closing operation starts when the contact is closed. N.O. STEP-BY-STEP With D5=ON closing the contact starts a sequential opening or closing operation: open-stop- close-open.
- Page 6 5. Output and accessories Output Value - Accessories Description Accessories power supply. Power supply output for external accessories, including automation status lamp. 0 1 2 3 24 V 0,5 A NOTE: the maximum absorption of 0.5 A corresponds to the sum of all terminals 1. The control panel has two spaces for coupling board, type radio receivers, magnetic loops etc.
- Page 7 Output Value - Accessories Description Membrane push-button panel (PT3). Starts the opening operation. Note: to activate the closing operation, connect the connector of the push-button panel to J7 (rotated by 180°). Membrane push-button panel (PT3). Causes the blocking of the movement. Membrane push-button panel (PT3).
- Page 8 6.3 Jumper Jumper Description Overtravel reduction. Disabled. Enabled. Reduces the overtravel distance for the NOTE: set JR4=OFF is the motor is equip- NOTE: preferably set JR4=ON if the door door wing. ped with an electric brake. wing performs an excessive overtravel. Application type.
- Page 9 7. Starting • Bridge the NC safety contacts with a jumper. Before starting up, check the application type selected. In the case of single door wing automation, set OM=OFF. For sliding • gate automation, set JR6=OFF. • Any limit switches installed must be adjusted so that they are triggered near the mechanical opening and closing end stops. Set TM=MAX.
-
Page 10: Troubleshooting
8. Troubleshooting Problem Possible causes Remedy Automation does not open or close. No power. Check that the control panel is powered cor- (POWER led off). rectly. Short circuited accessories. Disconnect all accessories from terminals 0-1 (POWER led off). (voltage must be 24 V=) and reconnect one at a time. -
Page 11: Example Application For Two-Motors Swing Gates
9. Example application for two-motors swing gates When the LOGICM control panel is used in automation applications with two swinging door wings, one of the following operating modes may be selected. <MAX <MAX Example 1 - Door wings stop against mechanical end stops and in the event of obstacle detection. -
Page 12: Example Application For One-Motor Swing Gate
10. Example application for one-motor swing gate When the LOGICM control panel is used in automation applications with one swinging door wing, one of the following operating modes may be selected. <MAX <MAX Example 1 - Door wing stops against mechanical end stops and in the event of obstacle detection. -
Page 13: Example Application For Sliding Gate
11. Example application for sliding gate When using the LOGICM control panel for sliding automation appli- DIP2=OFF cations: set OM=OFF set JR6=OFF 2 3 4 5 6 set TM=MAX DIP2=ON Connect the opening and closing limit switch NC contacts to terminals 0-11-12. - Page 14 13. Example of automation in parallel The two automations [A] and [B] can be operated in parallel by making the connections indicated in the figure. Commands 1-3 and the remote controls (with DIP1=ON) are equivalent to a total opening command. Automatic closing is obtained by adjusting the TC trimmer not at the maximum and in the same position on both control panels.
- Page 15 All rights related to this material are the exclusive property of Entrematic Group AB. Although the contents of this publication have been compiled with the greatest possible care, Entrematic Group AB cannot accept liability for any damage that might arise from errors or omissions in this publication. We reserve the right to make modifications without prior notice.
- Page 16 Entrematic Italy S.p.A. Via Mons. Banfi, 3 • 21042 Caronno P.lla (VA) Italy Tel. +39 02 963911 Fax +39 02 9650314 www.ditecentrematic.com...
