IP1982EN • 2016-09-13

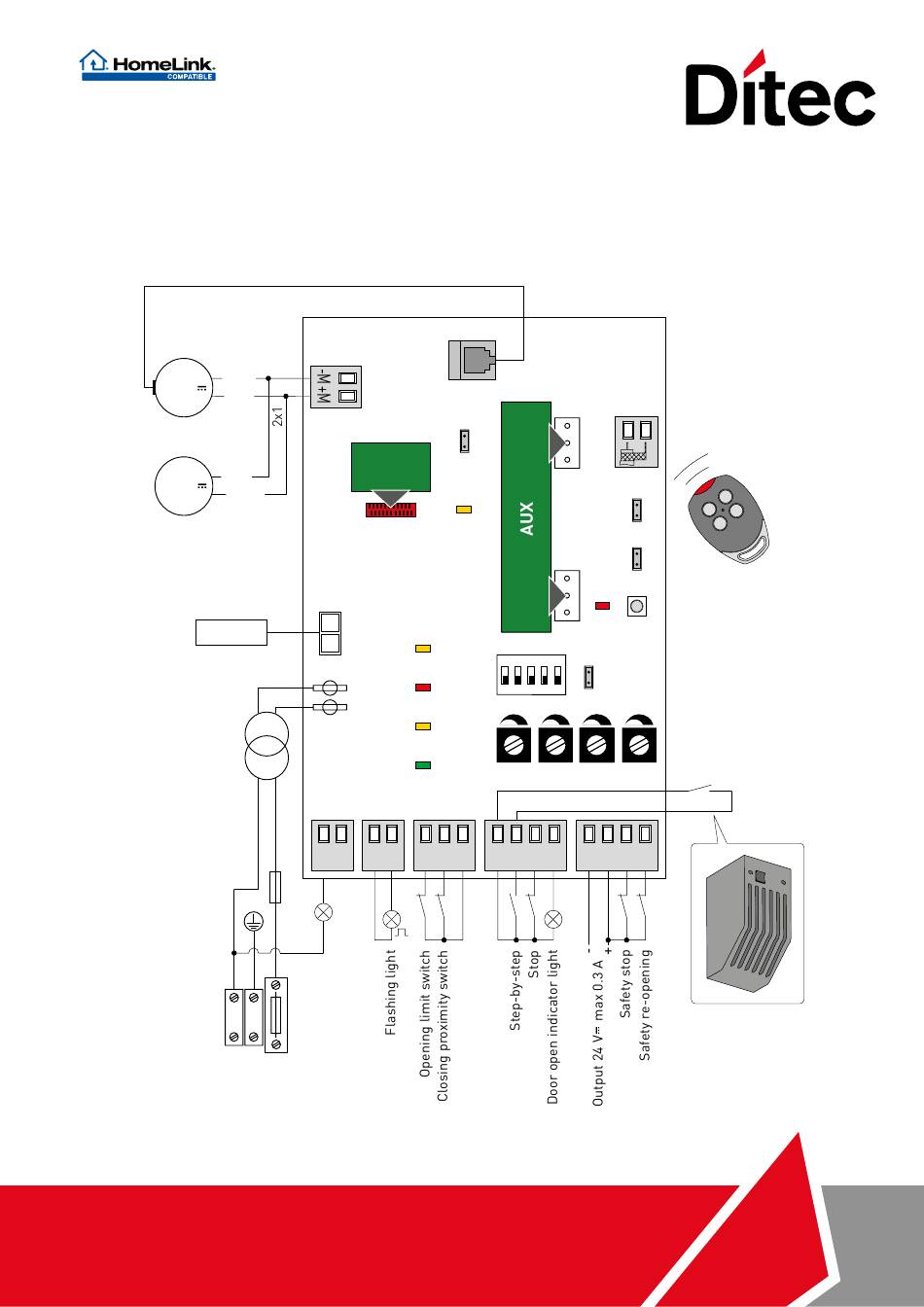

Ditec E1HBOX
Installation manual for control panel for BOX3EH automation
Motor 1
Black
24V
Blue
Motor 2
(optional for BOX3H)
Blue
24V
Black
BATK4
Transformer
L
Power supply
www.ditecautomations.com
BIXMR2
COM
BAT
11
SA
24 V~
12
POWER
ALARM
C NO 14 0
12 11 0
F1
230V
25W
N
ENC
ANT
JR4
6►4
IN
PRG
SIG
JR3
ON
OFF
1 2 3 4 5
VA
VC
TC
1 5 9 13
0 1 6 8
SO
GOL4
R1
Step-by-step

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E1HBOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DITEC E1HBOX

Summary of Contents for DITEC E1HBOX

  • Page 1 IP1982EN • 2016-09-13 Ditec E1HBOX Installation manual for control panel for BOX3EH automation Motor 1 Black Blue Motor 2 (optional for BOX3H) BIXMR2 Blue 6►4 Black GOL4 BATK4 1 2 3 4 5 24 V~ Transformer POWER ALARM Step-by-step C NO 14 0...

  • Page 2: Table Of Contents

    Index Subject Page General safety precautions EC declaration of conformity Technical data 3.1 Applications Connection of power supply Commands Outputs and accessories Adjustments Radio receiver operation Start-up Troubleshooting This symbol indicates instructions or notes regarding safety, to which special attention must be paid. This symbol indicates useful information for the correct operation of the product.

  • Page 3: General Safety Precautions

    1. General safety precautions Failure to respect the information given in this manual may cause personal injury or damage to the device. Keep these instructions for future reference. This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed by qualified personnel, in accordance with Good Working Methods and in compliance with the current regulations.

  • Page 4: Ec Declaration Of Conformity

    2. EC DECLARATION OF CONFORMITY Manufacturer: DITEC S.p.A. Address: via Mons. Banfi, 3 21042 Caronno P.lla (VA) - ITALY declares that the control panel E1HBOX (with receiver 433.92 MHz) is in conformity with the provisions of the following EC directives: R&TTE Directive 1999/5/EC;...

  • Page 5: Commands

    COMMANDS Command Function Description N.O. STEP-BY-STEP With DIP1=OFF and TC<MAX, the closing of the contact acti- WITH AUTOMATIC vates opening or closing operations in the following sequence: CLOSING open-stop-close-open. NOTE: the stop is not permanent but lasts for a duration set by TC.

  • Page 6: Outputs And Accessories

    OUTPUTS AND ACCESSORIES Output Value - Accessories Description Accessories power supply. Power supply output for external ac- cessories, including automation status lamp. 24 V 0.3 A 0 1 2 3 Automation status lamp (proportional). The light switches off when the automation is closed; the light 24 V 3 W switches on when the automation is open;...

  • Page 7: Adjustments

    ADJUSTMENTS Description DIP1 Command 1-5 operation. Step-by-step. Opening. NOTE: it also sets operating mode of the plugin cards connected on AUX. DIP2 Motor installation position. Central or right side. Left side. The installation position is intended by viewing the automation from the side be- ing examined.
  • Page 8 Trimmer Description VA-VC Opening speed adjustment. Adjusts the opening speed. Closing speed adjustment. Adjusts the closing speed. Setting automatic closing time. From 0 to 120 s. With DIP3=OFF, once a safety switch has been activated, the counter starts as soon as the safety switch is released (for example after passing through the photocells), and lasts for a period of time set with trimmer TC (50%).

  • Page 9: Radio Receiver Operation

    RADIO RECEIVER OPERATION 10 s The control panel is equipped with a radio receiver with a frequency of 433.92 MHz. The antenna consists of a rigid wire, 173 mm long, connected to the ANT clamp. It is possible to increase the range of the radio by connecting the antenna of the flashing lights, or by installing the tuned BIXAL antenna.

  • Page 10: Start-Up

    START-UP WARNING The operations in point 4 are performed without safety devices. The trimmer can only be adjusted with the automation idle. Make a jumper for the N.C. safety contacts. If installed, adjust the opening and closing stop limit switches. NOTE: limit switches must be kept pressed until the operation has been completed.

  • Page 11: Troubleshooting

    10. TROUBLESHOOTING Problem Possible causes Remedy The automation does not No power. Check that the control panel is pow- open or close. (POWER ALARM led off). ered correctly. Short circuited accessories. Disconnect all accessories from termi- (POWER ALARM led off). nals 0-1 (voltage must be 24 V ) and reconnect one at a time.
  • Page 12 ASSA ABLOY Entrance Systems AB Lodjursgatan 10 SE-261 44, Landskrona Sweden © ASSA ABLOY...
