13.

EXAMPLE APPLICATION OF AUTOMATION WITH TWO SWINGING DOOR WINGS

When the E2H control panel is
used in applications for double
wings automations with overlap-
lowing connections.

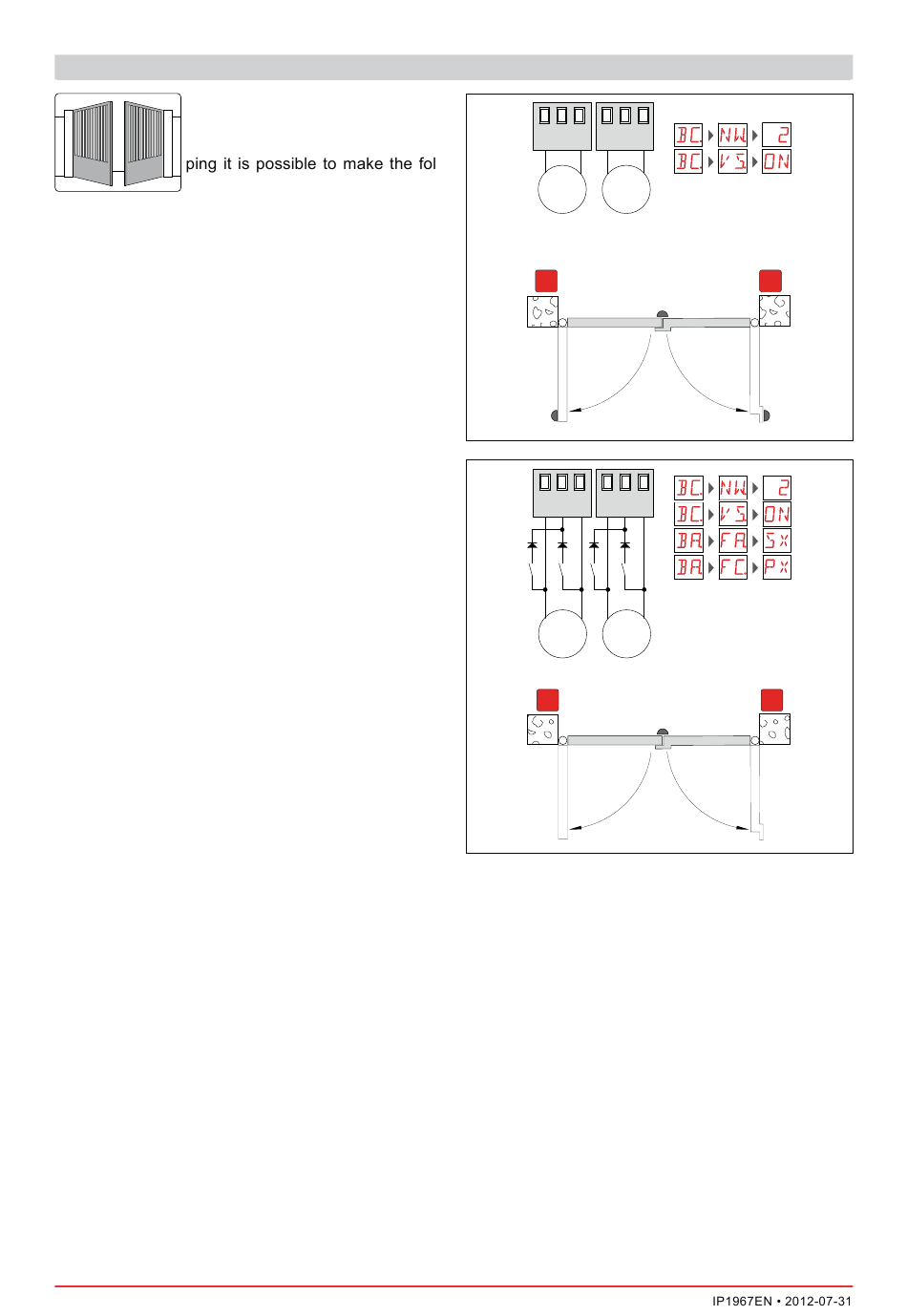

(Fig. 13.1) Installation with mechanical doorstops in
opening and closing phases, without the use of elec-
tric limit switches.
(Fig. 13.2) Installation with mechanical doorstop in
closing phases, with the use of electric limit switches.
36 35 34 33 32 31
-
24V= 24V=
Motor 2 Motor 1
2
36 35 34 33 32 31
24V=
Motor 2 Motor 1
2
33
1
Fig. 13.1
24V=
1
Fig.13.2
