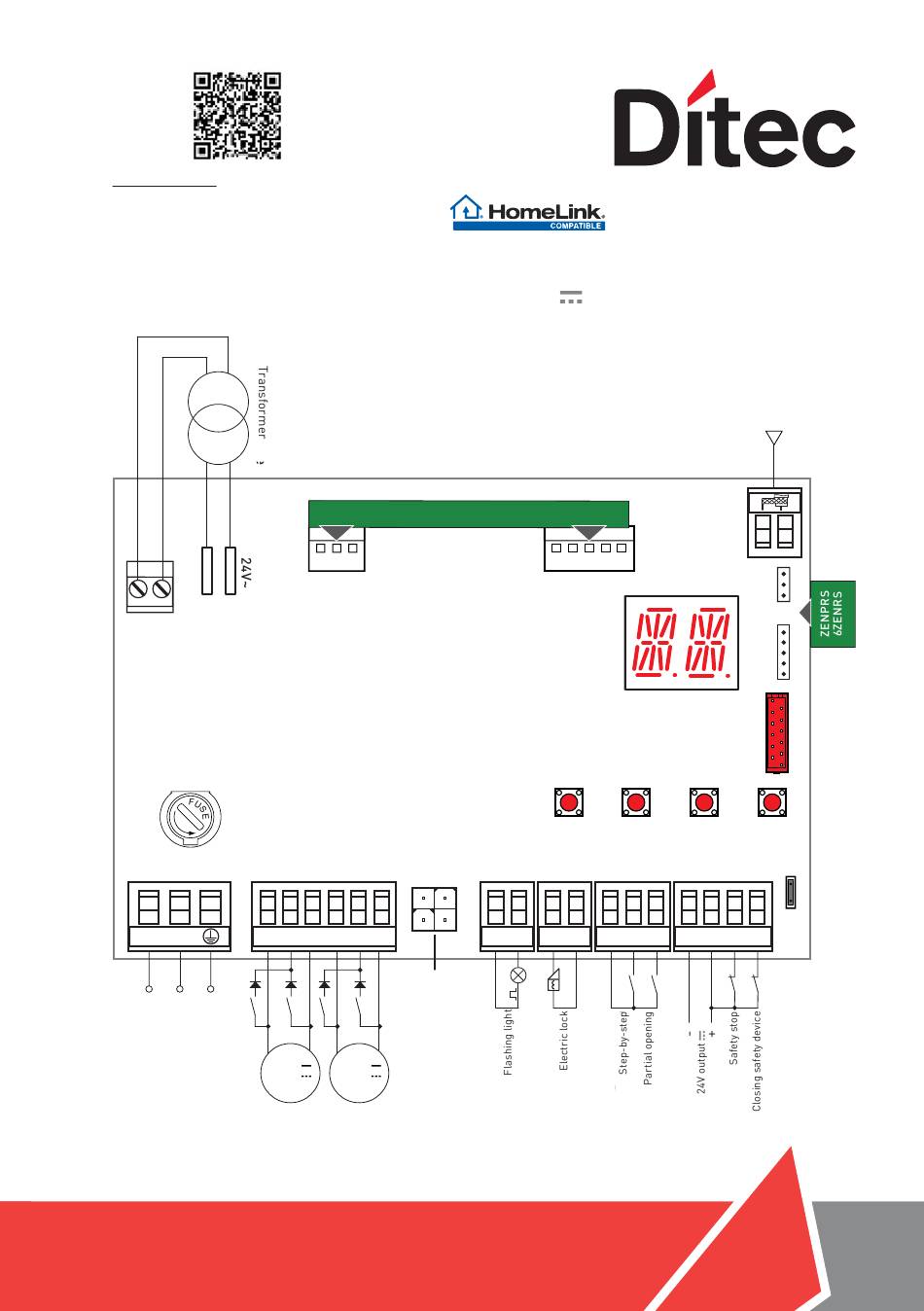

IP2251EN • 2021-05-19

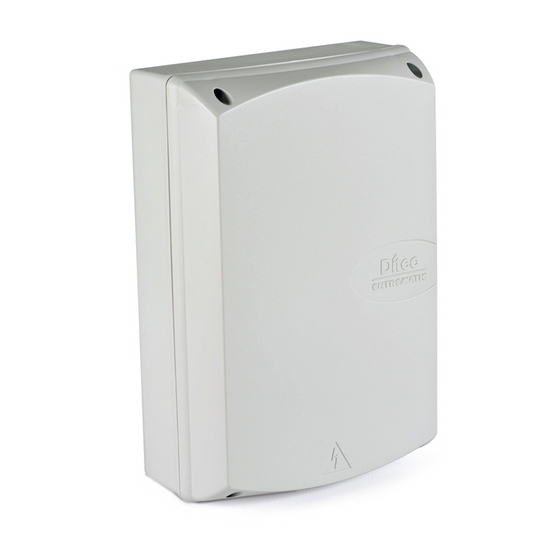

Ditec LCU30H
Installation manual for the control panel of
automations with one or two 24V
motors
(translation of the original instructions)
Antenna
Antenna
SCHEDA AD INNESTO
PLUG-IN BOARD
TRF
AUX
RDX
C
O
M
ESC
ENTER
DOWN
UP
F1
JR1
+
LP
-
-
LK
+
L
N
36 35 34 33 32 31
1 5 20
0 1 6 8
BAT KIT
Alimentazione
Power supply
24V
24V
Motor 2
Motor 1
Motore 2
Motore 1
www.ditecautomations.com
Advertisement
Table of Contents
Related Manuals for DITEC LCU30H
Summary of Contents for DITEC LCU30H
- Page 1 IP2251EN • 2021-05-19 Ditec LCU30H Installation manual for the control panel of automations with one or two 24V motors (translation of the original instructions) Antenna Antenna SCHEDA AD INNESTO PLUG-IN BOARD ENTER DOWN 36 35 34 33 32 31 1 5 20...
-
Page 2: Table Of Contents
Contents Subject Page General safety precautions 1.1 Safety functions EC Declaration of Conformity Technical specifications 3.1 Applications Installation and electrical connections 4.1 Maintenance 4.2 Standard installation 4.3 Connections diagram for standard installation Programming 5.1 Switching the display ON and OFF 5.2 Navigation keys 5.3 Menu map Quick start-up sequences... -
Page 3: General Safety Precautions
1. General safety precautions Failure to observe the information given in this manual may lead to personal injury or damage to the equipment. Keep these instructions for future reference This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. -
Page 4: Safety Functions
The safety function cannot be bypassed either temporarily or automatically. Fault exclusion has not been applied. 2. EC Declaration of Conformity ASSA ABLOY Entrance Systems AB declares that the Ditec LCU30H control panel complies with the fundamental requisites and other relevant requirements laid down by the following EC directives: EMC Directive 2014/30/EU;... -
Page 5: Installation And Electrical Connections
4. Installation and electrical connections • Perforate the relevant points in the bottom part of the box (Fig. 4.1). • Fix the control panel permanently. You are advised to use round-head screws (max head Ø 10mm) with a cross (hole centre distance indicated in Fig. 4.2 ). •... - Page 6 Fig. 4.2 Fig. 4.1 Fig. 4.3 Fig. 4.4 Fig. 4.5...
-
Page 7: Maintenance
4.1 Maintenance The control panel doesn't require any special maintenance. Make regular checks to ensure the seals on the box and the electrical connections are in good condition. 4.2 Standard installation Ref. Description Cable Transmitter Flashing light 2 x 1mm² Antenna (integrated in the flashing light) coaxial 50Ω... -
Page 8: Connections Diagram For Standard Installation
4.3 Standard installation diagram... -
Page 9: Programming
5. Programming NOTE: pressure on the keys may be quick (less than 2s) or prolonged (longer than 2 s). Unless specified otherwise, quick pressure is intended. To confirm the setting of a parameter, prolonged pressing is necessary. 5.1 Switching the display ON and OFF The procedure to switch on the display is as follows: ENTER •... -
Page 10: Menu Map
5.3 Menu map Automation selection Electric lock Automatic release time closing time Selection of the number of gate wings Operation time - Partial opening motor 1 measurement adjustment Residential 0 Operation time - Automatic closing motor 2 time after partial Residential 1 opening Function of output -LK+... - Page 11 Loading of last Adjustment of approach Battery mode configuration set speed during closure Renew automatic closing Password time after safety device Selection of opening setting release limit switch mode Learning speed Selection of closure Password setting limit switch mode insertion Selection of device con- nected to terminals 1-6 Deletion of...
-
Page 12: Quick Start-Up Sequences
6. Quick start-up sequences 6.1 Selection of automation type Example of PWR25 automation selection DOWN ENTER DOWN ENTER DOWN ENTER → → → → → x2 s Example of PWR35 automation selection ENTER DOWN ENTER DOWN ENTER DOWN → → →... -
Page 13: Configuration Of The Limit Switches
6.5 Configuration of the limit switches Example 1 - Door wing stops against mechanical end stops (standard setting) DOWN ENTER DOWN ENTER ENTER → → → → DOWN ENTER DOWN ENTER ENTER → → → → Example 2 - Door wing stops against limit switches DOWN ENTER DOWN... -
Page 14: Application Examples
7. Application examples 7.1 Automations with two swinging gates When the Ditec LCU30H control panel is used in applications for automations with two overlapping swinging gate wings, the following connections can be made: 3635 34 3332 31 3635 34 3332 31... -
Page 15: Commands
8. Commands You are advised to read paragraph 11 for all the details about the possible adjustments. Description Command Function When selecting → → , the closure of the contact activates a sequential opening or closing operation: opening-stop-closing-opening. WARNING: if automatic closure is enabled, the duration of the stop STEP-BY-STEP can be defined by selecting →... -
Page 16: Sofa1-Sofa2 Or Gopavrs Self-Controlled Safety Edge
8.1 SOFA1-SOFA2 or GOPAVRS self-controlled safety edge Command Function Description Insert the SOFA1-SOFA2 or GOPAVRS device in the slot SOFA1-SOFA2 for plug-in boards AUX1 or AUX2. GOPAV SAFETY TEST If the test fails, an alarm message appears on the display. When selecting →... -
Page 17: Jumper Setting
Value of Output Description accessories The control panel is fitted with a housing for modules of the 6ZENRS radio receiver type (433.92MHz). Can be replaced with a radio receiver module of the ZENPRS type (868.35MHz). ZENRS The operating mode is selected via →... -
Page 18: Adjustments
Adjustments NOTE: depending on the type of automation and control panel, some menus may not be available. 11.1 Main menu Display Description AT - Automatic Configurations. The menu allows you to manage the automatic configurations of the control panel. BC - Basic Configurations. The menu allows you to display and modify the main settings of the control panel. -
Page 19: Second Level Menu - At (Automatic Configurations)
11.2 Second level menu - AT (Automatic Configurations) Selections Display Description available AS - Automation selection This selection pre-sets the type of motor and a sub-set of parameters linked to the kinematic mechanism of the automation for a standard installation. See "Selection of automation type", paragraph 11.2.1. -
Page 20: Selecting The Type Of Automation At → As And Specific Default Settings
11.2.1 Selection of automation type → and specific default settings Model R1-R2 VA - PO-PC Type of Thrust Learning Accel- Accel- Ramp proach automation Speed speed eration eration start-up speed obsta- during time time speed cles and opening during during current opening closure... -
Page 21: Additional Bc Level Parameters That Can Be Configured (Available With At → Aa Enabled)
11.3.1 Additional BC level parameters that can be configured (availa- ble with → enabled) Selections Display Description available HR - Enabling of "operator present" function ON - Enabled OF - Disabled NOTE: Set → only if → → C5 - Operation of command associated with contact 1-5 1-5 - Step-by-step 1-3 - Opening 64 - Functioning of safety stop/closing command. -
Page 22: Second Level Menu - Ba (Basic Adjustment)
11.4 Second level menu - BA (Basic Adjustment) Selections Display Description available TC - Setting of automatic closing time [s] It is set with different intervals of sensitivity. • from 0” to 59” with intervals of 1 second • from 1’ to 2’ with intervals of 10 seconds 1’00”... -
Page 23: Additional Ba Level Parameters That Can Be Configured (Available With At → Aa Enabled)
Selections Display Description available TR - Motor delay time [s] Delay time for closure of gate wing 1 in relation to gate wing 2. 00-30 s NOTE: make adjustments gradually and only after performing at least three complete operations to allow the control panel to be set correctly and detect any friction during operations. - Page 24 Selections Display Description available PC - Adjustment of approach speed during closing [V] Indicates the speed from the end of the deceleration ramp to the end of the closing stroke. 03 - Minimum See paragraph 11.2.1 10 - Maximum OO - Obstacle detection limit during opening [%] Indicates the percentage of the distance travelled during →...
-
Page 25: Second Level Menu - Ro (Radio Operations)
Selections Display Description available FF - Function of output +LP- 00 - courtesy light 01 - electric lock 02 - electric lock + release stroke 03 - ON-OFF flashing light 04 - ON-OFF flashing light for LED without oscillator 05 - fixed light with internal oscillator 06 - proportional indicator light for open gate (with signal of battery operation) 07 - fixed indicator light for open gate (automation not closed) 08 - automation closed (for fail-safe electromagnets) -
Page 26: Additional Ro Level Parameters That Can Be Configured (Available With At → Aa Enabled)
RK - Menu navigation using remote control keyboard ON - Enabled OF - Disabled 3 3 3 3 2 2 4 4 With the display turned off, quickly type in the sequence of keys from the stored remote control you want to use. Make sure all the CH keys are stored. -
Page 27: Second Level Menu - Sf (Special Functions)
Selections Display Description available EA - Total memory deletion ENTER ENTER → → → 2” 2” RE - Setting memory opening from remote control OF - Disabled ON - Enabled When enabled (ON), the remote programming is activated. To store new remote controls without using the control panel, refer to the remote control instructions. -
Page 28: Additional Sf Level Parameters That Can Be Configured (Available With At → Aa Enabled)
11.6.1 Additional SF level parameters that can be configured (availa- ble with → enabled) Display Description SP - Setting the password ENTER ENTER DOWN → → → → → [esempio] 2” (example) NOTE: this can only be selected when the password is not set. Setting the password prevents unauthorised personnel from accessing selections and adjust- ments. -
Page 29: Additional Cc Level Parameters That Can Be Configured (Available With At → Aa Enabled)
Display Description CP - Display of partial operations counter ENTER 716 manovre [esempio] 716 operations (example) → → → → CH - Display of power supply hour counter ENTER 215 ore di funzionamento 215 operating hours via battery → → →... -
Page 30: Additional Em Level Parameters That Can Be Configured (Available With At → Aa Enabled)
Selections Display Description available LB - Indication that batteries are almost flat 00 - Visualisation on display (alarm message 01 - Visualisation on flashing light (with the automation idle, 2 flashes are made and then repeated every hour) and on display (alarm message 02 - Visualisation on "open gate"... - Page 31 Selections Display Description available D8 - Selection of device connected to terminals 1-8 NO - None SE - Safety edge S41 - Safety edge with safety test PH - Photocells P41 - Photocells with safety test R9 - Enabling automatic closing after command 1-9 via radio (STOP). ON - Enabled OF - Disabled When enabled (ON), after a command 1-9 via radio, the automation...
- Page 32 Selections Display Description available LG - Switch-on time for independently commanded courtesy light [s] To enable this parameter, set at least one of the selections → → as a courtesy light. It is set with different intervals of sensitivity. NO - Disabled - from 01”...
-
Page 33: Signals Visualised On The Display
Selections Display Description available TN - Setting of intervention temperature for NIO electronic anti-freeze system and automatic HS ramps [°C] This value does not refer to the ambient temperature, but to the internal control panel temperature. HS - Automatic ramp adjustment ON - Enabled OF - Disabled When enabled (ON), at low ambient temperatures the start time... -
Page 34: Display Of Safety Devices And Commands
Display Description Display Description Automation stopped in intermediate Automation in partial opening position Automation closing Automation partially open 12.2 Display of safety devices and commands NOTE: the safety device and command display mode is only visible with Display visualis- ation mode set at 01 or 03. Display Description Display... -
Page 35: Visualisation Of Alarms And Faults
12.3 Visualisation of alarms and faults WARNING: the visualisation of alarms and faults is possible with any visualisation se- lection. The signalling of alarm messages takes priority over all other displays. Type of Display Description Operation alarm M0 - Automation type not selected Select a type of automation from the →... - Page 36 Type of Display Description Operation alarm V0 - Request for maintenance intervention Proceed with the scheduled maintenance intervention. I5 - No voltage 0-1 (faulty voltage regulator Check there is no short circuit in connection or short-circuit on accessories) 0-1. If the problem persists, replace the control panel.
- Page 37 Type of Display Description Operation alarm R0 - Insertion of a storage module contain- To save the system configurations on the ing over 100 stored remote controls storage module, delete any stored remote WARNING: the → → setting is controls and bring the total to less than 100. made automatically.
-
Page 38: Troubleshooting
13. Troubleshooting Alarm Problem Possible cause Operation signalling The control panel No power supply. Check the power supply cable and the does not switch on relative wiring Overload on output 0-1 Disconnect any loads connected to terminal 1 The automation No power.
