DITEC E1T Installation Manual

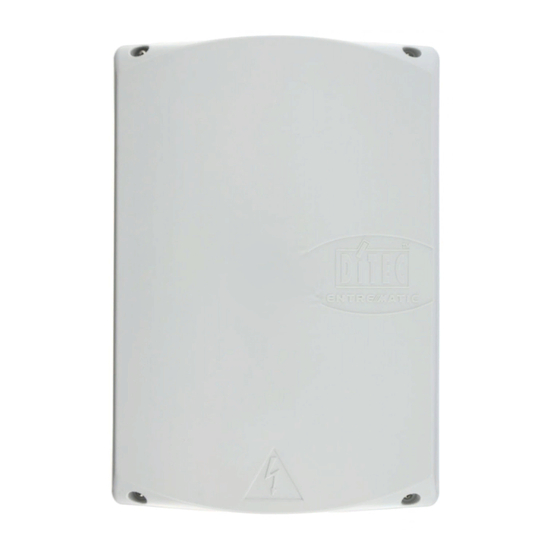

Control panel for automations with one 400v three-phase motor
Hide thumbs Also See for E1T:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation manual for control panel for automations with one 400V three-phase motor.
EL07L
1
J7
DO NOT
DO NOT
USE
+LK -
ON
RP
17
12
11
17 14 12 11
PT3
PT4
www.ditecautomations.com
J1
COM
USE
SO
EO
ON
OFF
1
2 3 4 5 6
TC
IN
SA
POWER
0
0
0 1 1 2 3 4 6 8 9 20 41
E1T
IP1897EN
rev. 2012-03-22
J2
GOL4
Transformer
L1 L2 L3
F3 F2 F1
Power supply
EL07PW1
F4
Motor
3~

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E1T and is the answer not in the manual?

Questions and answers

Related Manuals for DITEC E1T

Summary of Contents for DITEC E1T

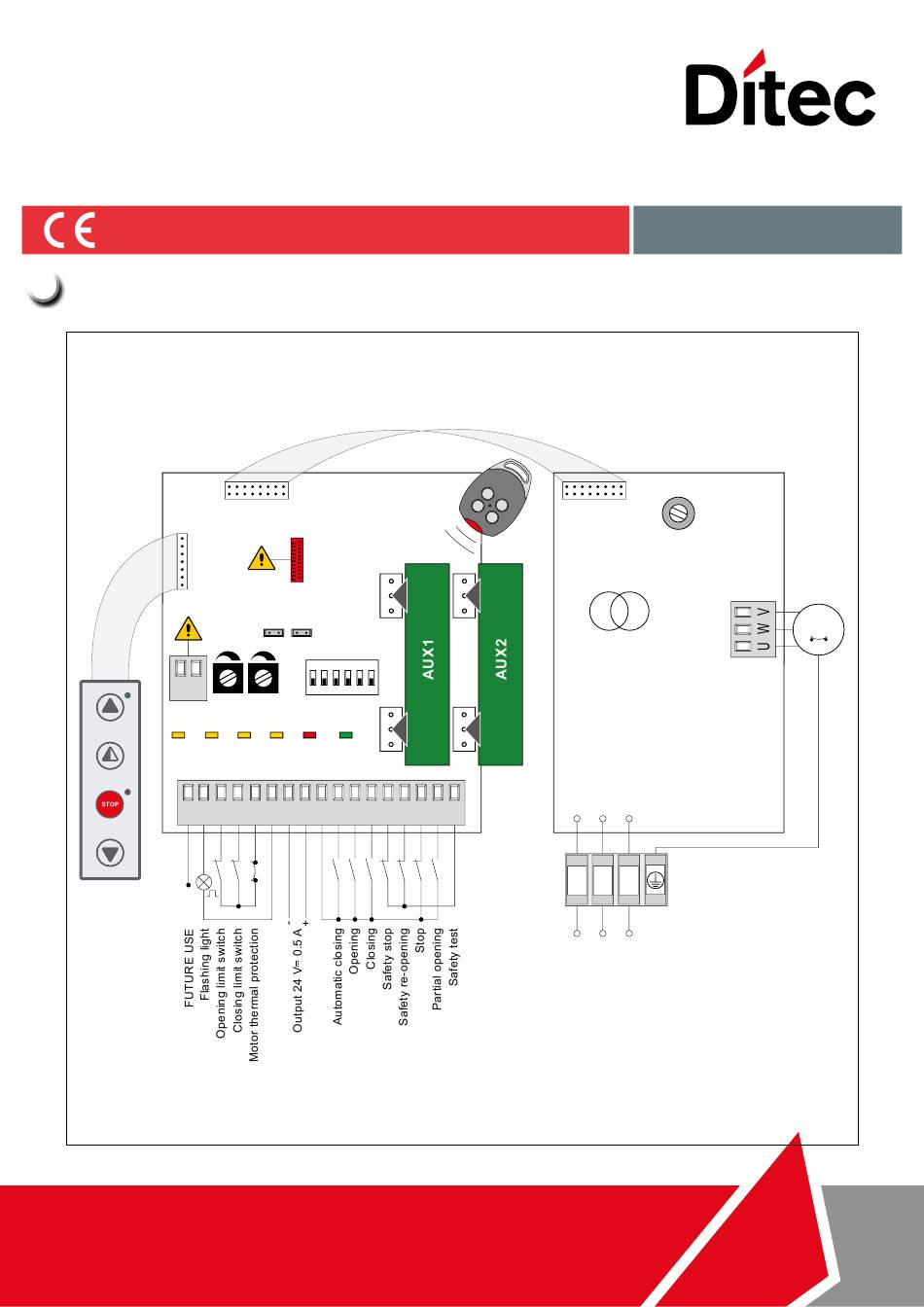

  • Page 1 IP1897EN rev. 2012-03-22 Installation manual for control panel for automations with one 400V three-phase motor. EL07L EL07PW1 GOL4 DO NOT Transformer Motor DO NOT +LK - 2 3 4 5 6 POWER L1 L2 L3 17 14 12 11 0 1 1 2 3 4 6 8 9 20 41 F3 F2 F1 Power supply www.ditecautomations.com...
  • Page 2 INDEX Subject Page General safety precautions EC declaration of conformity Technical data 3.1 Applications Connection of power supply Commands 5.1 SOFA1-SOFA2 self-controlled safety edge Outputs and accessories Adjustments Start-up Troubleshooting 10. Example application for sliding gates 11. Example application for sectional overhead doors CAPTION This symbol indicates instructions or notes regarding safety issues which require particular attention.

  • Page 3: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS This installation manual is intended for qualified personnel only. The installation, the power connections and the settings must be completed in conformity with Good Working Methods and with the regulations in force. Before installing the product, carefully read the instructions. Bad installation could be hazardous. The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environment or left within reach of children, as these are a potential source of hazard.

  • Page 4: Ec Declaration Of Conformity

    2. EC DECLARATION OF CONFORMITY Manufacturer: DITEC S.p.A. Address: via Mons. Banfi, 3 21042 Caronno P.lla (VA) - ITALY declares that the control panel E1T is in conformity with the provisions of the following EC directives: EMC Directive 2004/108/EC; Low Voltage Directive 2006/95/EC.

  • Page 5: Hold-To-Run Function

    COMMANDS Command Function Description N.O. AUTOMATIC The permanent closing of the contact enables automatic clos- CLOSING ing. N.O. OPENING With DIP1=ON, the closing of the contact activates the opening operation. STEP-BY-STEP With DIP1=OFF, the closing of the contact activates opening or closing operations in the following sequence: open-stop-close- open.

  • Page 6: Outputs And Accessories

    OUTPUTS AND ACCESSORIES Output Value - Accessories Description Accessories power supply. Power supply output for external ac- cessories, including automation status lamp. 24 V 0.5 A 0 1 2 3 Open automation lamp. The light switches off when the automa- 24 V 3 W tion is closed.
  • Page 7 ADJUSTMENTS Description DIP1 Command 1-3 operation. Step-by-step. Opening. NOTE: it also sets operating mode of the plugin cards connected on AUX1 and AUX2. DIP2 Restore automatic closing time. 100% DIP3 3 seconds preflashing. Disabled during opening. Enabled for both opening Enabled only with automatic and closing.
  • Page 8 START-UP WARNING The operations in point 3 are performed without safety devices. The trimmer can only be adjusted with the automation idle. Make a jumper for the N.C. safety contacts. Set DIP4=OFF. Switch on and check that the automation is operating correctly with subsequent opening and closing commands.

  • Page 9: Troubleshooting

    TROUBLESHOOTING Problem Possible causes Remedy The automation does not No power. Check that the control panel is pow- open or close. (POWER led off). ered correctly. Short circuited accessories. Disconnect all accessories from termi- (POWER led off). nals 0-1 (voltage must be 24 V ) and reconnect one at a time.
  • Page 10 10. EXAMPLE APPLICATION FOR SLIDING GATES DIP4=OFF 1 2 3 4 5 6 (Fig. 10.1) When the control panel is used in applications for sliding gates: 17 14 12 11 0 1 1 2 3 4 6 8 9 20 41 set DIP4=OFF;...
  • Page 11 11. EXAMPLE APPLICATION FOR SECTIONAL OVERHEAD DOORS DIP1=ON DIP2=ON DIP4=OFF 1 2 3 4 5 6 (Fig. 11.1) When the control panel is used in applications for sectional overhead doors: 17 14 12 11 0 1 1 2 3 4 6 8 9 20 41 set DIP1=ON;...
  • Page 12 ASSA ABLOY Entrance Systems AB Lodjursgatan 10 SE-261 44, Landskrona Sweden © ASSA ABLOY...
