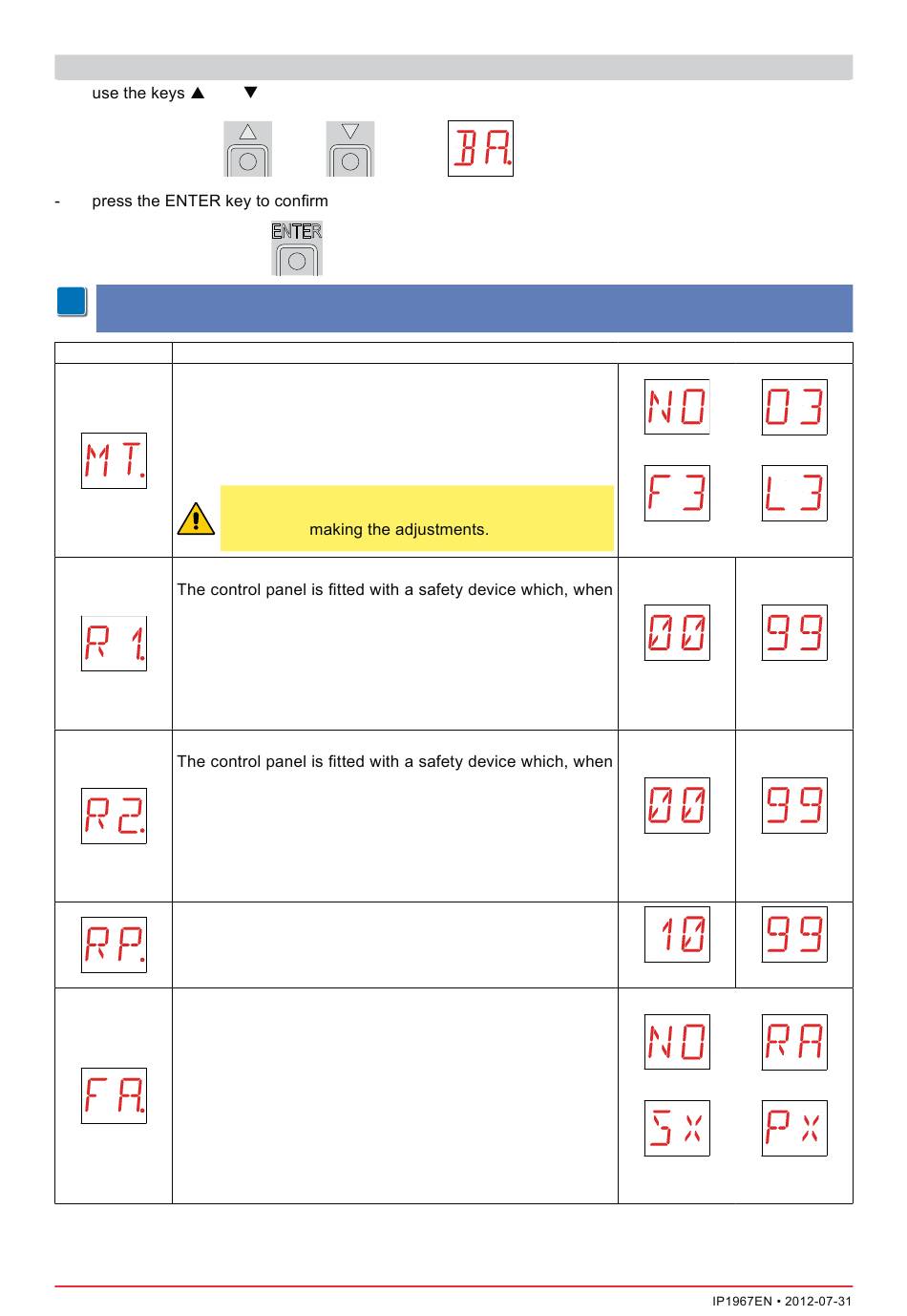

9.6 Second level menu - BA (Basic Adjustments)
- and
i
WARNING: the gap between the adjustment values of the parameters may vary according to the type
of automation.
Display
MT - Selection of automation type.
NO - None
O3 - OBBI-ARC
F3 - FACIL
L3 - LUXO
WARNING: it is essential to set the type of automa-
tion before
R1 - Adjustment of motor 1 thrust on obstacles. [%]
it detects an obstacle:
- in opening, stops the movement with a disengagement
operation;
- in closing, before the deceleration, inverts the movement;
- in closing, during the deceleration, stops or inverts the
movement according to the type of limit switch installed.
R2 - Adjustment of motor 2 thrust on obstacles. [%]
it detects an obstacle:
- in opening, stops the movement with a disengagement
operation;
- in closing, before the deceleration, inverts the movement;
- in closing, during the deceleration, stops or inverts the
movement according to the type of limit switch installed.
RP - Adjustment of the partial opening measurement. [%]
Adjusts the percentage of operation in relation to the total
opening of the automation.
FA - Selection of opening limit switch mode.
NO - None
RA - Deceleration limit switch
(after the activation, the door wing slows down its mo-
vement)
SX - Stop limit switch
(after the activation, the door wing stops its movement)
PX - Proximity limit switch
(after the activation, the door wing continues as far as
the end stop)
to select the required function
Description
15
NONE OBBI-ARC
FACIL LUXO
0% 99%
0% 99%
10% 99%
NONE DECELERATION
STOP PROXIMITY
