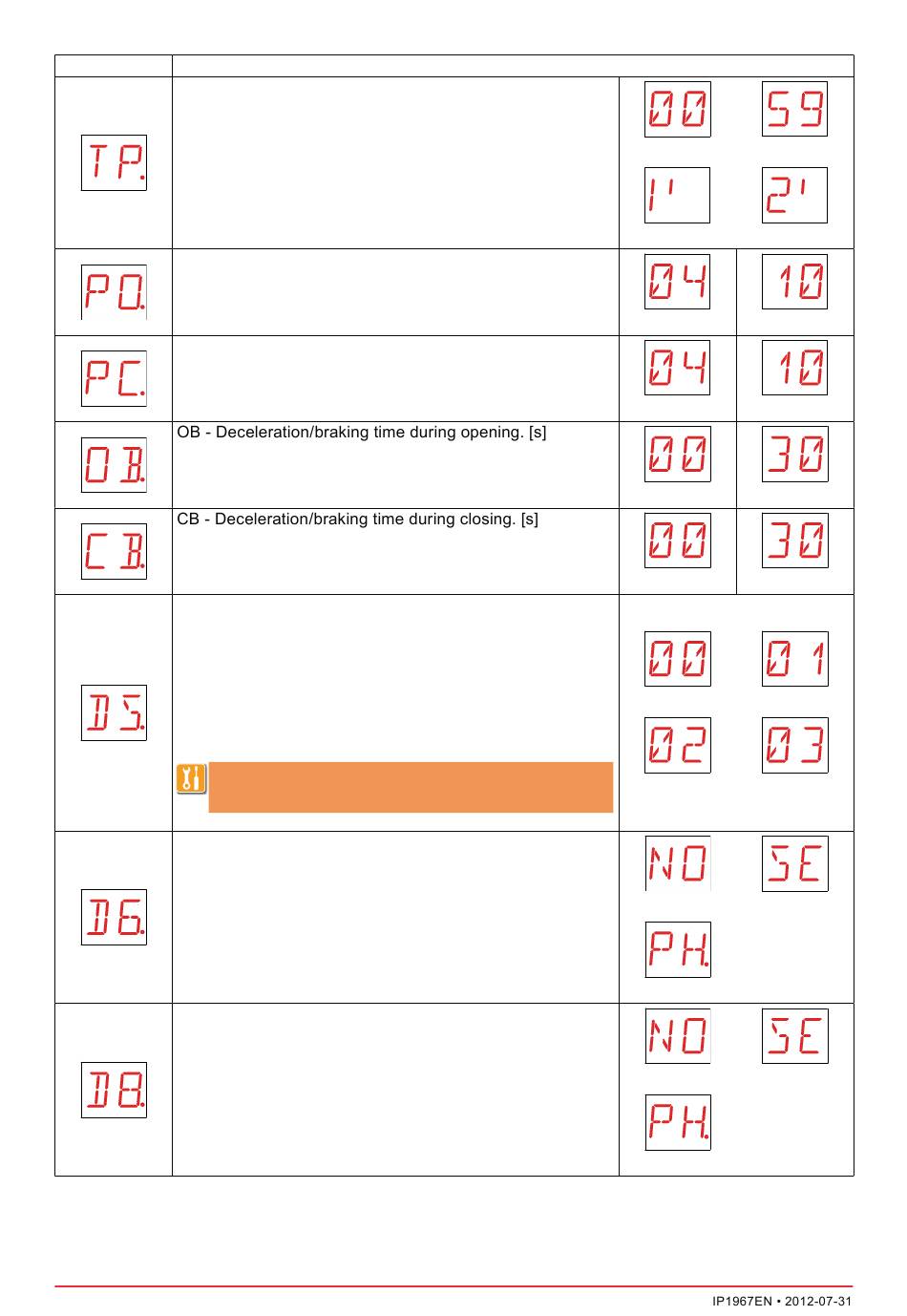

Display
TP - Setting of automatic closing time after partial opening.
[s]
Adjustment occurs with intervals of varying sensitivity.
- from 0 to 59 sec with 1 sec intervals;
- from 1 to 2 min with 10 sec intervals.
PO - Approaching/deceleration speed during opening. [V]
PC - Approaching/deceleration speed during closing. [V]
DS - Setting of display viewing mode.
00 - No display
01 - Commands and safety devices with radio test (see
paragraph 10.2)
02 - Automation status (see paragraph 10.1)
03 - Commands and safety devices (see paragraph
10.2)
NOTE: setting 01 allows to view the reception of a ra-
dio transmission for checking its range.
D6 - Selecting device connected to terminals 1-6.
NO - None
SE - Safety edge
PH - Photocells
D8 - Selecting device connected to terminals 1-8.
NO - None
SE - Safety edge
PH - Photocells
Description
25
0 SECONDS 59 SECONDS
1 MINUTE 2 MINUTES
MIN MAX
MIN MAX
MIN MAX
MIN MAX
NONE RADIO TEST
COMMANDS
STATUS
NONE EDGE
PHOTOCELLS
NONE EDGE
PHOTOCELLS
