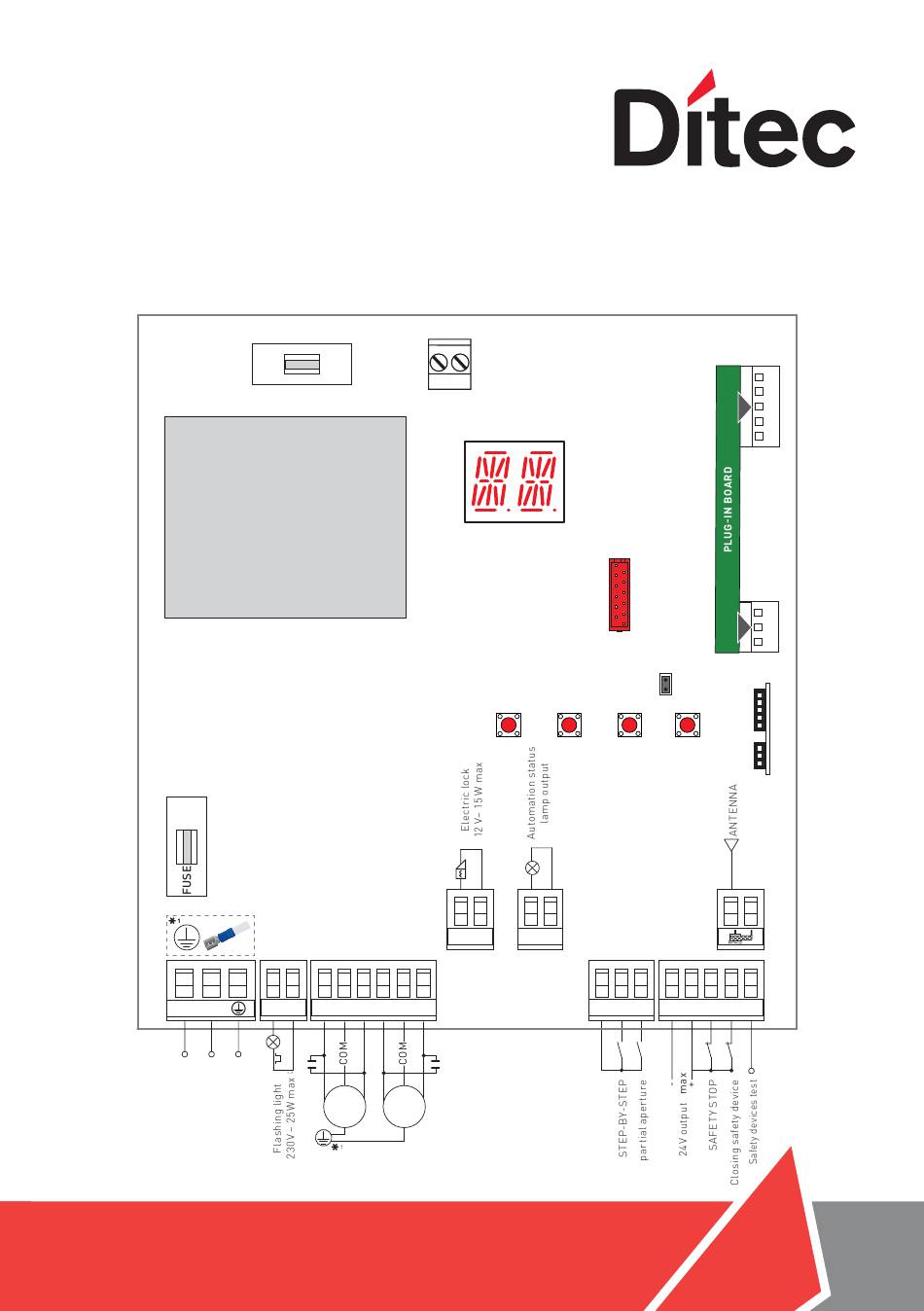

IP2368EN • 2020-07-10
Ditec LCA70
Control panel installation manual for automations with
one or two 230V~ motors
(translation of the original instructions)
F2
FUSE
T3.15A
F1
F5A
LP
L
N
Alimentazione
Power supply
230 V~
230 Vac
50 Hz
50 Hz
www.ditecentrematic.com
24 V~
LK
~
U W V X Z
Y
M1
M2
1~
1~
COM
ESC
ENTER
DOWN
~
13
30
30 5 20
AUX1
JR1
R
A
UP
D
I
O
R
X
0 1 6 8 41
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DITEC LCA70
Summary of Contents for DITEC LCA70
- Page 1 IP2368EN • 2020-07-10 Ditec LCA70 Control panel installation manual for automations with one or two 230V~ motors (translation of the original instructions) AUX1 FUSE T3.15A 24 V~ ENTER DOWN U W V X Z 30 5 20 0 1 6 8 41...
-
Page 2: Table Of Contents
Contents Subject Page General safety precautions 1.1 Safety functions EC Declaration of Conformity Technical specifications 3.1 Applications Installation and electrical connections 4.1 Maintenance 4.2 Standard installation 4.3 Standard installation wiring diagram Commands and safety devices 5.1 Command inputs 5.2 Safety inputs Outputs and accessories Jumper setting Application examples... -
Page 3: General Safety Precautions
1. General safety precautions Failure to observe the information given in this manual may lead to personal injury or damage to the equipment. Keep these instructions for future reference This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. -
Page 4: Safety Functions
The safety function cannot be bypassed either temporarily or automatically. Fault exclusion has not been applied. 2. EC Declaration of Conformity Entrematic Group AB declares that the Ditec LCA70 control panel is compliant with the fundamental requisites and other relevant requirements defined down by the following EC directives: EMC Directive 2014/30/EU;... -
Page 5: Applications
3.1 Applications 4. Installation and electrical connections • Perforate the relevant points in the bottom part of the box (Fig. 4.1, page 6). • Fix the control panel firmly in place. You are advised to use convex head screws (max head Ø 10mm) with a cross imprint (the centre distance for the holes is shown in Fig. - Page 6 Fig. 4.1 Fig. 4.2 Fig. 4.3 Fig. 4.4...
-
Page 7: Maintenance
4.1 Maintenance The control panel doesn't require any special maintenance. Make regular checks to ensure the seals on the box and the electrical connections are in good condition. 4.2 Standard installation Ref. Description Cable Transmitter Flashing light 2 x 1mm² RG-58 coax Antenna (integrated in the flashing light) cable (50Ω) -
Page 8: Standard Installation Wiring Diagram
4.3 Standard installation wiring diagram 5. Commands and safety devices You are advised to read paragraph 11 for all the details about the possible adjustments. WARNING: terminal 30 (common positive for commands) has the same functions as terminal 1 and for this reason, the commands visible on the display are indicated with 1-5, 1-3, 1-4, etc. -
Page 9: Command Inputs
5.1 Command inputs Command Function Description When selecting → → , closing the contact starts a sequential opening or closing operation: opening-stop-clos- ing-opening. STEP-BY- WARNING: if automatic closure is enabled, the duration of the stop STEP can be defined by selecting →... -
Page 10: Jumper Setting
Value of Output Description accessories Input for GOL148REA external antenna or rigid wire antenna supplied according to the operating frequency of the receiver module used. ANTENNA 230V flashing light For connection of a 230 V~ flashing light with auto-flashing function. 230V~ 25W max Electric lock... -
Page 11: Application Examples
WARNING: make sure that the operating forces of the gate wings comply with the EN12453 standard. 8.1 Automations with two swinging gates When the Ditec LCA80 control panel is used in applications for automations with two overlapping swinging gate wings, the following connections may be made: Motor 1... -
Page 12: Using Menus
9. Using menus NOTE: pressure on the keys may be quick (less than 2 s) or prolonged (longer than 2 s). Unless specified otherwise, quick pressure is intended. To confirm the setting of a parameter, prolonged pressing is necessary. 9.1 Switching the display ON and OFF The procedure to switch on the display is as follows: ENTER •... -
Page 13: Menu Map
9.3 Menu map Selection of Automatic closure automation operation enabling Adjustment of thrust on mode obstacles approaching during opening Selection of the Automation status Adjustment of thrust on number of gate wings at switch-on obstacles approaching during closing Contact command Reversal safety operation 30-5 operation... - Page 14 Remote control Display of min/max Stroke estimate correction storage temperatures recorded Visualisation of number of Selection of operating remote controls stored Firmware update mode for device connected to terminals 1-6 Maximum number of remote controls that can be stored in the integrated NIO intervention memory temperature and...
-
Page 15: Setting Up Product For First Use
10. Setting up product for first use Use the WIZARD (WZ) wizard or the level two AT menu (automatic configuration) to set the product up rapidly with a quick configuration procedure [see parag. 11.2]. For detailed, customised configuration, use the main menus 10.1 WZ configuration wizard menu To access the WZ quick configuration wizard menu: Hold down the ENTER button for 2 seconds. - Page 16 • 03. Timed operation without deceleration Recommended use: for electromechanical or hydraulic motors installed on gates with impeded movement in proximity of outermost opening and closing positions, and which do not provide for mechanical stops on opening except as an emergency measure in case of overrun.
-
Page 17: Basic Example Of Start-Up
To save the configuration: In the CO parameter select YS (yes) and press the ENTER button for 2 seconds. After saving, a board POWER RESET cycle is performed automatically: ENTER ENTER → → for 2 sec To quit without saving changes: Select the option NO for the parameter CO and then press and hold ENTER for 2 seconds ENTER ENTER... -
Page 18: Adding Remote Controls
Step-by-step mode with automatic closure 1 min (residential use) [standard settings] DOWN ENTER DOWN ENTER → → → → → → Opening mode with automatic closure 1 min (condominium use) DOWN ENTER DOWN ENTER → → → → → → 10.3.2 Adding remote controls DOWN ENTER... -
Page 19: Second Level Menu - At (Automatic Configurations)
From the main menu you can access the second level menu as follows: DOWN • use the keys to select the required function; ENTER • press to confirm. After confirming the selection, you access the second level menu. For each function of the main menu, there are also additional configurations that can be viewed by enabling the function (see the following paragraph). -
Page 20: Second Level Menu - Bc (Basic Configurations)
H0 - Predefined setting, residential use 0, detached house This selection loads predefined values for certain standard parameters: AC - Enable automatic closure : disabled C5 - step-by-step/opening command operation : Step-by-step RM - remote control operation : Step-by-step AM - AUX1 and AUX2 plug-in board operation : Step-by-step SS - Selection of automation status at start-up : open... -
Page 21: Additional Bc Level Parameters That Can Be Configured (Available With At → Aa Enabled)
11.3.1 Additional configurable BC level parameters available with → enabled Display Description Selections available C5 - Step-by-step/opening operation via 1-5 command (wakeup from stand-by) 1-3 - Opening 1-5 - Step-by-step LG - Courtesy light command NO - Input 5 disabled RM - Radio receiver operation 1-3 - Opening 1-5 - Step-by-step... - Page 22 Selections Display Description available TR - Motor delay time [s] Delay time for closure of gate wing 1 in relation to gate wing 2. 00 - 30s PO - Adjustment of approach speed during opening Indicates the speed from the end of the deceleration ramp to the end of the opening stroke 10 - Minimum 25 - Maximum...
-
Page 23: Additional Ba Level Parameters That Can Be Configured (Available With At → Aa Enabled)
Selections Display Description available r1 - Adjustment of thrust on obstacles during end position approach phase at constant speed for both motors when opening. [%] The control panel is fitted with a safety device which, when it detects an obstacle: - stops the opening movement and, if outside the limit area for de- tecting obstacles, performs a disengagement operation whose du- ration can be set with... - Page 24 Display Description Selections available TA - Adjustment of acceleration time during opening [s] 0.5 - Minimum 1.5 - Maximum TQ - Adjustment of acceleration time during closing [s] 0.5 - Minimum 1.5 - Maximum OO - Obstacle detection limit during opening [%] Indicates the percentage of the distance travelled during →...
- Page 25 Display Description Selections available LK - LK output operating mode~ 00 - Courtesy light 01 - Activation of electric lock 02 - Activation of electric lock with release stroke 03 - Output activated with gate closed (for fail-safe electromagnets) 04 - Output activated with gate open 05 - Output activated with gate moving (can be used for electromagnets which need to be powered throughout opening or closing operations) 06 - Output activated during opening...
-
Page 26: Additional Ro Level Parameters That Can Be Configured (Available With At → Aa Enabled)
RK - Menu navigation using remote control keyboard ON - Enabled OF - Disabled 3 3 3 3 2 2 4 4 1 1 With the display turned off, quickly type in the sequence of keys from the stored remote control you want to use. Make sure all the CH keys are stored. -
Page 27: Second Level Menu - Sf (Special Functions)
Selections Display Description available RE - Setting memory opening from remote control OF - Disabled ON - Enabled When enabled (ON), the remote programming is activated. To store new remote controls without using the control panel, refer to the remote control instructions. -
Page 28: Additional Sf Level Parameters That Can Be Configured (Available With At → Aa Enabled)
11.6.1 Additional configurable SF level parameters available with → enabled Display Description SP - Setting the password ENTER ENTER DOWN → → → → → [example] [esempio] 2” NOTE: this can only be selected when the password is not set. Setting the password prevents unauthorised personnel from accessing selections and adjust- ments. -
Page 29: Second Level Menu - Cc (Cycle Counter)
11.7 Second level menu - CC (Cycles Counter) Display Description CV - Display of total operations counter ENTER 182 manovre [esempio] 182 operations [example] → → → → CP - Display of partial operations counter ENTER 716 operations [example] 716 manovre [esempio] →... -
Page 30: Level Two Ap Menu (Advanced Parameters)
11.8 Level two AP menu (Advanced parameters) Selections Display Description available FA - Motor 1 and 2 opening limit switch mode NO: no limit switch (timed operation or with detection of stop) MT: stop limit switch series connected to the motor phase FC - Motor 1 and 2 closing limit switch mode NO: no limit switch (timed operation or with detection of stop) MT: stop limit switch series connected to the motor phase... -
Page 31: Additional Configurable Ap Level Parameters Available With At → Aa Enabled
11.8.1 Additional configurable AP level parameters available with → enabled NOTE: make adjustments gradually and only after performing at least three complete oper- ations to allow the control panel to be set correctly and detect any friction during operations. Display Description Selections available LU - Setting switch-on time for courtesy light (s) - Page 32 CR - Stroke estimate correction [%] DO NOT USE (diagnostic purposes only) SM - Selection of operating mode of device connected to terminals 1-6 00 - During opening operation, open state of safety contact stops movement (with disengagement if → 01 - During opening operation, open state of safety contact stops movement (with disengagement if →...
-
Page 33: Diagnostics
12. Diagnostics 12.1 Data Logging integrated in the board The Ditec LCA80 control panel is equipped with an internal system which allows the installer to check whether any alarms have been triggered, see how many times each alarm has been triggered and view a the log of the last twenty alarms. -
Page 34: Signals Visualised On The Display
13. Signals visualised on the display NOTE: depending on the type of automation and control panel, certain visualisations may not be available. 13.1 Display of automation status NOTE: the automation status display mode is only visible with Display visualisation mode set to 02. Display Description Display... -
Page 35: Display Of Automation Status
13.2 Display of safety devices and commands NOTE: the safety device and command display mode is only visible with Display visual- isation mode set at 01 or 03. Display Description Display Description 1-2 - Automatic closure enable command. S.2. - Stop detection during aperture oper- ation - motor 2. -
Page 36: Display Of Alarms And Faults
13.3 Visualisation of alarms and faults WARNING: the visualisation of alarms and faults is possible with any visualisation selection. The signalling of alarm messages takes priority over all other displays. Type of Display Description Operation alarm MB - Motor 1 not detected during opera- Check the motor 1 connection and if the tion. - Page 37 Type of Display Description Operation alarm Check there is no short circuit in connection I5 - No voltage 0-30 (faulty voltage regulator 0-30. If the problem persists, replace the or short-circuit on accessories) control panel. Replace the control panel. I6 - Excessive voltage 0-30 (faulty voltage regulator) Reset.
-
Page 38: Troubleshooting
Type of Display Description Operation alarm A0 - Test of safety sensor on contact 6 failed. Check the safety device is working properly. If the supplementary safety board is not inserted, check the safety test is disabled. Check the wiring and correct operation of A1 - Test of safety sensor connected simul- the safety sensor. - Page 39 Problem Possible cause Alarm signalling Operation There is a presence of friction. Manually check that the automation moves freely and check the The automation adjustment. Check that the limit switches, opens/closes if installed, are working correctly Contact briefly and then Technical Service stops.
- Page 40 All the rights concerning this material are the exclusive property of Entrematic Group AB. Although the contents of this publication have been drawn up with the greatest care, Entrematic Group AB cannot be held responsible in any way for any damage caused by mistakes or omissions in this publication. We reserve the right to make changes without prior notice.
