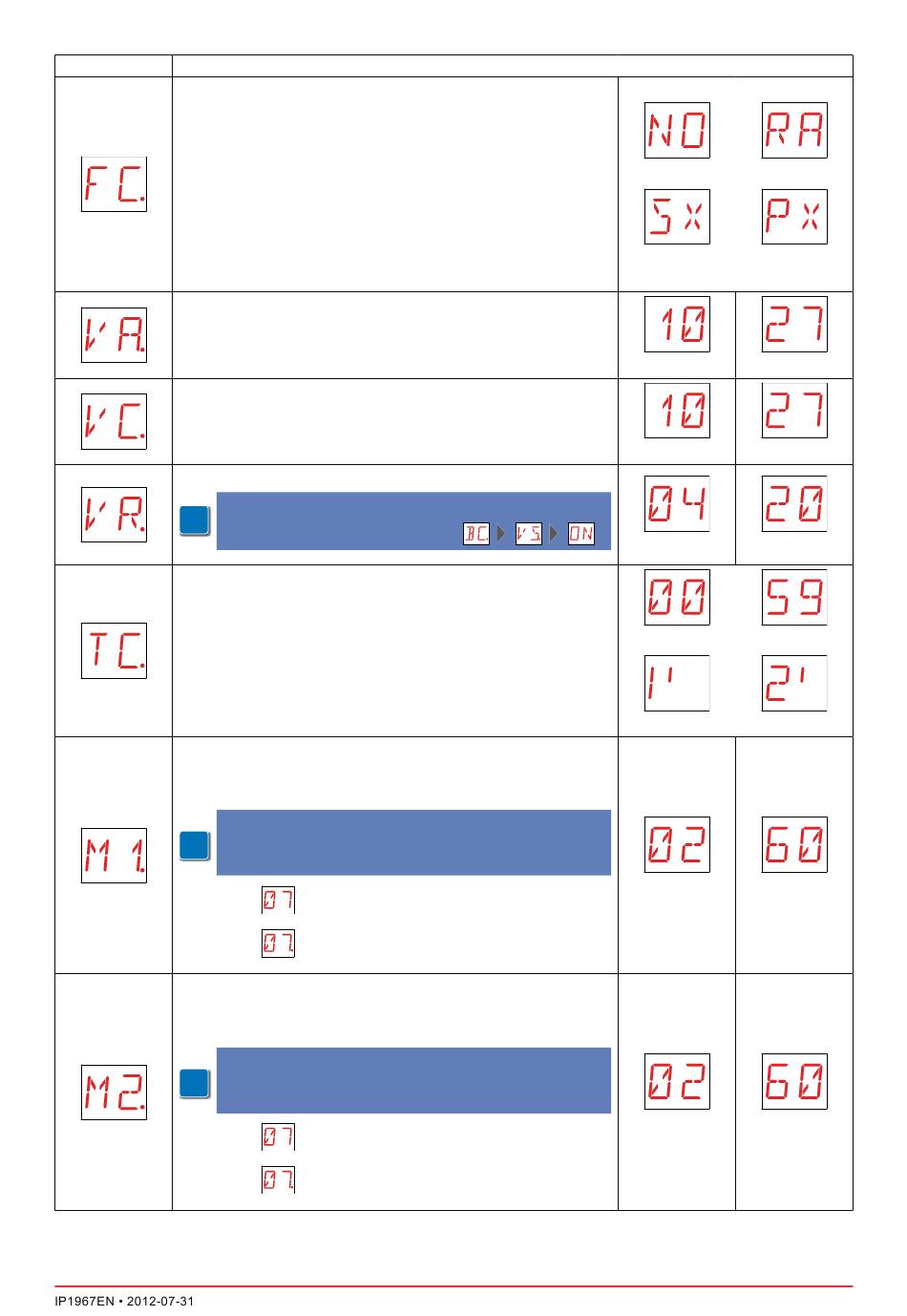

Display
FC - Selection of closing limit switch mode.
NO - None
RA - Deceleration limit switch
(after the activation, the door wing slows down its
movement)
SX - Stop limit switch
(after the activation, the door wing stops its movement)
PX - Proximity limit switc
(after the activation, the door wing continues as far as
the end stop)
VA - Setting opening speed. [V]
VC - Setting closing speed. [V]
VR - Setting acquisition manoeuvre speed. [V]
i
WARNING: the acquisition manoeuvre speed can
only be adjusted with the setting
TC - Setting automatic closing time. [s]
Adjustment occurs with intervals of varying sensitivity.
- from 0 to 59 sec with 1 sec intervals;
- from 1 to 2 min with 10 sec intervals.
M1 - Setting motor 1 manoeuvre time. [s]
Adjustment, in seconds, of the total manoeuvre time for
motor 1.
WARNING: adjustment occurs with a sensitivity inter-
i
val of 0.5 sec, indicated by the switching on of the
right-hand point.
Example:
M2 - Setting motor 2 manoeuvre time. [s]
Adjustment, in seconds, of the total manoeuvre time for
motor 2.
WARNING: adjustment occurs with a sensitivity inter-
i
val of 0.5 sec, indicated by the switching on of the
right-hand point.
Example:
Description
= 7 seconds
= 7,5 seconds
= 7 seconds
= 7,5 seconds
16
NONE DECELERATION
STOP PROXIMITY
MIN
MIN
.
MIN
0 SECONDS 59 SECONDS
1 MINUTE 2 MINUTE
MIN
MIN
MAX
MAX
MAX
MAX
MAX
