Opitec MANITOU 101.200 Manual page 9

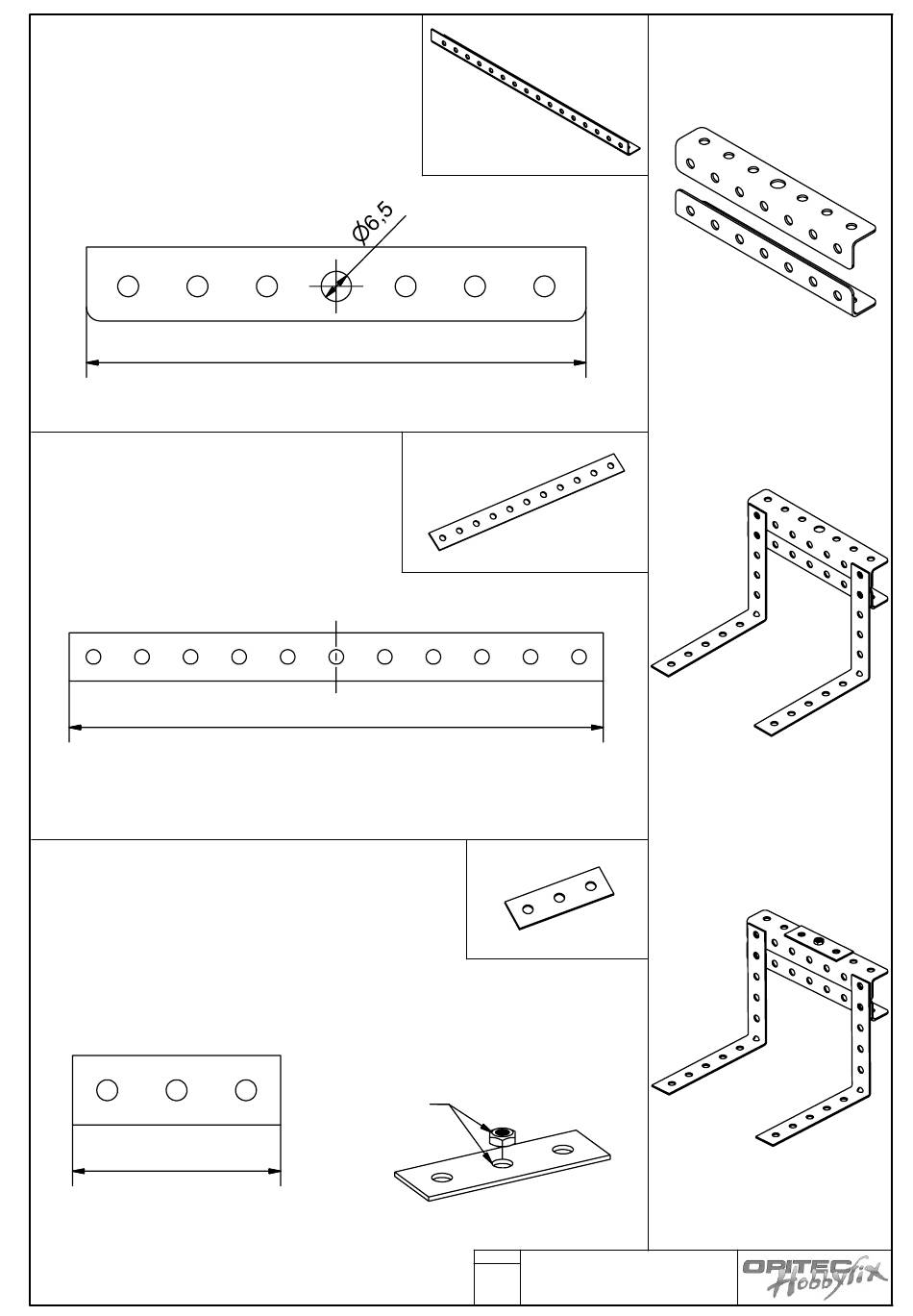

Fork lift assembly
Part Nr:20
Cut the fork carrier to length and drill the
middle hole out to 6.5 mm diameter
Round the ends with a file
Part Nr:22
Cut the fork assembly to length. Use the
machine screws M4x 8 (Part Nr:23)
M4 nuts and domed nuts (Part Nr: 34 and
35) join them to part 20
(See sheet 9)
Part Nr:21
Cut off a piece 45mm long from a remaining piece
of holed metal strip
Glue (2 part epoxy glue) or solder a M3 nut (Part
Nr: 21) over the middle hole and fit to Part Nr:20
Use the machine screws (Part Nr:33) and nuts
(Part Nr:34)
45
105
165
Glue or solder
in position
8
2 x
2 x
Fork lift truck "MANITOU"
101.200
