Electrics
Part No: 45-51b
1. Mount the battery under the bodywork using the remaining double sided sticky pad
2 Insert a piece of cable in the joiner block 3 and 4. Solder or crimp a connector on the ends and join to the
battery

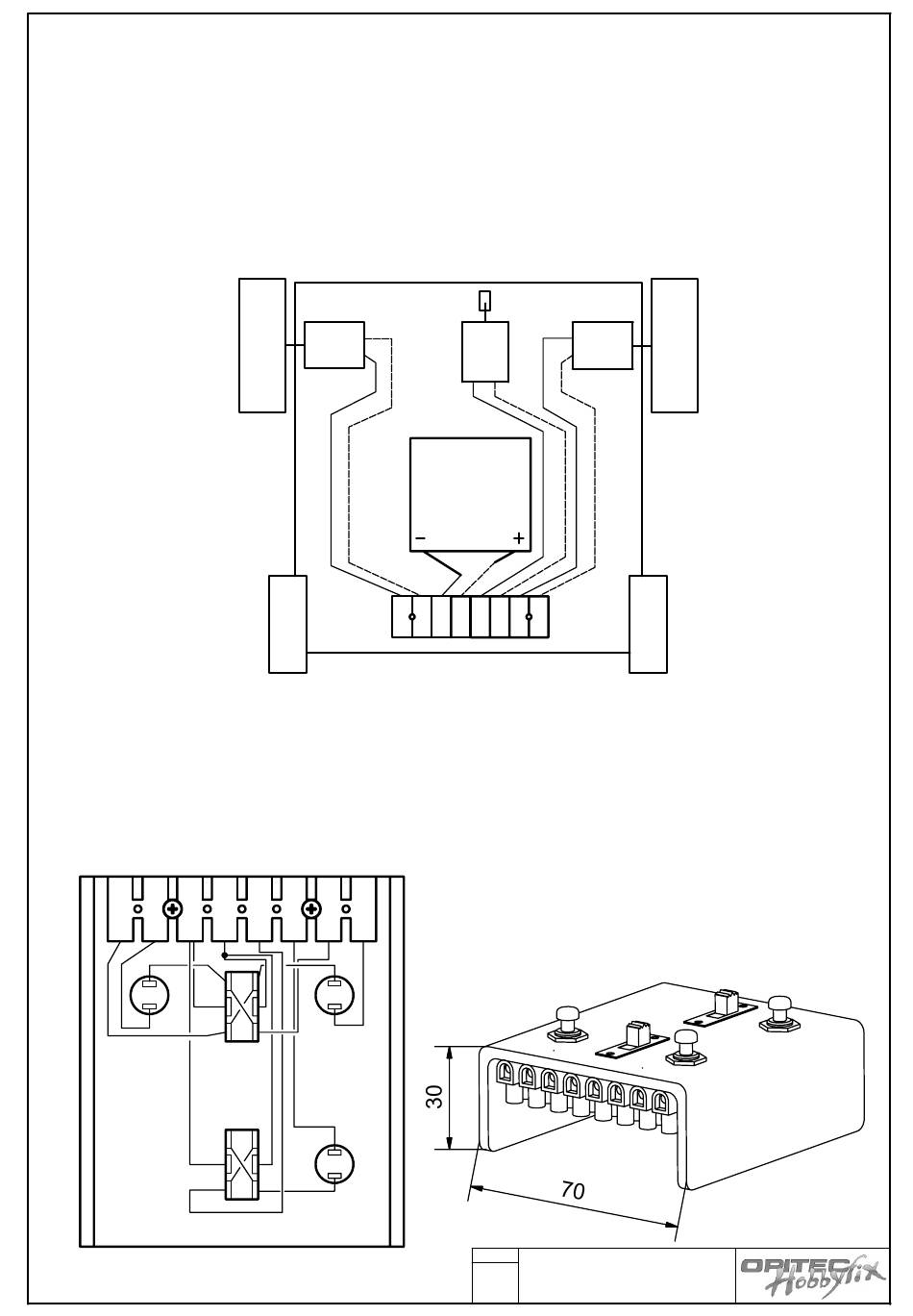

3 Wire up the components according to the diagram
4. Hand steering set
Mark out and drill the holes in the polstyrol sheet ( Part Nr:47 ) for the switches 7,5mmdia and file out the
long shaped hole (Pattern A , page 22 ).
Finally bend the U shaped form. Use a hot air gun or strip heater ( Attention !! N.B. be careful of burns )
Glue the switches with super glue ( Be careful not to get glue in the switch )
Fit the connector block with two self tapping screws ( Part 46) see plan ( See page 22 )
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Broken line represents the red wire = Plus pole
Continuous line represents the black wire + Minus pole
View from underneath
4,5 V
5. Connect the hand control, with the flat band cable to the
model. Connect the numbers from the hand control to the
corresponding numbers on the chassis connector.
Fork lift truck "MANITOU"
21
View from underneath
