Bodywork
Parts Nr: 39-43

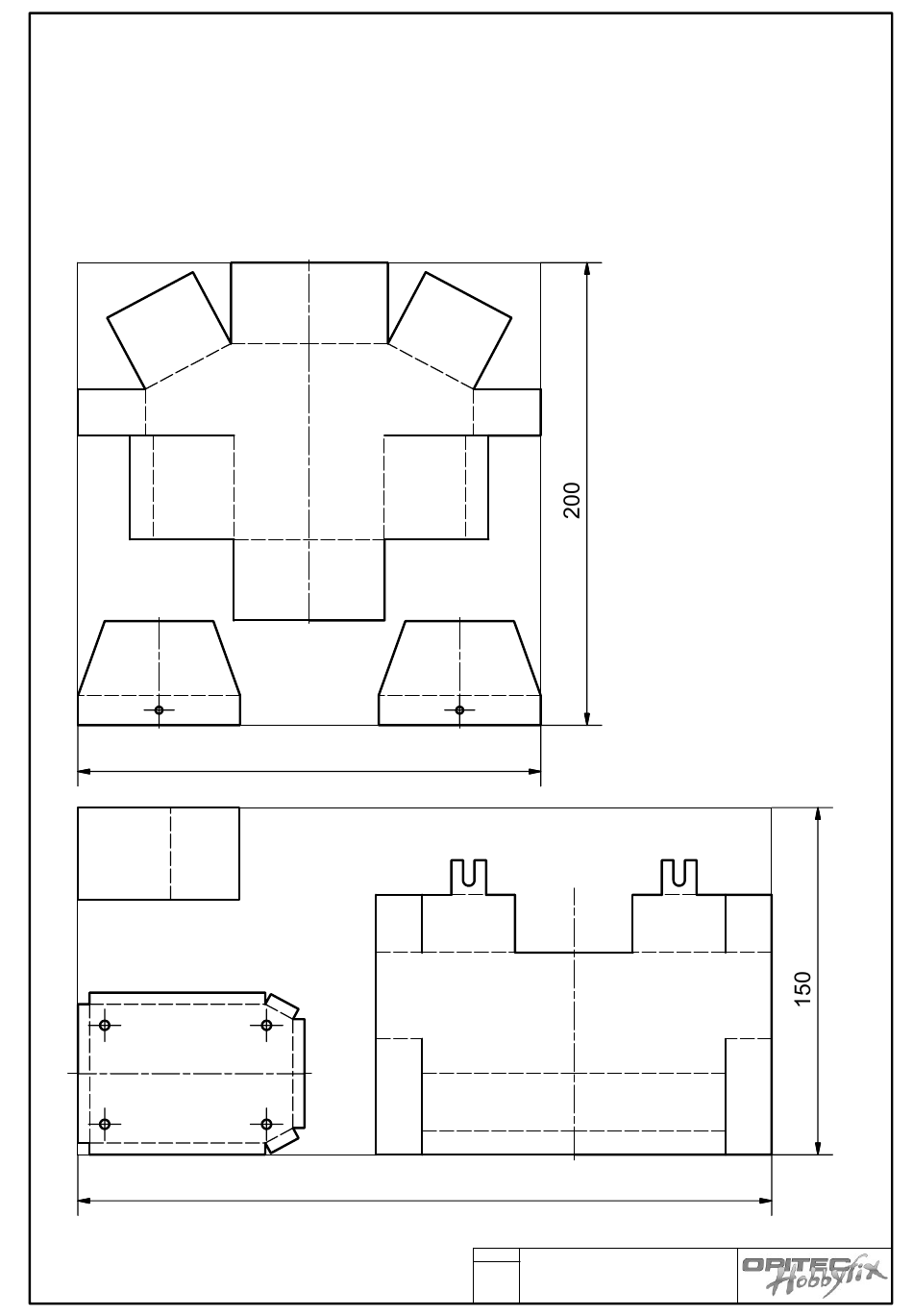

Cut out the patterns 1-6 (See page 23 & 24) and lay them out on the metal sheet, hold them in position with
tape or glue
Cut out the shapes with metal snips along the thicker lines.
In patterns 1 and 4 along with the contour lines other inner cuts must be made. ( Along the thickened lines )
In patterns 2/3 there are also 3mm diameter holes to be drilled. In pattern 6 4mm holes.
Pattern 1
Pattern 3
Pattern 2
200
Pattern 5
Pattern 4
Pattern 6
300
Fork lift truck "MANITOU"
14
101.200
