Fork Guides - Opitec MANITOU 101.200 Manual

Part 27
Saw brass tube to length as shown, with a Junior hacksaw
124
env.
Part Nr: 18
In drive direction

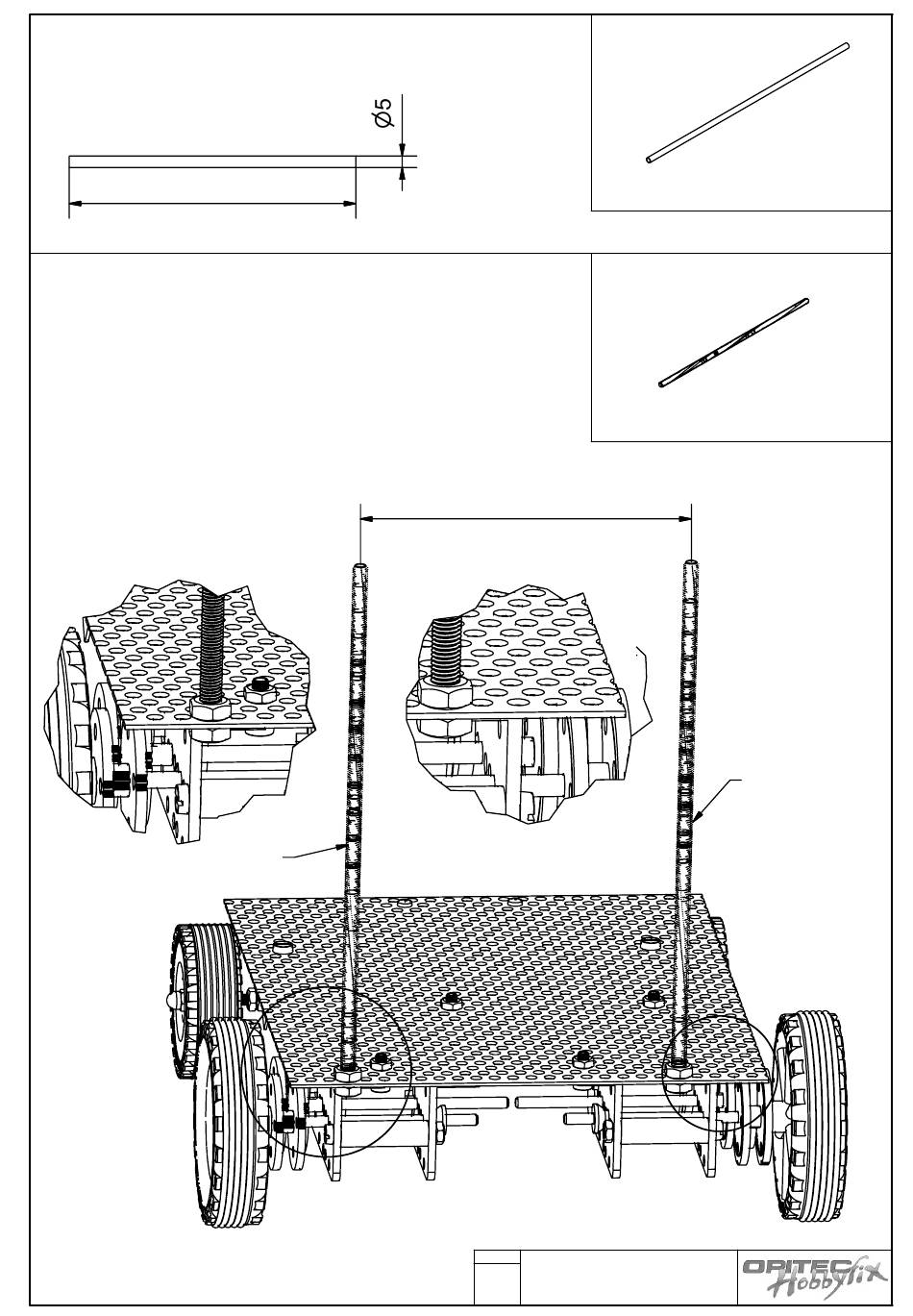

Mount the right hand fork guide (Part Nr: 18) in the first row of
holes in the 3rd or fourth hole in from left. Fix with two nuts M4
(Part Nr: 34) as shown in diagram Z
Mount the other fork guide ( Part Nr:18) at a distance of 90mm
(Seen from centre to centre) and also in the first row of holes (See
diagram)
Z
Y
Part Nr. 18
Part Nr. 18
Y
Z
Fork lift truck "MANITOU"
10
101.200
