Part Nr.2

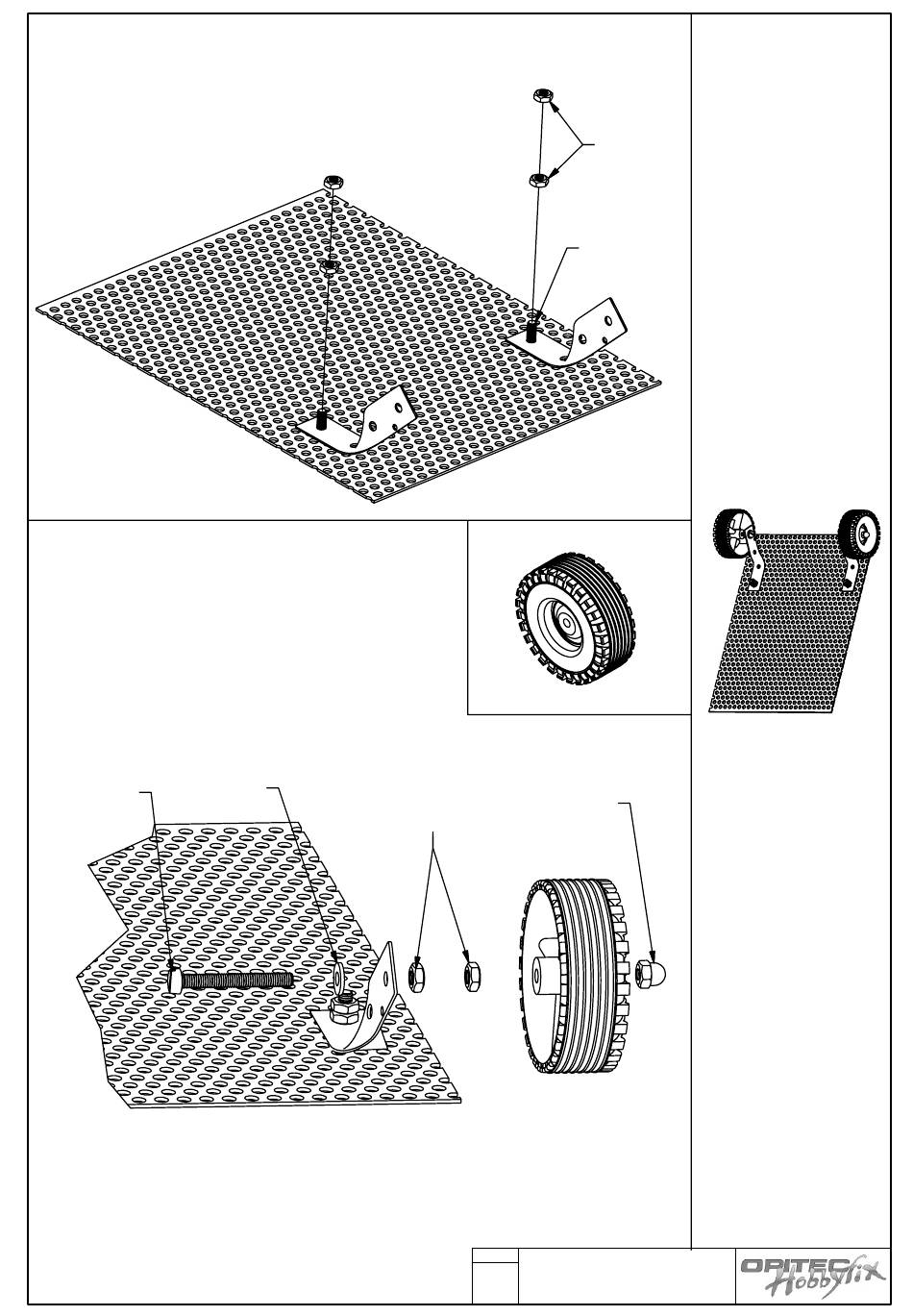

Mount both of the rear axle holders with machine screws M3x8
(Part Nr: 28) in the 11th row 3rd hole in from left and right. Use
two M3 nuts (Part Nr:31)and contra tighten them so that the
holders swivel.
Part Nr. 31
Part Nr..28
Part Nr: 5
To fit the two small wheels as shown
Insert the machine screw M3 x25 (Part Nr: 29) and
washer (Part Nr: 30) from the inside through the
axle holder. Contra tighten with two nuts (Part
Nr:31) and finally fix the wheel with a domed nut
(Part Nr:32 )
Part Nr. 30
Part Nr. 29
Part Nr. 32
Part Nr. 31
Fork lift truck "MANITOU"
4
101.200
