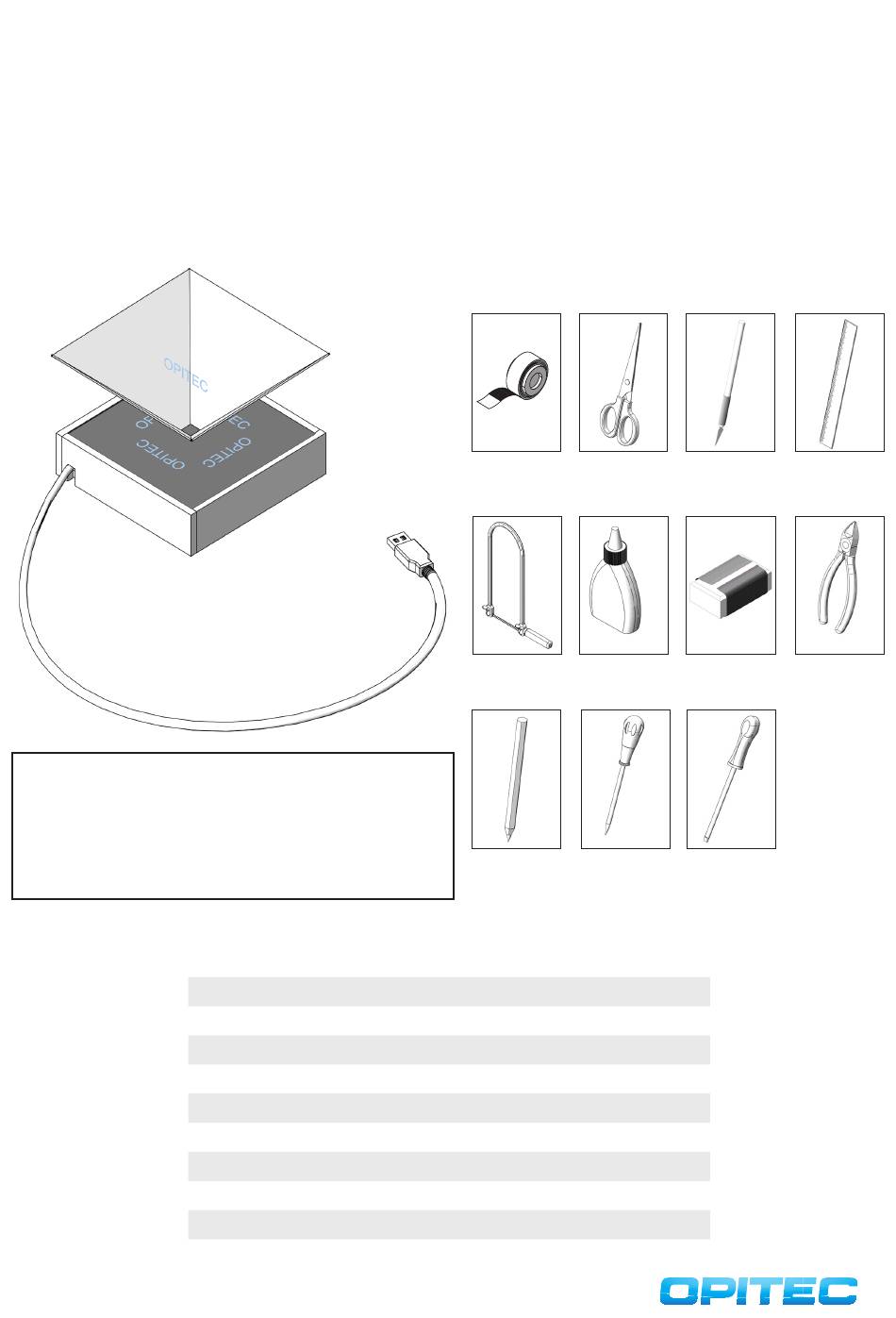

3D Hologram Maker with USB
The OPITEC range of projects is not intended as play toys for young child-
ren. They are teaching aids for young people learning the skills of Craft,
Design and Technology. These projects should only be undertaken and
operated with the guidance of a fully qualified adult. The finished projects
are not suitable to give to children under 3 years old. Some parts can be
swallowed. Danger of suffocation!
1
Please Note
PARTS LIST
Quantity
Wooden strip
2
Wooden strip
2
USB-cable
1
Plywood board
1
PVC foil
1
LED light strip
1
Cable, black
1
Cable, red
1
Wire connectors
1
Drawing pins
8
116415
Tools required:
Sticking Tape
Jigsaw
Pencil
Size (mm)
Description
250x30x5
Frame
250x5x5
Frame
Cable
110x110x5
Base
DIN A4
Cover & prism
LED
Wiring
Wiring
Wiring
Wiring
Scissors
Craft knife
Wood glue
Sandpaper
Centre punch
Screwdriver
Part No.
1
2
3
4
5
6
7
8
9
10
Ruler
Side cutter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Opitec 116415
Summary of Contents for Opitec 116415
- Page 1 Side cutter Please Note The OPITEC range of projects is not intended as play toys for young child- ren. They are teaching aids for young people learning the skills of Craft, Design and Technology. These projects should only be undertaken and operated with the guidance of a fully qualified adult.
- Page 2 Instructions 116.415 Hologram Transfer dimensions on to wooden strip (1). Cut two pieces (115x30mm) Cut a recess (10x5mm) from one of the strips. from each length of wood. Tidy up the ends. Transfer dimensions on to wooden strip (2). Cut two pieces (105x5mm) from each length of wood. Tidy up the ends. Glue a wooden strip (2) to each of the wooden strips (1), using the Glue the four sides to the base (4) as shown to create a frame.
- Page 3 Instructions 116.415 Hologram Divide the four LEDs as shown. Cut off the positive pole on one side of Cut out the templates (page 9) to position the LEDs and place them in each LED and the negative pole on the opposite side (see illustration). the frame.
- Page 4 Instructions 116.415 Hologram Cut out foil piece A from the PVC foil (5) as per template. Insert foil A Print out the instructions on www.uk.opitec.com in colour. Cut out into the frame as shown. one of the pictures (page 6) and place it on the foil. Alternatively you can use your own designs: using an image processing program, draw a 110x110mm frame.
- Page 5 Instructions 116.415 Hologram Template PVC Foil Scale 1:1...
- Page 7 Instructions 116.415 Hologram Templates...
- Page 9 Instructions 116.415 Hologram Templates Templates for LED placement Scale 1:1...
