Fork - Opitec MANITOU 101.200 Manual

Part: 27

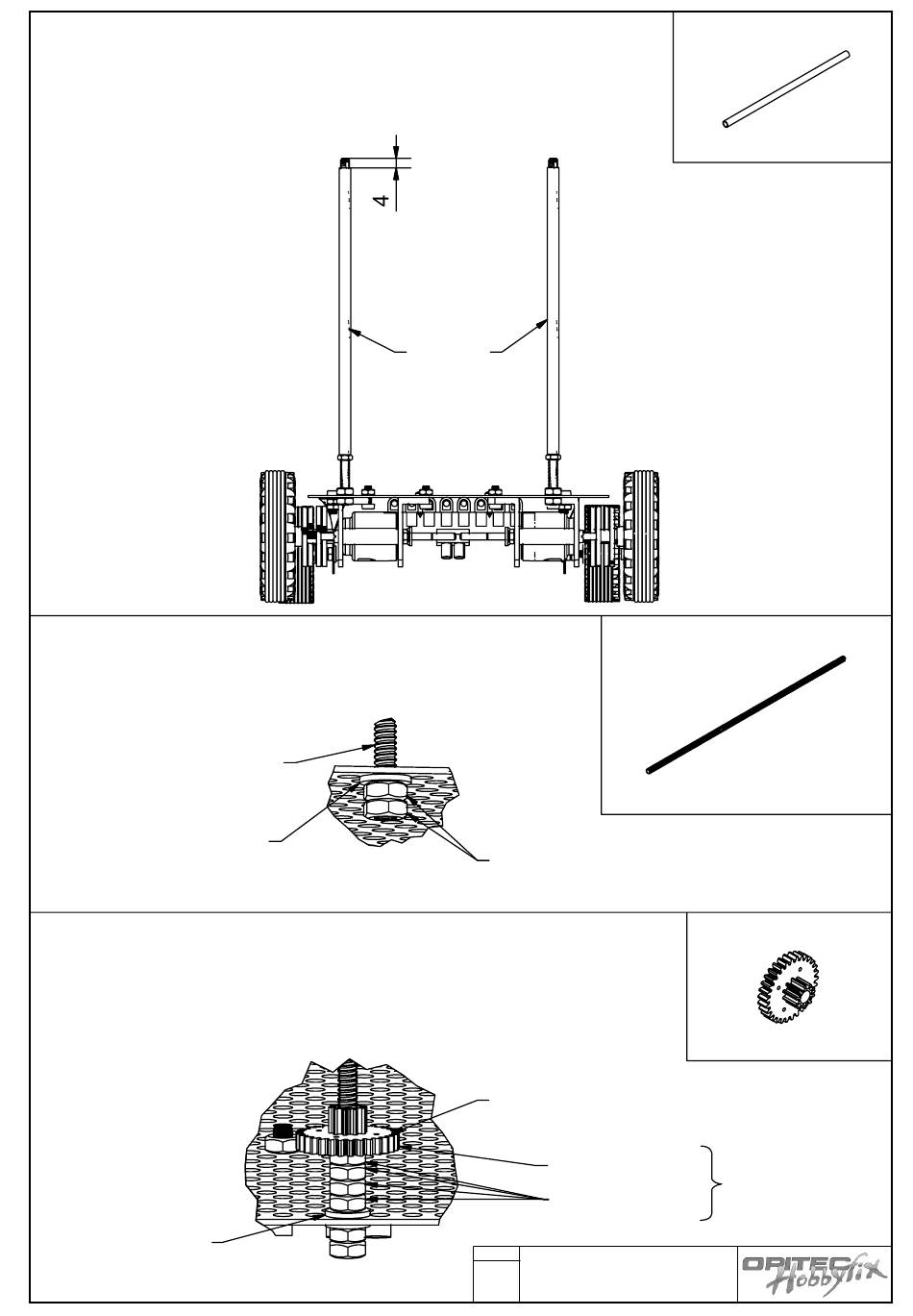

Place M4 nuts ( Part Nr: 4 ) on each fork guide ( Part Nr: 18) and then place
a brass tube (Part Nr: 18) on each guide, finish with M4 nuts
Adjust all the nuts so that the guides protrude 4mm on either side.
Part :19
Mount the fork drive (Part 19) in the middle between the two fork guides.
From underneath place a washer (Part 30) and lock with two M3 nuts
(Part 31)
Part Nr. 19
Washer
(Part Nr. 30)
Part Nr: 23
Finally from above place a washer M3 (Part Nr:30) and 4 M3 nuts (Part 31)
Note:
the drive ( Part Nr. 19 ) should be able to turn.
Then then add the drive gear (Part Nr:23) and glue it to the four nuts (Use a two
component epoxy glue or super glue)
Washer
(Part Nr. 30)
Part Nr. 27
M3 nuts
(Part Nr. 31)
Part Nr. 23
Gear 30/10
4 x nuts M3
