C l o u d

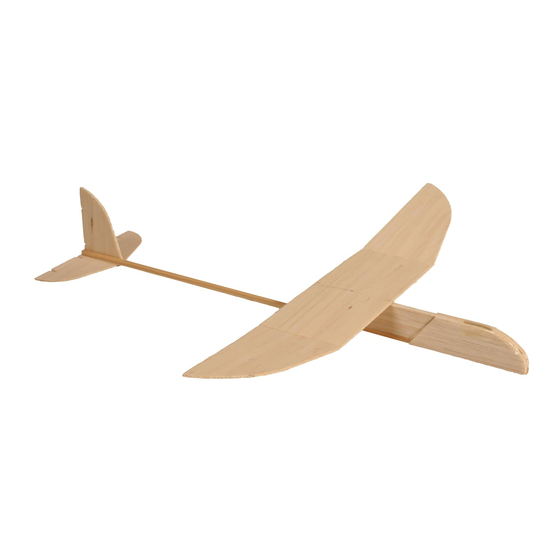

Simple beginners chuck glider ( Easy Line )
To complete this project you will need the following items:
A set square, pins, white PVA glue, modelling knife, sellotape.
Leave all glued parts to dry thoroughly!!!
Parts list:
1
Wing, middle section
2
Wing, tips
2
Fuselage nose, parts
1
Fuselage, boom
2
Fuselage, sides
1
Tail plane
1
Tail fin
Lead shot
E102698#1
1 0 2 . 6 9 8
( n e w
1,5 x 48,5 x 125 mm
1,5 x 48,5 x 84 mm
1,5 x 16,5 x 142 mm
3 x 3 x 310 mm
1,5 x 19,5 x 67 mm
1,5 x 33 x 98 mm
1,5 x 33 x 48 mm
approx. 2 gm
Please Note
The OPITEC range of projects is not intended as play
toys for young children.They are teaching aids for
young people learning the skills of Craft, Design and
Technolo- gy.These projects should only be underta-
ken and tested with the guidance of a fully qualified
adult. The finished projects are not suitable to give to
children under 3 years old. Some parts can be swallo-
wed. Dan- ger of suffocation!
v e r s i o n )
Part 1
Part 2
Part 3
Part 4
Part 5
Part 6
Part 7
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Opitec Hobbyfix Cloud
Summary of Contents for Opitec Hobbyfix Cloud
- Page 1 Lead shot approx. 2 gm Please Note The OPITEC range of projects is not intended as play toys for young children.They are teaching aids for young people learning the skills of Craft, Design and Technolo- gy.These projects should only be underta- ken and tested with the guidance of a fully qualified adult.
- Page 2 Making instructions 1. Glue the wing tips (2) at angle on to the wing centre section (1) see diagram 1Glue the two fuselage nose parts (3) together, then glue them to the fuselage boom (4) Diagram 2, remove any excess by sanding! 3.
