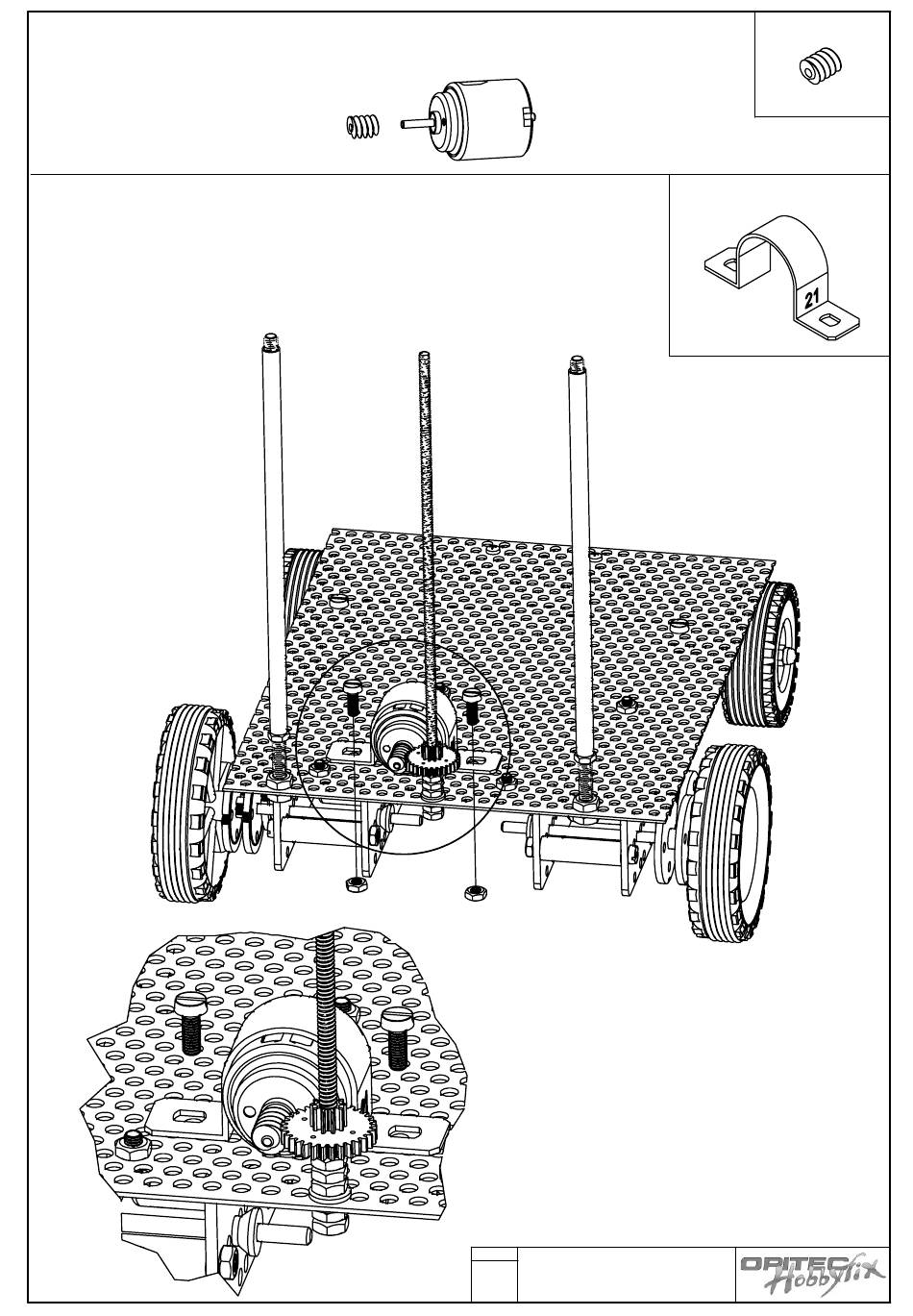

Fork Drive - Opitec MANITOU 101.200 Manual

Parts Nr: 24 and 26
Place the worm gear on the motor shaft
Part Nr: 25
Mount the motor and gear so that the worm gear engages lightly with the Fork
drive gear.
Fix the motor in position with the metal loop holder (Part Nr: 25) and two machi-
ne screws M3 x 8 (Part Nr: 28) and suitable nuts (Part Nr:31) to the holed metal
sheet.
