Part Nr: 44

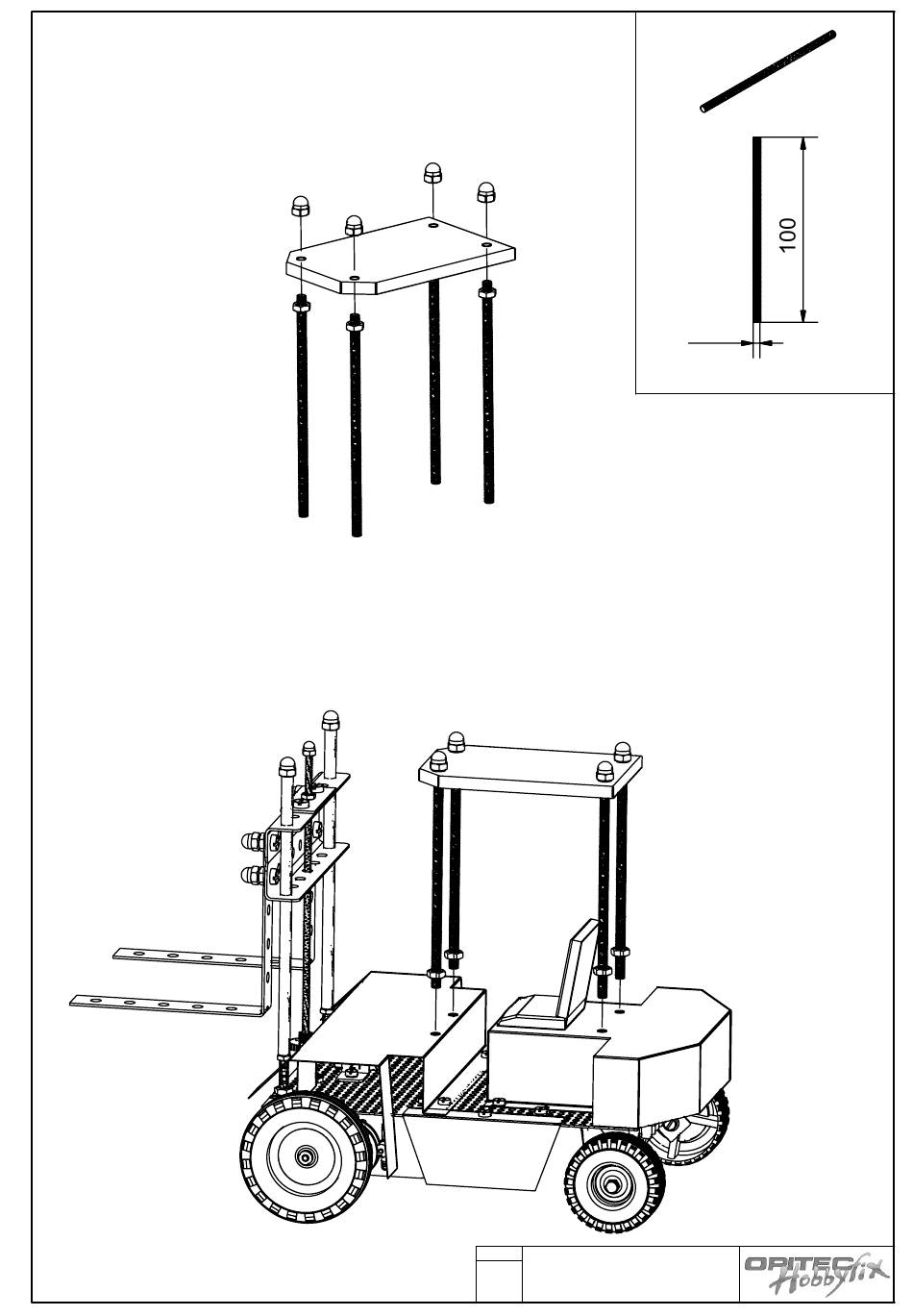

Mount the finished roof ( Part Nr 42 ) with hex.nuts and dome nuts on
the 4 pillars ( Part Nr:44)
M
4
Now hold the roof and pillars in position on the bodywork and mark the four holes.
Centre punch an drill the four 4 mm holes
Add another set of M4 (Part Nr:34 ) nuts to the bottoms of the pillars then mount the cabin on the holed
chassis with M4 nuts
Fork lift truck "MANITOU"
19
101.200
