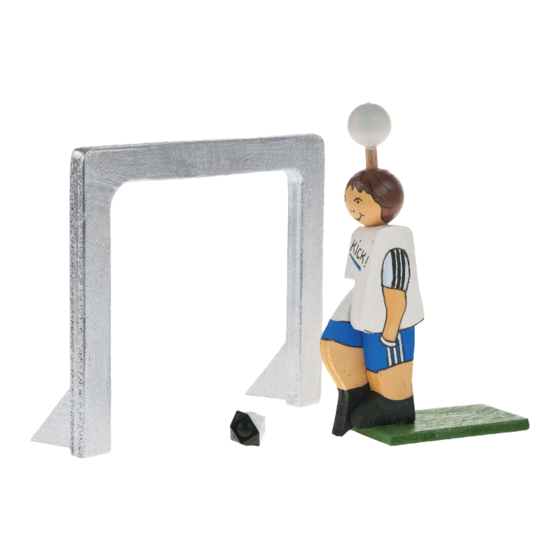

P o c k e t " F i n g e r - K i c k "
Necessary tools
Fretsaw
Wood glue
Ruler and pencil
Sandpaper
Drill ø3/4/5 mm
Crosshead screwdriver
Paints and brush
PARTS LIST
PLywood
Plywood
Wooden ball
Wooden ball
Dowel
Screw
Brass tube
Tipp-Kick Ball white/black
D112994#1
112.994
The OPITEC range of projects is not intended as play toys for
young children.They are teaching aids for young people
learning the skills of Craft, Design and Technology.These
projects should only be undertaken and tested with the
guidance of a fully qualified adult.
The finished projects are not suitable to give to children
under 3 years old. Some parts can be swallowed. Danger of
Description
1
120x100x8 Body,goal,legs
1
100x30x4 Body ,base
1
ø 20 Head
1
ø 15 Press button
1
100x4 Axle
1
2,9x16 Leg fixing
1
8x4 Guide
1
Football
Please Note
suffocation!
1
2
3
4
5
6
7
8
1
Advertisement
Related Manuals for Opitec 112.994
Summary of Contents for Opitec 112.994
- Page 1 P o c k e t " F i n g e r - K i c k " Please Note Necessary tools The OPITEC range of projects is not intended as play toys for Fretsaw young children.They are teaching aids for young people Wood glue learning the skills of Craft, Design and Technology.These...
- Page 2 INSTRUCTIONS 1. Trace the patterns (Page 3) on the plywood sheets (see diagram) Before cutting out the parts drill the hole in the leg 4mm dia (b) Use a bradawl to mark the middle point in the body. Saw out all the parts with a Fretsaw and clean up the edges.
- Page 3 INSTRUCTIONS 10. Finished! You can now decorate your model with 9.Glue the supports (d und e) for 8. Mount the figure on the base (f ) as acrylic paint as you wish the goal posts(c) and leave to dry shown! Note: Do not get paint in the holes or on the do- wels as the function will be impaired...
