Chassis
Part Nr: 2

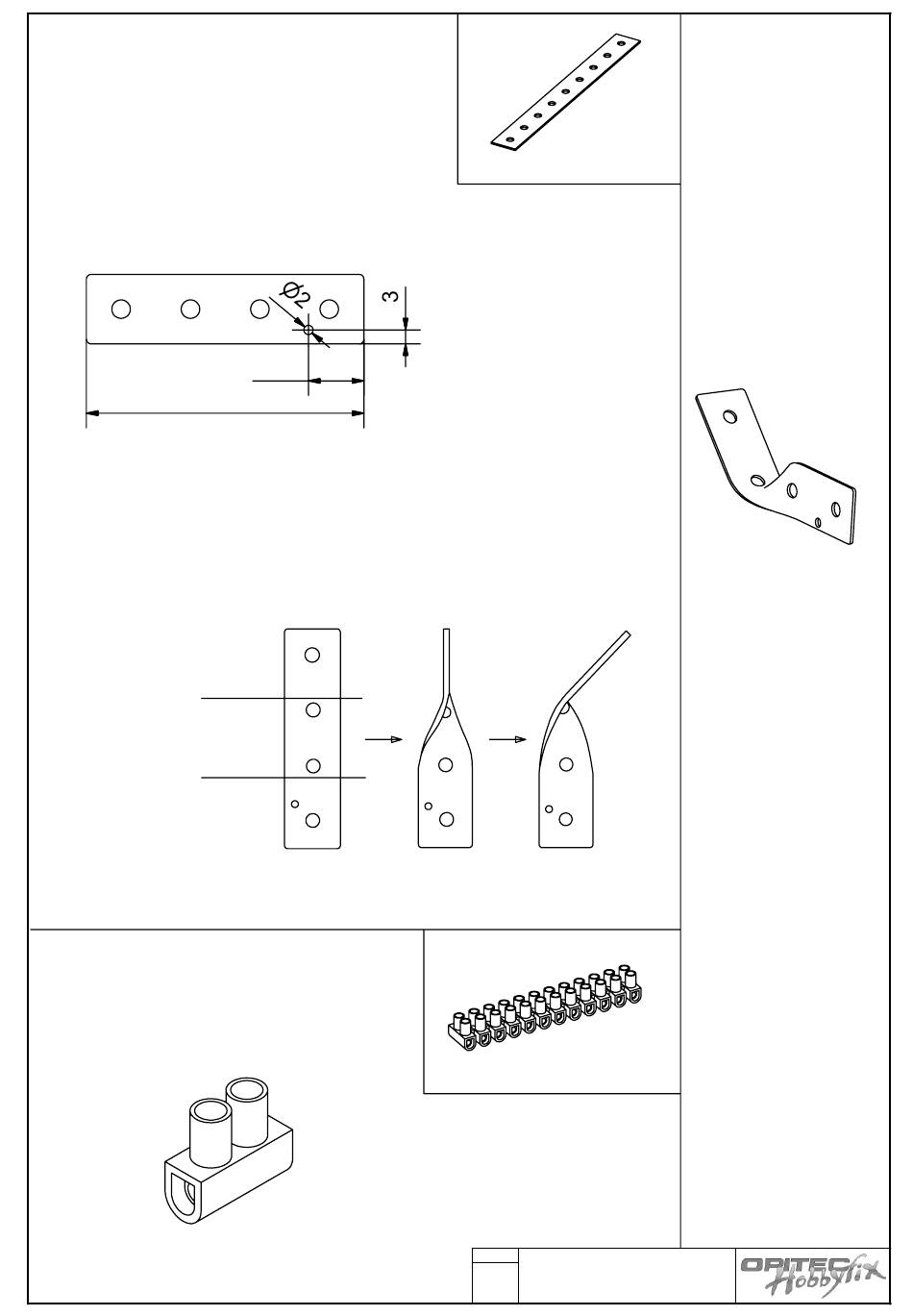

Cut two holed metal strips to 60mm long, and
round the sharp corners with a file.
Mark out and drill the 2 diameter in the holed
metal strip
12
60
2 x
Hold the holed metal strip up to the bottom line in a vice
( See diagram)
And twist the top half ( Upper line) with a pair of pliers,
firstly turn it through 90 degrees and finally bend it
across at 45 degrees
90° 45°
Pliers
Vice
Part No: 36
Cut off one section from the row
of connectors
