Videx IP videokit IPVK/6296 Series Installation Handbook page 7

IPVK/6296 Series IP videokit
Art. 4533
IP speaker unit module

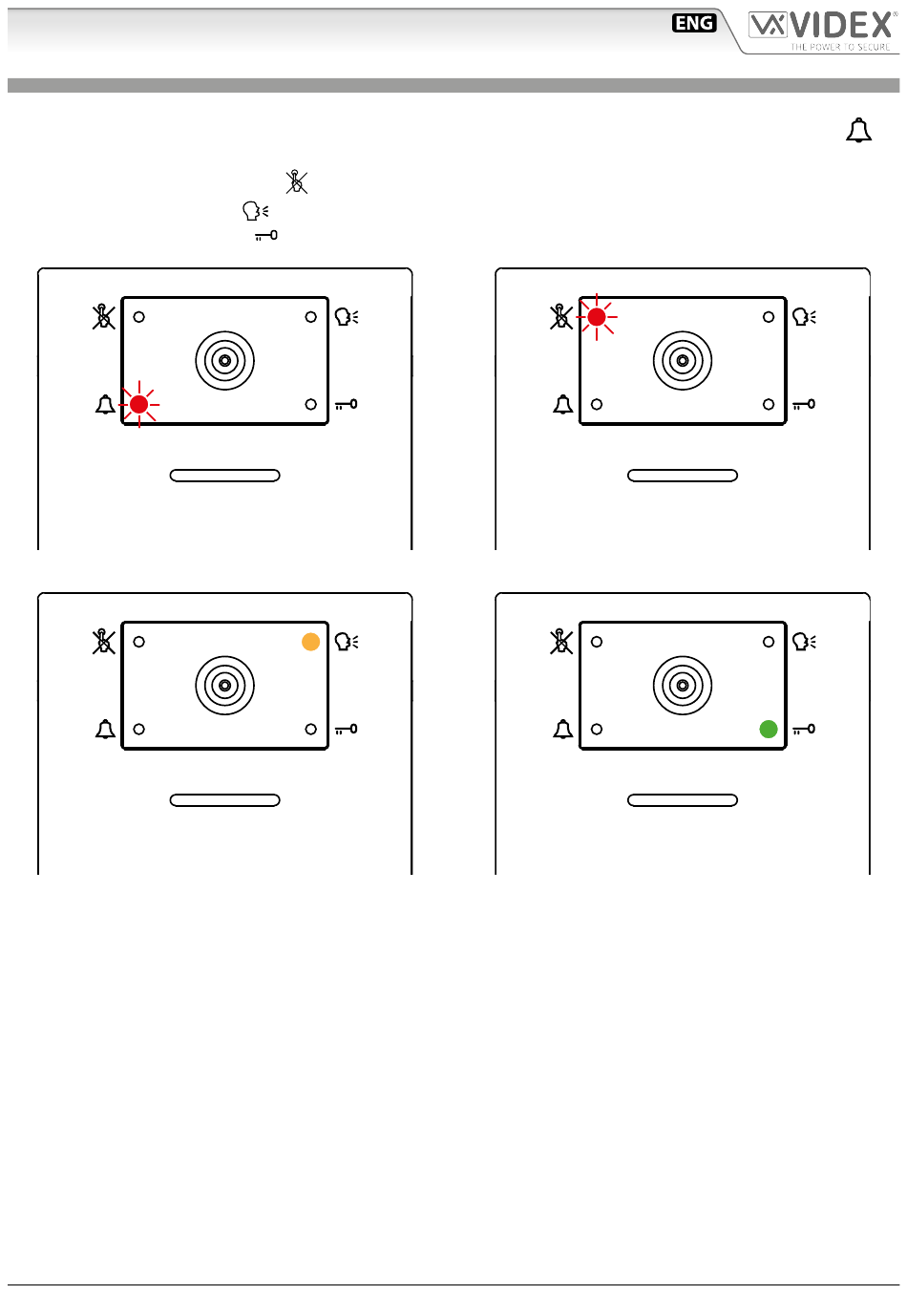

OPERATION
The system operation is supported by the built-in LED.
• When a visitor press a call button the units emits an intermittent deep call tone and in correspondence with the tone the
LED flashes (Fig. 7) until the resident answer or the programmed call time expires.
• If the called indoor station is busy the
• When the resident answers, the
• If the resident open the door, the
Call in progress
Fig. 7
The conversation is in progress
Fig. 9
IPVK/6296 Series - Installation handbook
red LED flashes (Fig. 8) 4 times quickly and the unit emits a deep tone on each flash.
yellow LED (Fig. 9) illuminates and remains illuminated until the conversation terminates.
green illuminates (Fig. 10) for the programmed door opening time.
- 7 -
Calling a busy indoor station
Fig. 8
Door opening
Fig. 10
red
66550062-EN - V 1.1 - 31/05/18
