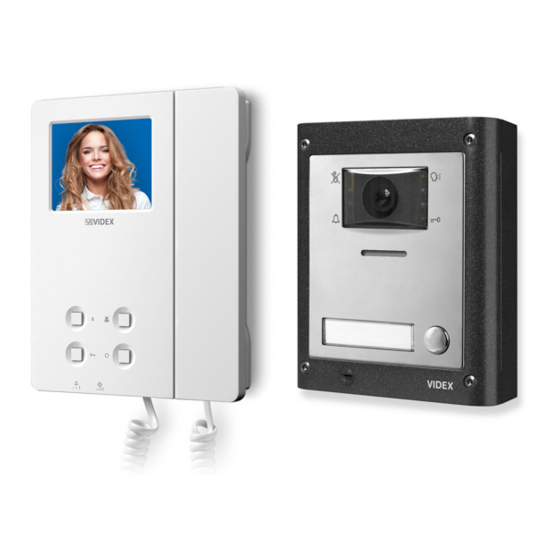

Videx ESVK Series Installation Handbook

“2 wire” bus one way, two way videokit
Hide thumbs Also See for ESVK Series:
Table of Contents

Advertisement

Quick Links

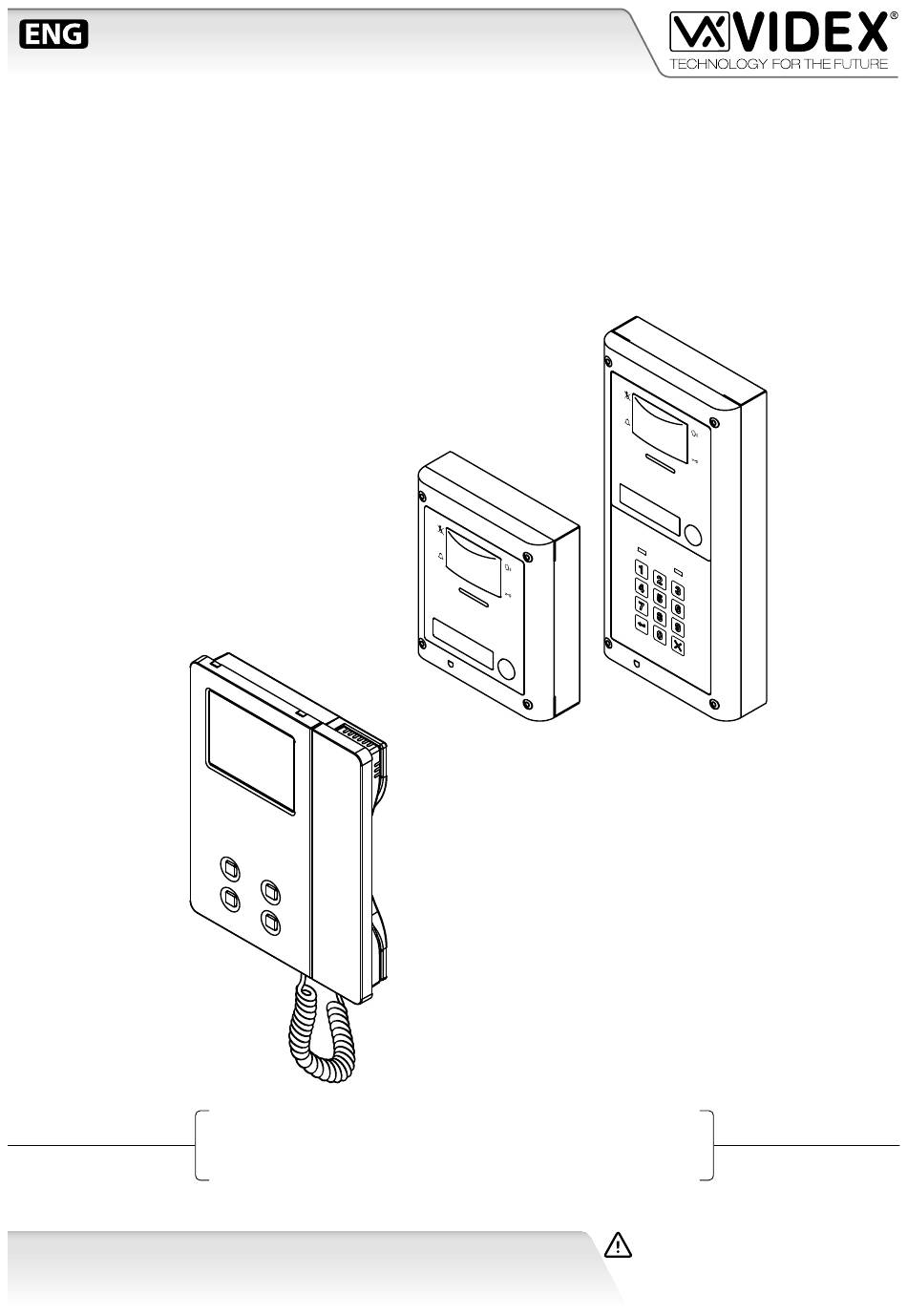

VIDEOKIT
ESVK/6286 SERIES
"2 Wire" bus one way, two way videokit
ESVK
Rev.0.2
ESVKX
ESVKC
66550032-EN - V6.2 - 31/10/20
Rev.0.2
Rev.0.3
Installation handbook
6286
We recommend
This equipment is installed by a
Competent Electrician, Security or
Communications Engineer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESVK Series and is the answer not in the manual?

Questions and answers

Related Manuals for Videx ESVK Series

Summary of Contents for Videx ESVK Series

  • Page 1 VIDEOKIT ESVK/6286 SERIES “2 Wire” bus one way, two way videokit ESVK Rev.0.2 ESVKX Rev.0.2 ESVKC Rev.0.3 6286 Installation handbook We recommend 66550032-EN - V6.2 - 31/10/20 This equipment is installed by a Competent Electrician, Security or Communications Engineer.
  • Page 2 This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referring to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.

  • Page 3: System Components And Available Versions

    ESVK/6286 Series “2 wire Bus” videokit System components and available versions ESVK/6286 Colour videokit. OUTDOOR INDOOR STATION STATION Videophone 135,0 45,0 22,7 Art. 6286 pag. 23 Camera unit Art. 4384 pag. 10 ACCESSORIES Power supply Art. 2321 15,7 pag. 2 43,8 120,0 Flush...
  • Page 4 ESVK/6286 Series “2 wire Bus” videokit System components and available versions ESVKX/6286 Colour videokit with embended proximity key reader. OUTDOOR INDOOR STATION STATION Videophone 135,0 45,0 22,7 Art. 6286 pag. 23 Camera unit Art. 4384X pag. 10 ACCESSORIES Power supply Art.
  • Page 5 ESVK/6286 Series “2 wire Bus” videokit System components and available versions ESVKC/6286 Colour videokit plus a codelock module. OUTDOOR INDOOR STATION STATION Videophone 135,0 45,0 22,7 Art. 6286 pag. 23 Camera unit Art. 4384 pag. 10 ACCESSORIES Power supply Art. 2321 Codelock pag.

  • Page 6: General Directions For Installation

    40nF and is an accumulation of all lengths and branches of the cable. For example: because of cable capaci- tance, the Videx CM2 cable used in a single system cannot exceed the 400m considering all lengths and branches of the cable.
  • Page 7 General directions for installation CABLES LENGTH & SIZE 7" Videophones Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire Art.2321 - 7 - ESVK/6286 Series - Installation handbook...
  • Page 8 7" Videophones 7" Videophones Art.6788 Art.KRV782 Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 Art318 CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire Art.2321 - 8 - ESVK/6286 Series - Installation handbook 66550032-EN - V6.2 - 31/10/20...
  • Page 9 Art.6788 Art.KRV782 Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 Art.317N CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire * Using the active distributor Art. 317N, the maximum ca- ble length using CM2 cable increases up to 300 metres.

  • Page 10: Available Versions

    ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader Balance 4384-0 4384-1 4384-2 4384X-0 4384X-1 4384X-2 STEEL HIGH BRASS MATTE 1 2 3 4 5 6 7 8 Made in Italy RS485 EXPANSION...
  • Page 11 ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader PROGRAMMING The programming consists of the following settings: • Unit ID (1..15); • Door opening time (2 or 6 seconds); •...
  • Page 12 ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader RS485 CONNECTION switch to RS485 position With switch 8 in ON position the module can be connected using an Balance RS485 bus connection via an RS485 RS-232...

  • Page 13: Operation

    ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader HOW TO CONNECT AN ELECTRIC LOCK The “door-open” relay can operate either as “dry contact” or “capacitive discharge” mode. •...
  • Page 14 ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader PROGRAMMING TAGS ONLY ART. 4384X VERSIONS MASTER TAG The external module is supplied with a master tag. The master tag is programmed in-factory, it is white to easily stand out. This tag enables user tags to be programmed or cleared.
  • Page 15 ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Balance 4384-0 Art. 4384X Speaker unit with built-in camera & proximity key reader 4384-1 4384-2 REPROGRAMMING A MASTER TAGS 4384X-0 4384X-1 4384X-2 If the master tag is lost or damaged, a new one can be programmed using the following procedure: STEEL HIGH BRASS 1.

  • Page 16: Technical Specifications

    ESVK/6286 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader CAMERA NOTES FIELDS OF VIEW MAXIMUM ILLUMINATION DISTANCE FROM CAMERA AT NIGHT The elds of view for standard camera are 55° for vertical angle and 115° for horizontal angle while for Wide Angle camera are 80°...

  • Page 17: Main Features

    GENERAL DIRECTIONS FOR INSTALLATION In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
  • Page 18 ESVK/6286 Series “2 wire Bus” videokit Art. 4901 Digital codelock module LOCK RELEASE BACK EMF PROTECTION A varistor must be tted across the ter- VARISTOR MOV DIODE 1N4002 minals on AC lock release (Fig. 5) and a diode must be tted across the ter- minals on a DC lock release (Fig.
  • Page 19 ESVK/6286 Series “2 wire Bus” videokit Art. 4901 Digital codelock module PROGRAMMING • Enter the ENGINEER’S CODE: rst time type six times 1 (111111 First time six times ENTER THE factory preset) and press ENTER (The red LED will illuminate); 1 “111111”...

  • Page 20: Technical Specification

    ESVK/6286 Series “2 wire Bus” videokit Art. 4901 Digital codelock module CONNECTION TERMINALS SIGNALS CLEANING OF THE PLATE Use a clean and soft cloth. Use moderate warm water or non-ag- SW2 Relay 2 command signal (active low) gressive cleansers. SW1 Relay 1 command signal (active low) Do not use: NC3 Relay 3 normally closed contact •...
  • Page 21 ESVK/6286 Series “2 wire Bus” videokit 4000 Series Surface and ush mounting door station installation EXAMPLE: INSTALLING A FOUR MODULE OUTDOOR STATION g. 1 g. 2 g. 3 g. 4 g. 5 g. 6 g. 7 g. 8 g. 9 g.
  • Page 22 ESVK/6286 Series “2 wire Bus” videokit 4000 Series Surface and ush mounting door station installation INSTALLING A SURFACE MOUNT DOOR STATION 1. Place the surface box against the wall (165-170cm between the top of the box and the oor level as shown in Fig. 1) and mark the xing holes for the wall plugs and the hole for the cables ( g.

  • Page 23: Push Buttons

    ESVK/6286 Series “2 wire Bus” videokit Art. 6286 3.5" colour display videophone R01A 27 mm 144 mm PT3 PT2 Fig. 1 Front Fig. 2 Back DESCRIPTION LEGEND An intelligent Videophone using 3.5” full colour active matrix Connection terminals LCD monitor for VX2300. Including 4 buttons “service”, “privacy/ Bus termination switch bus relay activation”, “door-open/intercommunicating call”...

  • Page 24: Melody Selection

    ESVK/6286 Series “2 wire Bus” videokit Art. 6286 3.5" colour display videophone LEDS CONTROLS Call tone volume control Privacy on LED (3 levels). It illuminates when the privacy service is enabled. Brightness control Generic use LED (sliding wheel). It is controlled from the terminals +DOL and –DOL. Nor- Colour intensity control trimmer mally used to signal the door status (open or closed).
  • Page 25 ESVK/6286 Series “2 wire Bus” videokit Art. 6286 3.5" colour display videophone VIDEOPHONE ADDRESS SW1.1..7 The table below shows how to set the address of the videophone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then sum values obtained to get the address: E.g. as highlighted in 1 2 3 4 5 6 7 the table OFF, ON, OFF, OFF, ON, OFF, ON in binary is equal to 0100101 then multiplying each digit for the rele- SW1.1..7...

  • Page 26: Specification

    ESVK/6286 Series “2 wire Bus” videokit Art. 6286 3.5" colour display videophone CONNECTION TERMINALS SIGNALS SPECIFICATION Housing/Mounting: 6200 Series Videophones / surface BUS1 Bus input mount BUS2 Bus input Push buttons: Yes, 4 Ground Programming: Yes, carried out by the buttons and +12Vdc power supply input (Art.
  • Page 27 ESVK/6286 Series “2 wire Bus” videokit 6200 Series Videophone wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 5 Fig. 4 Fig. 6 Fig. 7 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: rstly disconnect the handset from the videophone (by removing its plug from the videophone) then insert a 5.5mm at screw driv- er into the clip then rotate clockwise until you listen a “CLICK!”.

  • Page 28: Power Supplies

    ESVK/6286 Series “2 wire Bus” videokit Art. 2321-2321/P Power supplies Art.2321 157,5 Fig. 1 Fig. 2 DESCRIPTION CONNECTION TO MAINS These two power supplies are speci cally designed for VX2300 digital system. WARNING! The Art. 2321 can be used for systems with 1 entrance up to 20 users. The system must be installed only by a quali ed eletrician Art.

  • Page 29: Power Supply Converter From Bus Line To 12 Vdc

    ESVK/6286 Series “2 wire Bus” videokit Art. 2322 Power supply converter from BUS line to 12 Vdc Art.2322 Fig. 1 Fig. 2 DESCRITPION LEGEND When this unit is connected to the BUS line it generates a Connection terminals +12Vdc – 100mA power source. This unit can be used to supply peripherals such as the Art.

  • Page 30: Push Button Configuration

    4, 6, 8 or 10 call push buttons. guration jumpers Name plate holders J2 and J1 jumpers to con- Speci c for use in combination with VIDEX IP camera units Right side push button Art. 4533, VX2200 camera units Art. 4284 and VX2300 camera gure illumination LEDs con guration jumpers units Art.
  • Page 31 ESVK/6286 Series “2 wire Bus” videokit Art. 4042 .. 4045 Single row button expansion modules Art. 4042D .. 4045D Double row button expansion modules POWER SUPPLY To give power supply to the module connect one of the inbuilt IDC male connector to the IDC male connector of the camera unit module through the...
  • Page 32 ESVK/6286 Series “2 wire Bus” videokit Art. 4042 .. 4045 Single row button expansion modules Art. 4042D .. 4045D Double row button expansion modules ADHESIVE GASKET PLACEMENT Apply the seal as shown in Fig. 6. ANTI TAMPERING LOCKS FIXING Fit the anti-tampering locks as shown in Fig.
  • Page 33 Foglio ESVK-1/6286, ESVK-1S/6286 One Way Videokit 09/06/2020 Titolo: Data modifica: ESVK-1/6286, ESVK-1S/6286 Videokit Monofamiliare 27/10/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-62h-001.dwg...
  • Page 34 Foglio ESVK-2/6286, ESVK-2S/6286 One Way Videokit 09/06/2020 Titolo: Data modifica: ESVK-2/6286, ESVK-2S/6286 Videokit Monofamiliare 27/10/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-62h-002.dwg...
  • Page 35 Foglio ESVKC-1/6286, ESVKC-1S/6286 One Way Videokit 09/06/2020 Titolo: Data modifica: ESVKC-1/6286, ESVKC-1S/6286 Videokit Monofamiliare 27/10/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-62h-003.dwg...
  • Page 36 Foglio ESVKC-2/6286, ESVKC-2S/6286 Two Way Videokit 09/06/2020 Titolo: Data modifica: ESVKC-2/6286, ESVKC-2S/6286 Videokit Bifamiliare 27/10/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-62h-004.dwg...
  • Page 37 09/06/2020 Titolo: Data modifica: ESVK-1/6286, ESVK-1S/6286 Videokit Monofamiliare con citofono addizionale, relé per l'estensione della suoneria, relé per due servizi addizionali e telecamera esterna 27/10/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File:...
  • Page 38 To next To next Title: Data creazione: Foglio 09/06/2020 Titolo: Data modifica: 09/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 404x.dwg - 38 - 66550032-EN - V6.2 - 31/10/20...
  • Page 39 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
  • Page 40 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
